71227 (16-38 HXL) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) GEAR ASSEMBLY Parts Diagram

Lawn Tractor

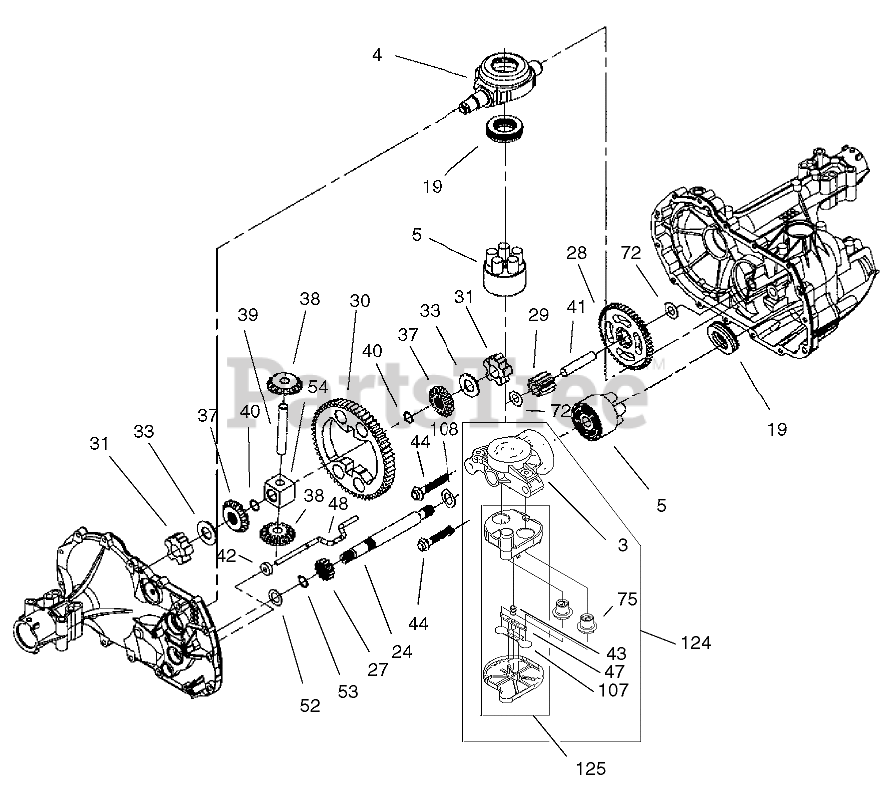

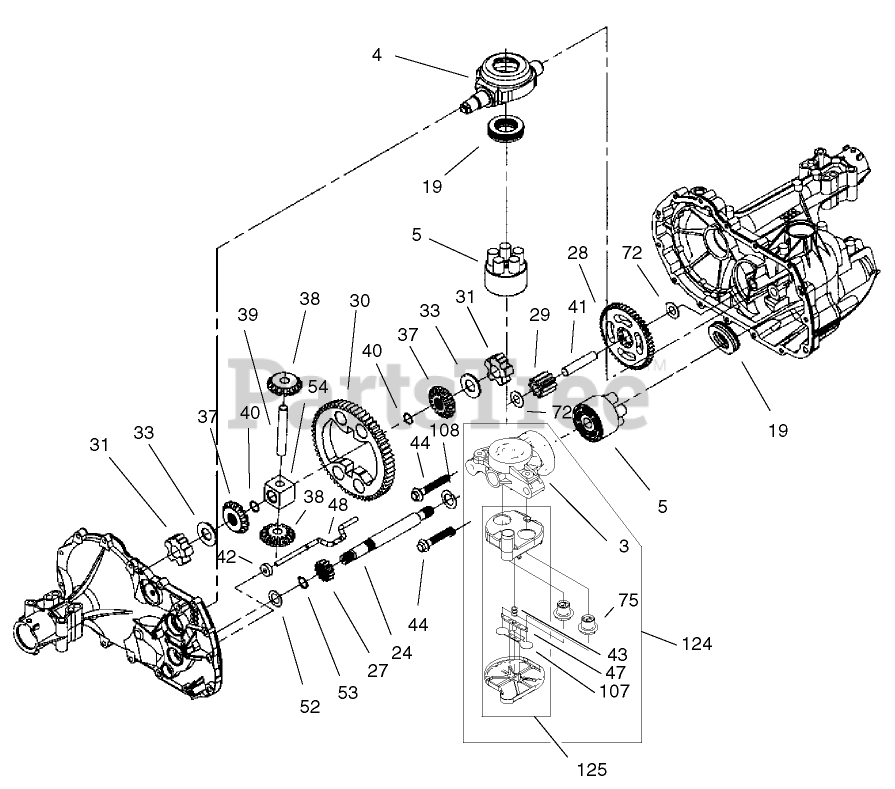

GEAR ASSEMBLY Parts Diagram

  • Title

3

Toro 104-5303

CENTER SECTION ASM

$540.99

$

Usually ships in 3-6 days

0

4

Toro 104-5304

SWASHPLATE-TRUNNION

$193.99

$

Usually ships in 3-6 days

0

5

Toro 104-2106

CYLINDER BLOCK ASM
(Superseded to 103-2666)

$488.99

$

Usually ships in 3-6 days

0

19

Toro 94-6922

BEARING-THRUST

$61.99

$

In Stock, only 3 left!

0

24

Toro 104-5315

Shaft-Motor

$227.99

$

Usually ships in 3-6 days

0

27

Toro 104-5316

GEAR-PINNION, 13T

$31.99

$

Usually ships in 3-6 days

0

28

Toro 104-5317

GEAR-10T/48T

$188.99

$

Usually ships in 3-6 days

0

29

Toro 104-5318

GEAR-JACKSHAFT, 10T

$85.99

$

Usually ships in 3-6 days

0

30

Toro 104-5319

GEAR-BULL 60T

$

$

Not available

31

Toro 104-5320

BEARING-SLEEVE

$34.99

$

Usually ships in 3-6 days

0

33

Toro 94-1943

WASHER

$5.99

$

Usually ships in 3-6 days

0

37

Toro 104-5325

GEAR-MITER

$

$

Not available

38

Toro 104-5326

GEAR-MITER 15T

$

$

Not available

39

Toro 104-5327

SHAFT

$

$

Not available

40

Toro 104-5328

RING-RETAINING, SPIRAL

$11.99

$

Usually ships in 3-6 days

0

41

Toro 104-5329

PIN-JACKSHAFT

$111.99

$

Usually ships in 3-6 days

0

42

Toro 104-5330

MAGNET-RING

$10.99

$

Usually ships in 3-6 days

0

43

Toro 104-5331

SPRING-BYPASS

$

$

Not available

44

Toro 94-6926

BOLT

$9.99

$

Usually ships in 3-6 days

0

47

Toro 104-5334

ACTUATOR-BYPASS

$

$

Not available

48

Toro 104-5335

ROD-ACTUATOR, BYPASS

$

$

Not available

52

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

53

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

54

Toro 104-5341

BEARING-BLOCK, CENTER

$76.99

$

Usually ships in 3-6 days

0

72

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

75

Toro 104-5348

CHECK PLUG ASM

$100.99

$

Usually ships in 3-6 days

0

107

Toro 104-5359

DEFLECTOR

$8.49

$

Usually ships in 3-6 days

0

108

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

124

Toro 106-6522

CENTER SECTION FILTER BYPASS ASM

$647.99

$

Usually ships in 3-6 days

0

125

Toro 106-6523

FILTER ASM

$123.99

$

Usually ships in 3-6 days

0

127

Toro 104-5368

SEAL KIT

Note: Not illustrated

$

$

Not available
