71227 (16-38 HXL) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

Lawn Tractor

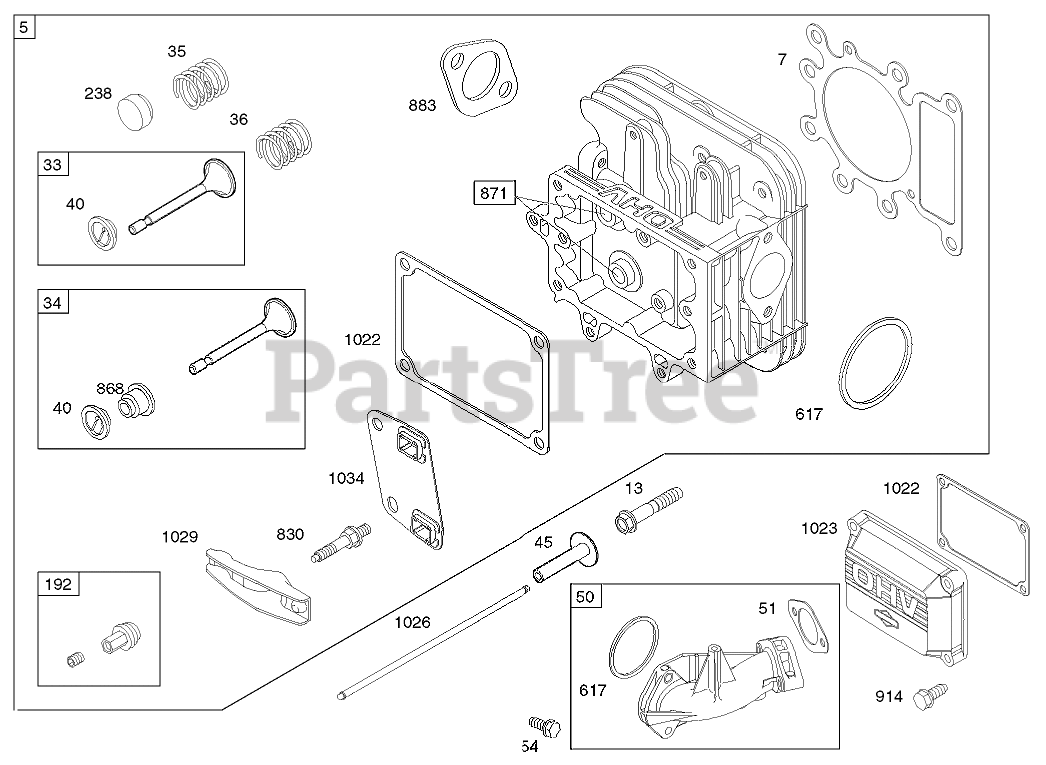

CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

  • Title

5

Briggs & Stratton 691165

Head-Cylinder
(Superseded to 796026)

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 273280

Gasket-Head, Cylinder
(Superseded to 273280S)

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 273280

Gasket-Head, Cylinder
(Superseded to 273280S)

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 690360

Screw
(Superseded to 84001963)

$3.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 495856

Valve-Exhaust
(Superseded to 792868)

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 495857

Valve-Intake
(Superseded to 791935)

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691279

Spring-Valve

$5.99

$

In Stock, Qty 10

0

36

Briggs & Stratton 691279

Spring-Valve

$5.99

$

In Stock, Qty 10

0

40

Briggs & Stratton 691752

Retainer-Valve
(Superseded to 499586)

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

Tappet-Valve

$9.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 690193

Manifold-Intake
(Superseded to 592842)

$43.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 691148

Screw

$3.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 691986

Adjustor-Arm, Rocker

$11.99

$

In Stock, Qty 20+

0

238

Briggs & Stratton 691843

Cap-Valve

$8.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 19

0

830

Briggs & Stratton 691095

Stud-Arm, Rocker

$7.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 20+

0

871

Toro 690969

Bushing-Valve Guide

$

$

Currently unavailable

883

Briggs & Stratton 692236

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

914

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 692492

Cover-Rocker
(Superseded to 797421)

$35.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 692003

Rod?Push

$7.99

$

In Stock, Qty 20+

0

Briggs & Stratton 692011

Rod?Push

$9.49

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 691751

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 690822

Guide-Rod, Push

$9.49

$

Usually ships in 2-12 days

0
