71227 (16-38 HXL) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

Lawn Tractor

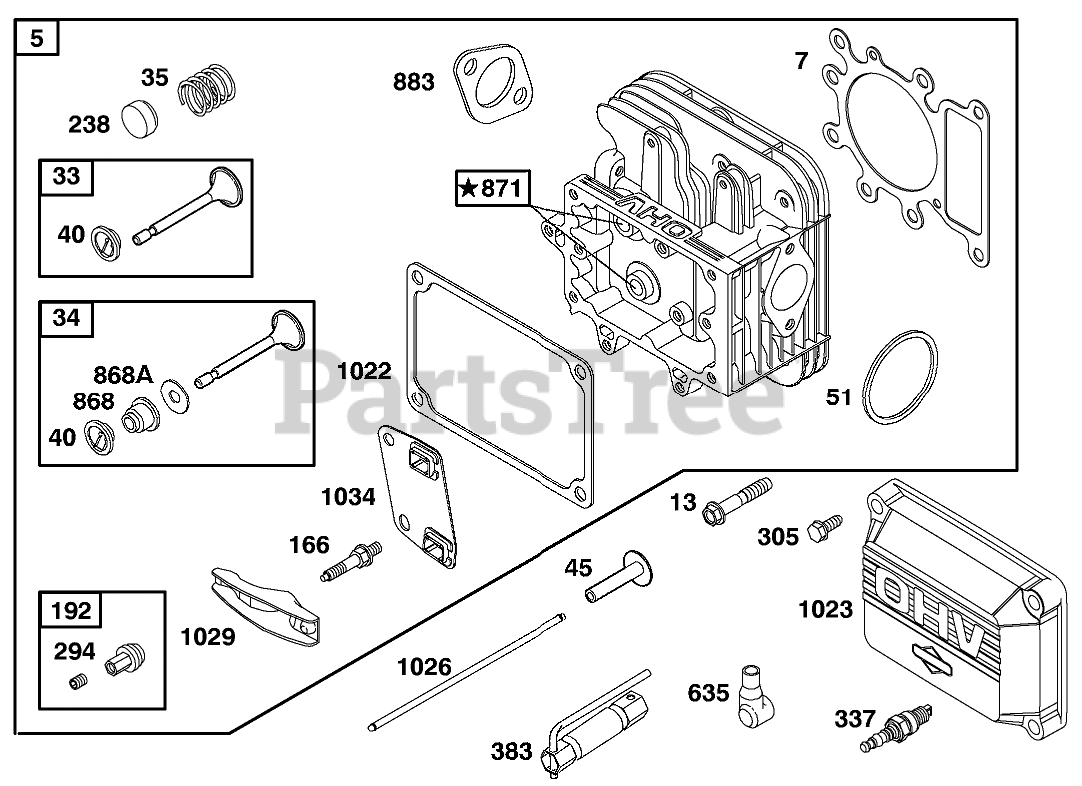

ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

  • Title

5

Briggs & Stratton 691165

Head-Cylinder
(Superseded to 796026)

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 273280

Gasket-Head, Cylinder
(Superseded to 273280S)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$10.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 273280

Gasket-Head, Cylinder
(Superseded to 273280S)

Note: Included in Gasket Set-Part No. 495993.

$10.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94728

Screw-Cylinder Head
(Superseded to 84001963)

$3.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 495856

Valve-Exhaust
(Superseded to 792868)

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 495857

Valve-Intake
(Superseded to 791935)

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262811

Spring-Valve
(Superseded to 691279)

$5.99

$

In Stock, Qty 10

0

40

Briggs & Stratton 224641

Retainer-Valve
(Superseded to 499586)

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

Tappet-Valve

$9.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692138

Seal-O Ring

$5.49

$

In Stock, Qty 19

0

166

Briggs & Stratton 94555

Stud-Rocker Arm
(Superseded to 691095)

$7.99

$

In Stock, Qty 20+

0

192

Briggs & Stratton 492160

Adjuster-Valve
(Superseded to 691986)

$11.99

$

In Stock, Qty 20+

0

238

Briggs & Stratton 262836

Cap-Valve
(Superseded to 691843)

$8.49

$

In Stock, Qty 20+

0

294

Briggs & Stratton 810104

INSTRUCTION SHEET
(Superseded to 691986)

$11.99

$

In Stock, Qty 20+

0

305

Briggs & Stratton 94682

Screw-Hex.
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

635

Briggs & Stratton 280872

Boot-Spark Plug
(Superseded to 691909)

$4.99

$

In Stock, Qty 6

0

868

Briggs & Stratton 499236

Seal-Valve
(Superseded to 690968)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 499236

Seal-Valve
(Superseded to 690968)

Note: Included in Gasket Set-Part No. 495993.

$10.99

$

In Stock, Qty 20+

0

868A

Briggs & Stratton 272610

Seal Valve
(Superseded to 690968)

$10.99

$

In Stock, Qty 20+

0

871

Toro 262835

Bushing-Guide (Intake and Exhaust)

$

$

Currently unavailable

883

Briggs & Stratton 272293

Exhaust Gasket
(Superseded to 692236)

Note: Included in Gasket Set-Part No. 495993.

$5.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 272293

Exhaust Gasket
(Superseded to 692236)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$5.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$6.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Gasket Set-Part No. 495993.

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 214314

Cover-Rocker
(Superseded to 797421)

$35.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 494432

Guide-Push Rod
(Superseded to 692003)

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 224554

Arm-Rocker
(Superseded to 691751)

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 495248

Guide-Push Rod
(Superseded to 690822)

$9.49

$

Usually ships in 2-12 days

0

1797

Briggs & Stratton 92278

Nut-Hex
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0
