71226 (16-38 XLE) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) 38IN DECK ASSEMBLY Parts Diagram

Lawn Tractor

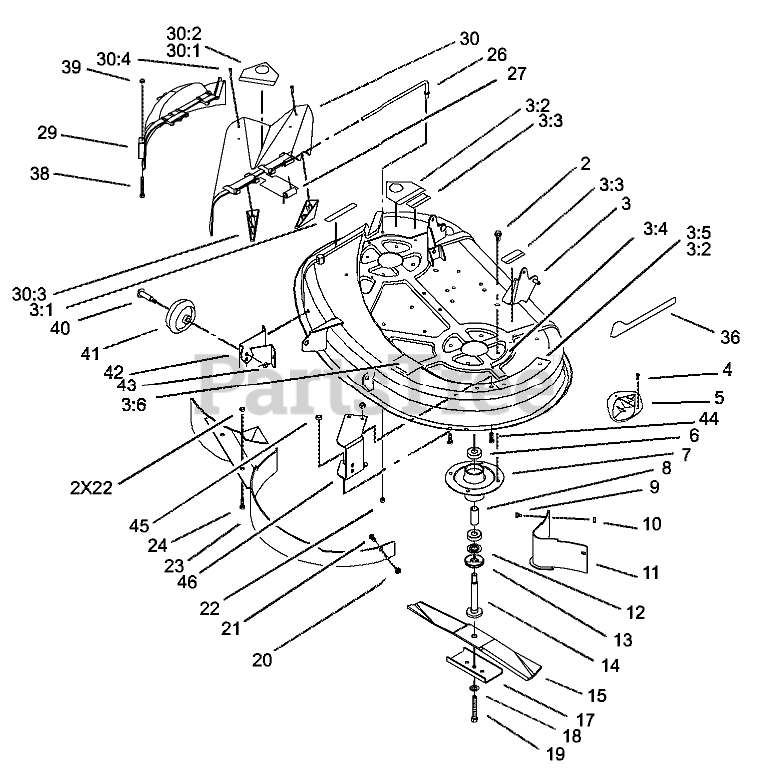

38IN DECK ASSEMBLY Parts Diagram

  • Title
2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

3

Toro 99-5846

Deck ASM (only on: 71223)

$1427.99

$

Usually ships in 3-6 days

0

3

Toro 99-5847

Deck ASM (only on: 71226)

$1427.99

$

Usually ships in 3-6 days

0

3:1

Toro 93-7009

Decal-Danger (only on: 71226)

$7.49

$

In Stock, Qty 20+

0

3:1

Toro 68-3650

Decal-Deflector Danger (only on: 71223)

$16.99

$

Usually ships in 3-6 days

0

3:2

Toro 93-1122

Decal-Danger (only on: 71223)

$9.99

$

In Stock, Qty 12

0

3:2

Toro 93-7010

Decal-Danger (only on: 71226)

$12.99

$

Usually ships in 3-6 days

0

3:3

Toro 55-4300

Decal-Warning (only on: 71223)

$14.99

$

Usually ships in 3-6 days

0

3:3

Toro 93-6674

Decal-Warning (only on: 71226)

$7.49

$

Usually ships in 3-6 days

0

3:4

Toro 93-6677

Decal-Shield, Danger (only on: 71226)

$

$

Not available

3:4

Toro 68-3660

Decal-Shield Danger (only on: 71223)

$12.99

$

In Stock, only 1 left!

0

3:5

Toro 79-3140

Decal-Danger (only on: 71223)

$19.99

$

Usually ships in 3-6 days

0

3:6

Toro 93-6679

DECAL-ROUTING, BELT
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

4

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

5

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

6

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

7

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 14

0

8

Toro 62-3661

SPACER

$16.99

$

In Stock, Qty 15

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 79-1640-03

BAFFLE ASM

$69.99

$

Usually ships in 3-6 days

0

12

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 20+

0

13

Toro 80-4360

SHIELD-BEARING

$20.99

$

In Stock, Qty 19

0

14

Toro 80-4341

SHAFT-SPINDLE

$50.99

$

In Stock, Qty 5

0

15

Toro 79-3061

Blade
(Superseded to 14-7799)

$71.99

$

In Stock, only 4 left!

0

17

Toro 80-0510-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 7

0

18

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 79-1600-03

BAFFLE ASM

$109.99

$

Usually ships in 3-6 days

0

24

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

26

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 3 left!

0

27

Toro 57-6950

SPRING

$27.99

$

In Stock, only 1 left!

0

29

Toro 88-4430

COVER-RECYCLER

$

$

Not available

30

Toro 93-7695

Deflector ASM (only on: 71226)

$95.99

$

In Stock, only 3 left!

0

30

Toro 93-0317

Deflector ASM (only on: 71223)

$84.99

$

In Stock, only 3 left!

0

30:1

Toro 93-7010

Decal-Danger (only on: 71226)

$12.99

$

Usually ships in 3-6 days

0

30:2

Toro 93-1122

Decal-Danger (only on: 71223)

$9.99

$

In Stock, Qty 12

0

30:3

Toro 93-7696

Kicker (only on: 71226)

$14.99

$

In Stock, only 3 left!

0

30:4

Toro 93-0231

Screw-PPH (only on: 71226)

$0.99

$

In Stock, Qty 20+

0

36

Toro 100-6203

DECAL-RECYCLER 38INCH

$

$

Not available

38

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

39

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

40

Toro 56-6591

Bolt-Wheel (only on: 71226)

$9.49

$

In Stock, only 3 left!

0

41

Toro 701756

Wheel-Gage (only on: 71226)

$8.49

$

In Stock, Qty 13

0

42

Toro 88-5740-03

Bracket-Wheel, RH (only on: 71226)

$45.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

Nut-Lock, NI (only on: 71226)

$2.99

$

In Stock, Qty 20+

0

44

Toro 322-3

Screw-HH (only on: 71226)

$0.99

$

In Stock, Qty 20+

0

45

Toro 3296-29

Nut-Lock, NI (only on: 71226)

$2.49

$

In Stock, Qty 20+

0

46

Toro 93-3896-03

Bracket-Wheel, LH (only on: 71226)

$68.99

$

Usually ships in 3-6 days

0
