71226 (16-38 XLE) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) PEERLESS TRANSAXLE MODEL MST 205-509 Parts Diagram

Lawn Tractor

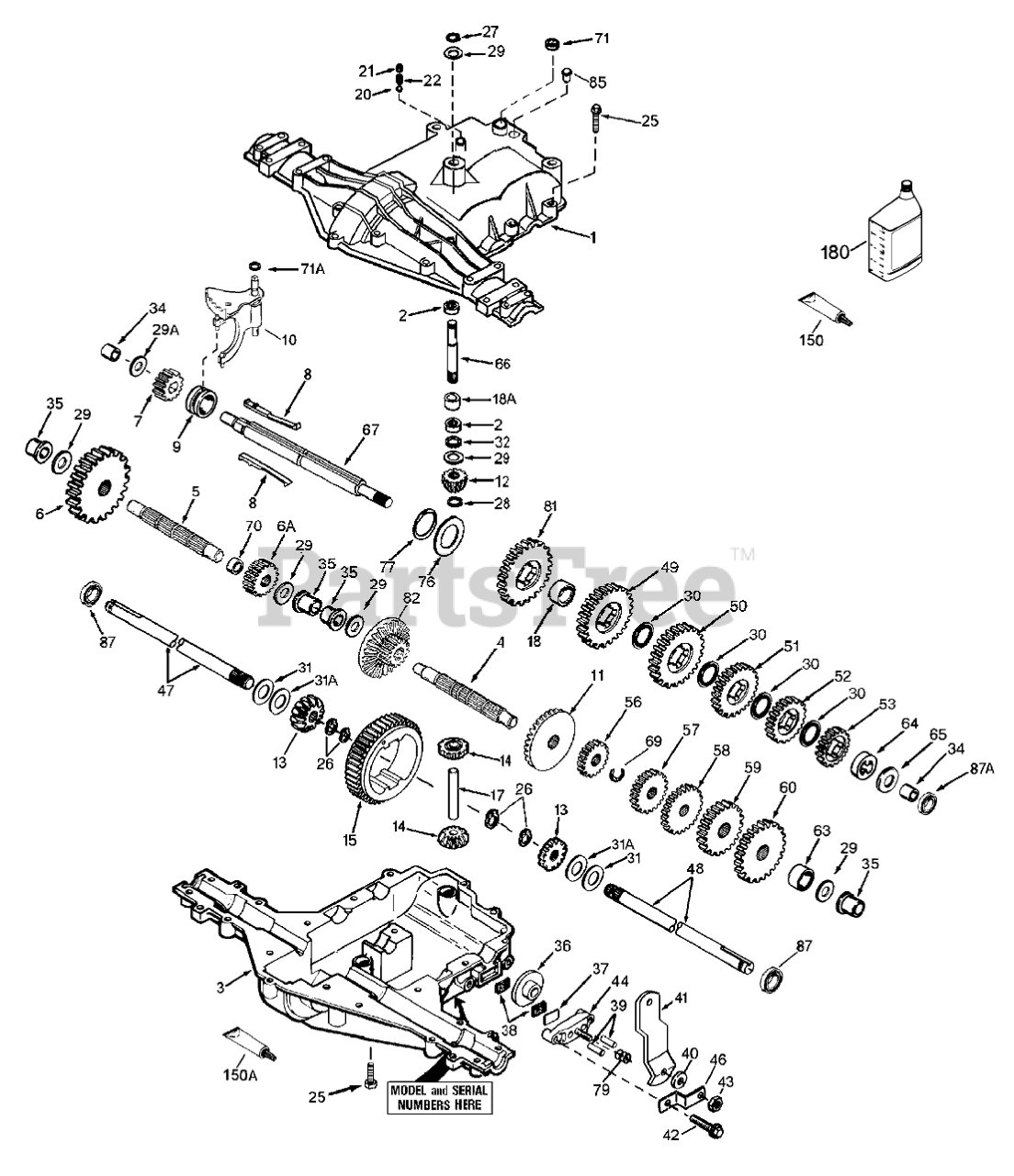

PEERLESS TRANSAXLE MODEL MST 205-509 Parts Diagram

  • Title

1

Toro 772137

Transaxle Cover

$

$

Currently unavailable

2

Toro 780086A

Bearing-Needle

$

$

Currently unavailable

3

Toro 770123

Transaxle Case

$

$

Currently unavailable

4

Toro 776395

Countershaft

$

$

Currently unavailable

5

Toro 776397

Output Shaft

$

$

Currently unavailable

6

Toro 778331

Spur Gear (38 teeth)

$

$

Currently unavailable

6A

Toro 778332

Spur Gear (15 teeth-steel)

$

$

Currently unavailable

7

Toro 778330

Spur Gear (11 teeth-steel)

$

$

Currently unavailable

8

Toro 792136A

Shift Key

$

$

Currently unavailable

9

Toro 784352

Shift Collar

$

$

Currently unavailable

10

Toro 784378

Shift Rod & Fork

$

$

Currently unavailable

11

Toro 778334

Bevel Gear (30 teeth)

$

$

Currently unavailable

12

Toro 778309

Input Bevel Pinion (13 teeth)

$

$

Currently unavailable

13

Toro 778327

Bevel Gear (16 teeth-steel)(Incl. 14)

$

$

Currently unavailable

14

Toro 778327

Bevel Gear (16 teeth-steel)(Incl. 13)

$

$

Currently unavailable

15

Toro 778312A

Ring Gear (43 teeth)

$

$

Currently unavailable

17

Toro 786139

Drive Pin

$

$

Currently unavailable

18

Toro 786102

Spacer

$

$

Currently unavailable

18A

Toro 786175

Spacer

$

$

Currently unavailable

20

Toro 792077

Ball-Steel

$

$

Currently unavailable

21

Toro 792078

Screw-Set

$

$

Currently unavailable

22

Toro 792079

Spring

$

$

Currently unavailable

25

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

26

Toro 792125

Retaining Ring (pkg of 2)

$

$

Currently unavailable

27

Toro 792035

Ring-Snap

$

$

Currently unavailable

28

Toro 788040

Ring-Retainer

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

29A

Toro 780160

Washer

$

$

Currently unavailable

30

Toro 780108

Washer

$

$

Currently unavailable

31

Toro 780001

Washer

$

$

Currently unavailable

31A

Toro 780195

Flat Washer (.062 wide)

$

$

Currently unavailable

32

Toro 788083

Oil Seal

$

$

Currently unavailable

34

Toro 780194

Bushing

$

$

Currently unavailable

35

Toro 780193

Flanged Bushing

$

$

Currently unavailable

36

Toro 790075

Brake Disk

$

$

Currently unavailable

37

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

38

Toro 799021

Pad-Brake 2/Pkg

$

$

Currently unavailable

39

Toro 786026

Dowel Pin

$

$

Currently unavailable

40

Toro 792076A

Washer

$

$

Currently unavailable

41

Toro 790080

Brake Lever

$

$

Currently unavailable

42

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

43

Toro 792075

Locknut

$

$

Currently unavailable

44

Toro 790025

Nozzle-Carburetor

$

$

Currently unavailable

46

Toro 786086

Bracket

$

$

Currently unavailable

47

Toro 774690

Axle (11-15/16" long)

$

$

Currently unavailable

48

Toro 774691

Axle (16-1/2" long)

$

$

Currently unavailable

49

Toro 778356

Spur Gear (29 teeth-steel)

$

$

Currently unavailable

50

Toro 778354

Spur Gear (23 teeth-steel)

$

$

Currently unavailable

51

Toro 778344

Spur Gear (20 teeth)

$

$

Currently unavailable

52

Toro 778350

Spur Gear (16 teeth-steel)

$

$

Currently unavailable

53

Toro 778346

Spur Gear (15 teeth-steel)

$

$

Currently unavailable

56

Toro 778355

Spur Gear (11 teeth-steel)

$

$

Currently unavailable

57

Toro 778353

Spur Gear (17 teeth-steel)

$

$

Currently unavailable

58

Toro 778343

Spur Gear (20 teeth)

$

$

Currently unavailable

59

Toro 778349

Spur Gear (24 teeth-steel)

$

$

Currently unavailable

60

Toro 778345

Spur Gear (25 teeth)

$

$

Currently unavailable

63

Toro 786071

Spacer

$

$

Currently unavailable

64

Toro 786072

Spacer

$

$

Currently unavailable

65

Toro 780189

Washer

$

$

Currently unavailable

66

Toro 776394

Input Shaft

$

$

Currently unavailable

67

Toro 776396

Shifter & Brake Shaft

$

$

Currently unavailable

69

Toro 792170

Retaining Ring

$

$

Currently unavailable

70

Toro 786172

Spacer

$

$

Currently unavailable

71

Toro 788069

Cut Seal-Square

$

$

Currently unavailable

71A

Toro 788092

"O" Ring

$

$

Currently unavailable

76

Toro 780090

Washer

$

$

Currently unavailable

77

Toro 788078A

Inverted Retaining Ring

$

$

Currently unavailable

79

Toro 792144

Piston ASM (.020 O S)

$

$

Currently unavailable

81

Toro 778338

Spur Gear (27 Teeth)

$

$

Currently unavailable

82

Toro 778333

Bevel & Spur Gear (30 & 13 teeth)

$

$

Currently unavailable

85

Toro 792154

Pipe Plug

$

$

Currently unavailable

87

Toro 788088

Oil Seal

$

$

Currently unavailable

87A

Toro 788089

Oil Seal

$

$

Currently unavailable

150

Toro 788093

Liquid Gasket RTV Silicone

$

$

Currently unavailable

150A

Toro 788094

Liquid Gasket Loctite #242

$

$

Currently unavailable

180

Toro 730229A

Gear Oil

$

$

Currently unavailable
