71225 (16-38 HXL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

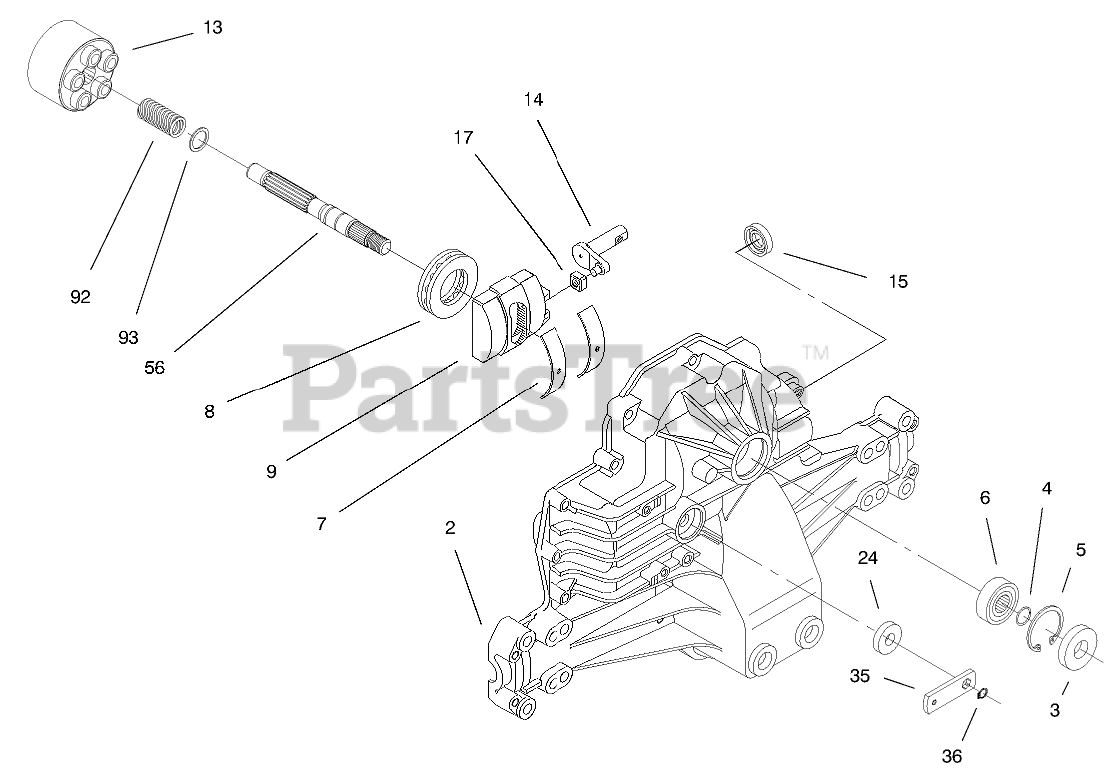

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title

2

Toro 94-1948

ASM - HOUSING UPPER

$1216.99

$

Usually ships in 3-6 days

0

3

Toro 92-6543

SEAL-LIP

$21.99

$

Usually ships in 3-6 days

0

4

Toro 94-1902

RING-WIRE, RETAINING

$6.99

$

Usually ships in 3-6 days

0

5

Toro 94-1903

RING-RETAINING

$

$

Not available

6

Toro 94-1904

BEARING-SHAFT, BALL

$145.99

$

Usually ships in 3-6 days

0

7

Toro 94-1905

BEARING-CRADLE

$

$

Not available

8

Toro 94-6922

BEARING-THRUST

$66.99

$

In Stock, only 2 left!

0

9

Toro 94-1907

SWASHPLATE-VARIABLE

$548.99

$

Usually ships in 3-6 days

0

13

Toro 94-1908

BLOCK - CYCLINDER ASM
(Superseded to 103-2666)

$546.99

$

Usually ships in 3-6 days

0

14

Toro 94-1909

ARM-TRUNION

$

$

Not available

15

Toro 92-6544

SEAL-LIP

$

$

Not available

17

Toro 94-1910

GUIDE-SLOT

$22.99

$

Usually ships in 3-6 days

0

24

Toro 92-6545

SEAL-LIP

$18.99

$

Usually ships in 3-6 days

0

35

Toro 92-6547

ARM - BYPASS

$

$

Not available

36

Toro 936109

RING-RETAINING

$

$

Not available

56

Toro 94-1925

SHAFT - INPUT

$

$

Not available

92

Toro 94-1936

SPRING-BLOCK

$8.99

$

Usually ships in 3-6 days

0

93

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0
