71225 (16-38 HXL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) HOOD & TOWER ASSEMBLY Parts Diagram

Lawn Tractor

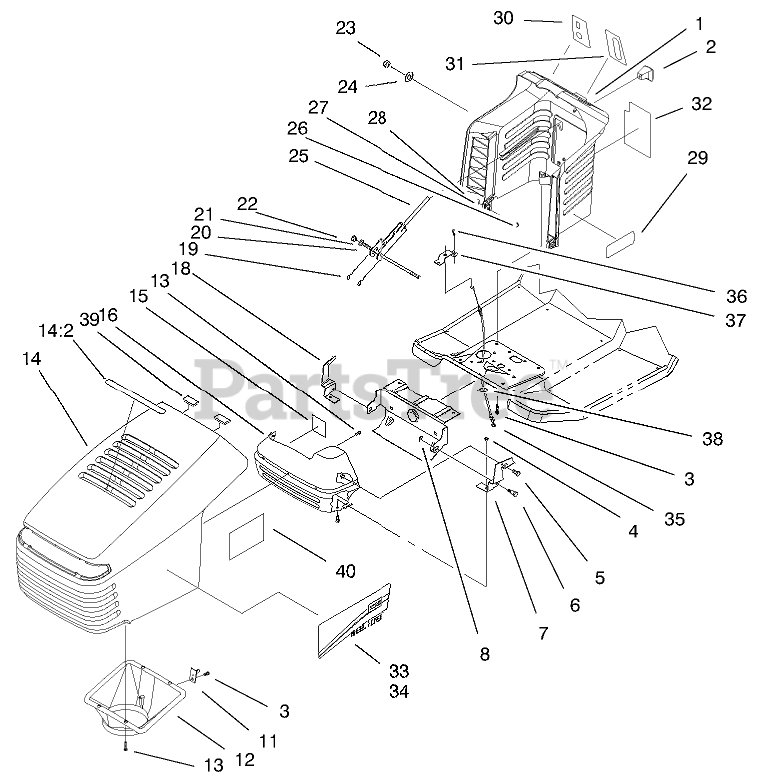

HOOD & TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-1947

TOWER-STEERING

$479.99

$

Usually ships in 3-6 days

0

2

Toro 94-5565

KNOB-SHIFT

$14.99

$

In Stock, only 1 left!

0

3

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

7

Toro 88-6050-03

BRACKET-PIVOT, LH HOOD

$

$

Not available

8

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

11

Toro 94-1984

LATCH-PIN

$6.49

$

Usually ships in 3-6 days

0

12

Toro 93-3891

DUCT-AIR, HOOD

$46.99

$

Usually ships in 3-6 days

0

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 93-3819

HOOD-W/DECAL, TORO
(Superseded to 92-8650)

$

$

Not available

14:2

Toro 92-5748

DECAL-AIR DUCT

$35.99

$

In Stock, only 1 left!

0

15

Toro 92-5782

TAPE-FOIL

$0.99

$

Usually ships in 3-6 days

0

16

Toro 93-3864-03

SHIELD-HEAT

$

$

Not available

18

Toro 88-6040-03

BRACKET-PIVOT, RH HOOD

$11.99

$

In Stock, only 1 left!

0

19

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

20

Toro 100-7401

ROD-TOWER, PIVOT

$18.99

$

In Stock, only 2 left!

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

23

Toro 100-7402

NUT-CAP

$14.99

$

In Stock, only 2 left!

0

24

Toro 100-7403

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

25

Toro 88-5190-03

LEVER-DECK, ENGAGE

$

$

Not available

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 100-6248

DECAL 38 HXL

$

$

Not available

30

Toro 99-8141

Decal-Ignition/Lights (only on: 71241)

$

$

Not available

30

Toro 99-8139

Decal-Ignition/Lights (only on: 71225)

$14.99

$

In Stock, only 1 left!

0

31

Toro 92-5730

Decal-Throttle (only on: 71241)

$

$

Not available

31

Toro 92-2461

Decal-Throttle (only on: 71225)

$11.99

$

In Stock, only 1 left!

0

32

Toro 92-2462

Decal-Deck Engage (only on: 71225)

$

$

Not available

32

Toro 93-6673

Decal-Deck Engage (only on: 71241)

$18.99

$

Usually ships in 3-6 days

0

33

Toro 95-0808

DECAL-HOOD, LEFT

$39.99

$

Usually ships in 3-6 days

0

34

Toro 95-0807

DECAL-HOOD, RIGHT

$

$

Not available

35

Toro 99-6837

DECK CABLE ASM

$29.99

$

In Stock, only 1 left!

0

36

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

37

Toro 93-3849

BRACKET-CABLE, UPPER

$16.99

$

Usually ships in 3-6 days

0

38

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

39

Toro 94-1980

FOAM-HOOD

$3.49

$

Usually ships in 3-6 days

0

40

Toro 100-6222

Decal-Service, 71225 (only on: 71225)

$

$

Not available
