71225 (16-38 HXL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

Lawn Tractor

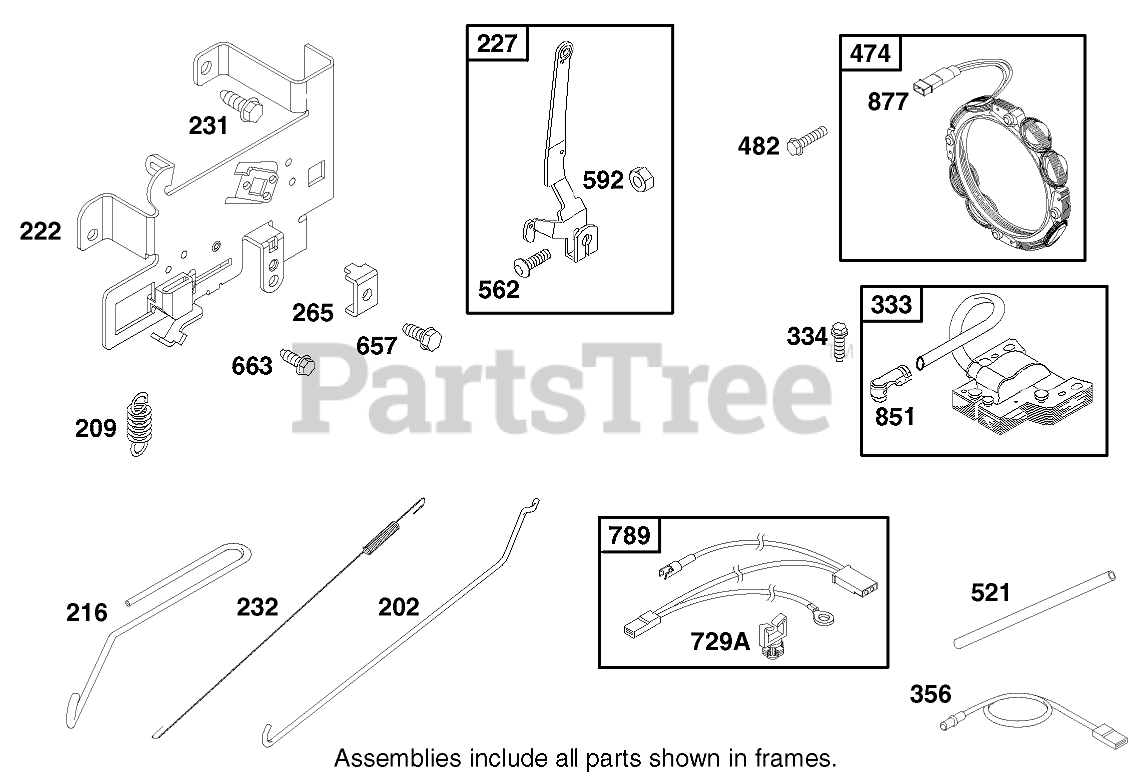

ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

  • Title
202

Briggs & Stratton 262767

Choke Link
(Superseded to 691841)

$9.49

$

In Stock, Qty 13

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 262766

Link-Choke
(Superseded to 691840)

$8.99

$

In Stock, Qty 19

0

222

Briggs & Stratton 495611

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, only 2 left!

0

231

Briggs & Stratton 94929

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 495859

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 494705

Wire Stop
(Superseded to 690807)

$

$

Not available

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

521

Briggs & Stratton 272699

Shield-Cable
(Superseded to 690581)

$12.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 94907

Bolt-Carriage
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

592

Briggs & Stratton 231978

Nut-Hex
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

657

Briggs & Stratton 94906

Screw-Sem
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94929

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

729A

Briggs & Stratton 281390

Clip-Wire
(Superseded to 691335)

$4.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 692037

Wiring-Harness

$35.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 224110

Cable Terminal
(Superseded to 692424)

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0
