71223 (16-38 XL) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

Lawn Tractor

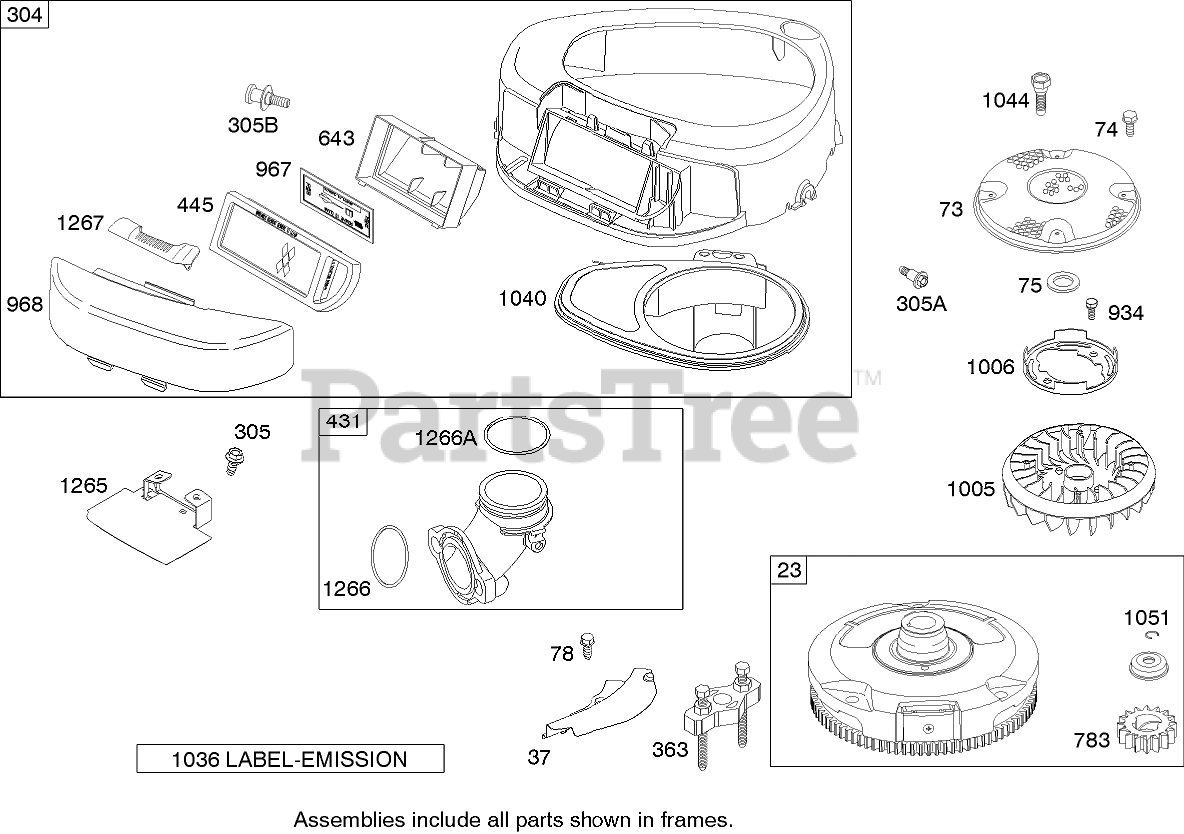

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

  • Title
23

Briggs & Stratton 693557

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

37

Briggs & Stratton 697108

Guard?Flywheel

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 697133

Screen-Rotating

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

74

Briggs & Stratton 690661

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

75

Briggs & Stratton 690582

Washer-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 690661

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

304

Briggs & Stratton 697137

Housing-Blower
(Superseded to 698804)

Note: Obtain parts from www.briggsandstratton.com

$126.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

305B

Briggs & Stratton 697103

Screw
(Superseded to 799370)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

431

Briggs & Stratton 697122

Elbow-Intake

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 697014

Filter-Air Cleaner Cartridge
(Superseded to 794422)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, Qty 20+

0

643

Briggs & Stratton 697155

Retainer-Air Filter

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

967

Briggs & Stratton 697015

Filter-Cleaner, Pre

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

968

Briggs & Stratton 697084

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 691058

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 11

0

1005

Briggs & Stratton 697111

Fan?Flywheel

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 695700

Label?Emission

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1040

Toro 697142

Plate-Trim

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1044

Briggs & Stratton 691658

Screw-Crankshaft Extension
(Superseded to 698139)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1265

Briggs & Stratton 697125

Support?Housing, Blower

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 19

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 19

0

1267

Briggs & Stratton 697135

Latch-Blower Housing
(Superseded to 697662)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0
