71223 (16-38 XL) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor

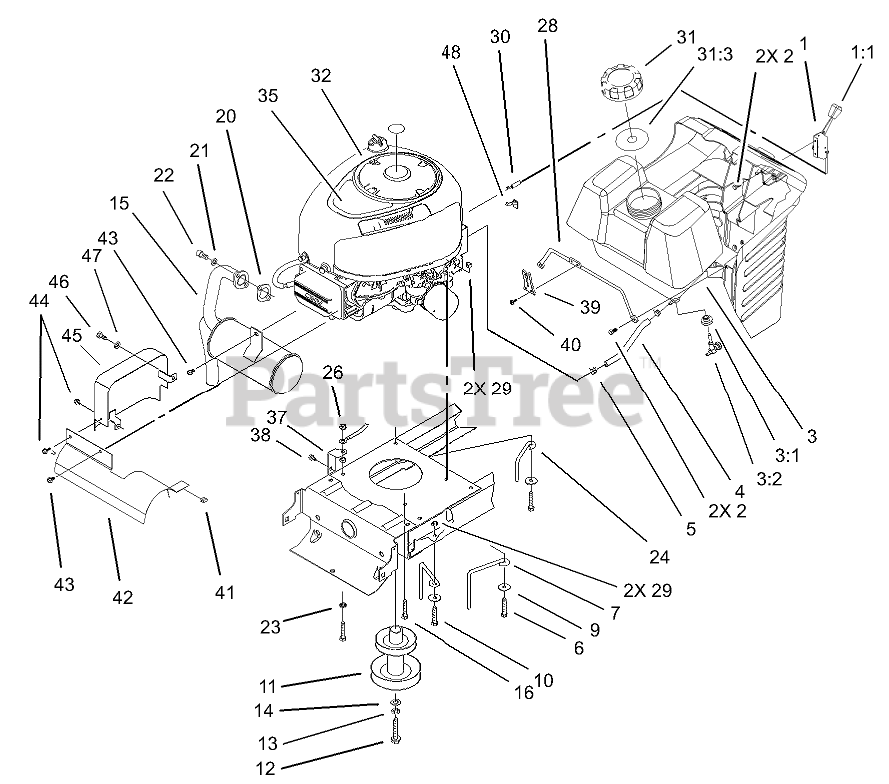

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 88-4340

THROTTLE CONTROL ASM

$42.99

$

Usually ships in 3-6 days

0

1:1

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

2

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

3

Toro 88-3880

GAS TANK ASM

$224.99

$

In Stock, only 1 left!

0

3:1

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

3:2

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

4

Toro 47-2963

HOSE-FUEL
(Superseded to 107-9297)

$7.99

$

In Stock, only 2 left!

0

5

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

6

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

7

Toro 93-3854

GUIDE-BELT, ENGINE

$15.99

$

Usually ships in 3-6 days

0

9

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 94-1963

PULLEY-ENGINE ASM

$190.99

$

Usually ships in 3-6 days

0

12

Toro 62-3760

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

14

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 94-1953

MUFFLER-EXHAUST

$

$

Not available

16

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

20

Toro 88-4410

GASKET-EXHAUST

$19.99

$

In Stock, Qty 6

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

23

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

24

Toro 93-3855

GUIDE-BELT, RH

$15.99

$

Usually ships in 3-6 days

0

26

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

28

Toro 94-1952

ROD-TANK, GAS

$40.99

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 88-4350

THROTTLE CABLE ASM

$29.99

$

In Stock, only 2 left!

0

31

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

31:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

32

Engine-16 HP Intec Briggs And Stratton Model No. 286h77-0121-E1

Note: Not serviced separately

$

$

Not available

35

Toro 106-6409

DECAL-ENGINE

$

$

Not available

37

Toro 93-3809

BRACKET-GROUND

$

$

Not available

38

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

39

Toro 94-1951

LATCH-HOOD

$8.99

$

Usually ships in 3-6 days

0

40

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

41

Toro 93-3882

CLIP-TINNERMAN

$

$

Not available

42

Toro 93-3880-03

SHIELD-MUFFLER

$

$

Not available

43

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

44

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

45

Toro 93-8450-03

HEAT SHIELD ASM

$116.99

$

Usually ships in 3-6 days

0

46

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

47

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Toro 88-4490

Reducer-Throttle, Rpm (only on: 71226)

$19.99

$

Usually ships in 3-6 days

0
