71223 (16-38 XL) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) CYLINDER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

Lawn Tractor

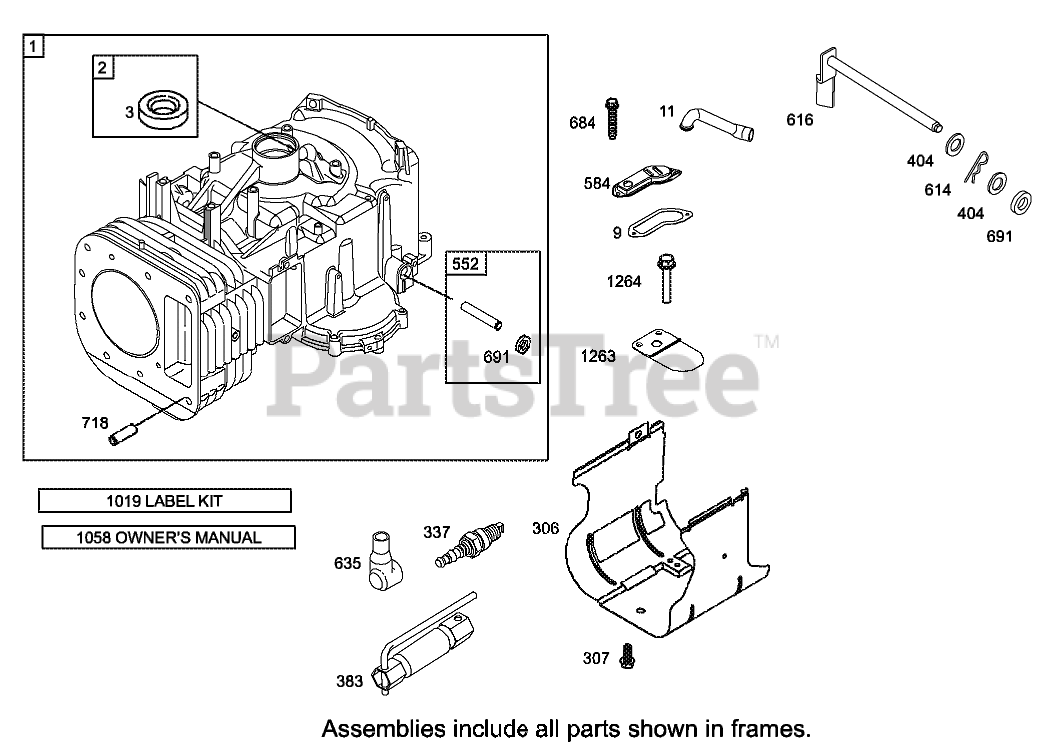

CYLINDER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

  • Title

1

Briggs & Stratton 697132

Cylinder ASM
(Superseded to 794087)

$425.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 697113

Tube-Breather
(Superseded to 794683)

$7.99

$

In Stock, Qty 20+

0

306

Briggs & Stratton 697107

Shield-Cylinder

$55.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

Screw

$3.49

$

In Stock, Qty 9

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

404

Briggs & Stratton 691691

Washer

$3.99

$

In Stock, Qty 5

0

552

Briggs & Stratton 697144

Bushing-Crank, Governor

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 697112

Cover-Passage, Breather
(Superseded to 794682)

$9.49

$

In Stock, Qty 6

0

614

Briggs & Stratton 691620

Pin-Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

Crank-Governor

$13.99

$

In Stock, only 2 left!

0

635

Briggs & Stratton 691909

Boot-Spark Plug

$4.99

$

In Stock, Qty 5

0

684

Briggs & Stratton 697157

Screw

$3.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

Pin-Locating

$6.99

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 697143

Label Kit
(Superseded to 699459)

$36.99

$

Usually ships in 2-12 days

0

1058

Toro 275038

Owner?s Manual

$

$

Currently unavailable

1263

Briggs & Stratton 697124

Reed-Breather

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 697104

Screw

$3.99

$

Usually ships in 2-12 days

0
