71223 (16-38 XL) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) CRANKSHAFT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

Lawn Tractor

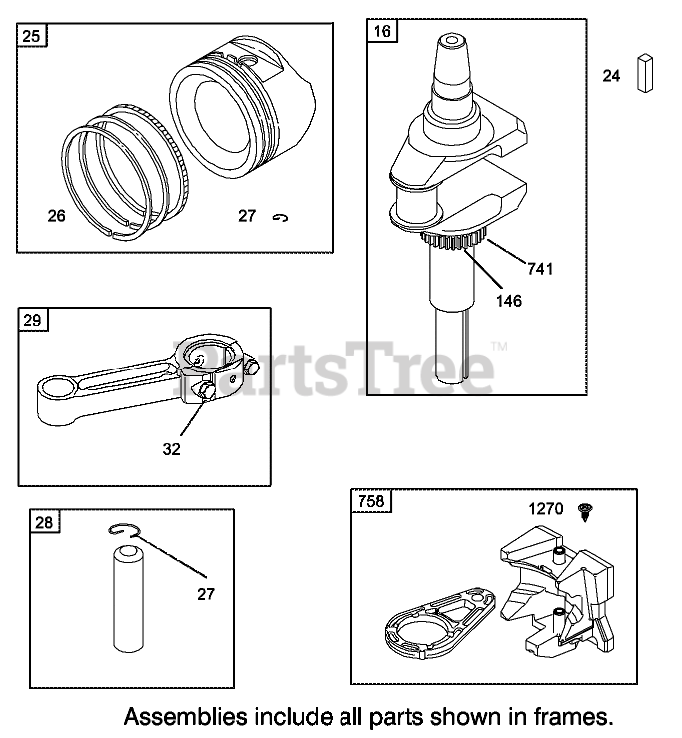

CRANKSHAFT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

  • Title

16

Briggs & Stratton 697127

Crankshaft
(Superseded to 595339)

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 697114

Piston ASM (Standard)
(Superseded to 792307)

$172.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697116

Piston Assembly (.010in Oversize)

$75.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697117

Piston ASM (.020in Oversize)
(Superseded to 792728)

$278.99

$

Usually ships in 2-12 days

0

Toro 697118

Piston Assembly (.030in Oversize)

$

$

Currently unavailable

26

Briggs & Stratton 697115

Ring Set (Standard)

$56.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697119

Ring Set (.010" Oversize)

$38.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697120

Ring Set (.020in Oversize)

$255.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697121

Ring Set (.030" Oversize)

$50.99

$

In Stock, only 1 left!

0

27

Toro 697199

Lock-Piston Pin

$

$

Currently unavailable

28

Briggs & Stratton 697099

Pin-Piston (Std)

$13.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 697126

Rod?Connecting (Standard)
(Superseded to 794122)

$78.99

$

In Stock, only 1 left!

0

Briggs & Stratton 697264

Rod-Connecting (.020in Undersize)

$56.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

$4.99

$

In Stock, only 4 left!

0

146

Briggs & Stratton 690979

Key-Timing

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 697128

Gear-Timing

$20.99

$

In Stock, only 1 left!

0

758

Briggs & Stratton 697134

Counterweight
(Superseded to 793763)

$128.99

$

Usually ships in 2-12 days

0

1270

Briggs & Stratton 697156

Plug-Counterweight, AVS
(Superseded to 793243)

$4.99

$

In Stock, Qty 7

0
