71223 (16-38 XL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

Lawn Tractor

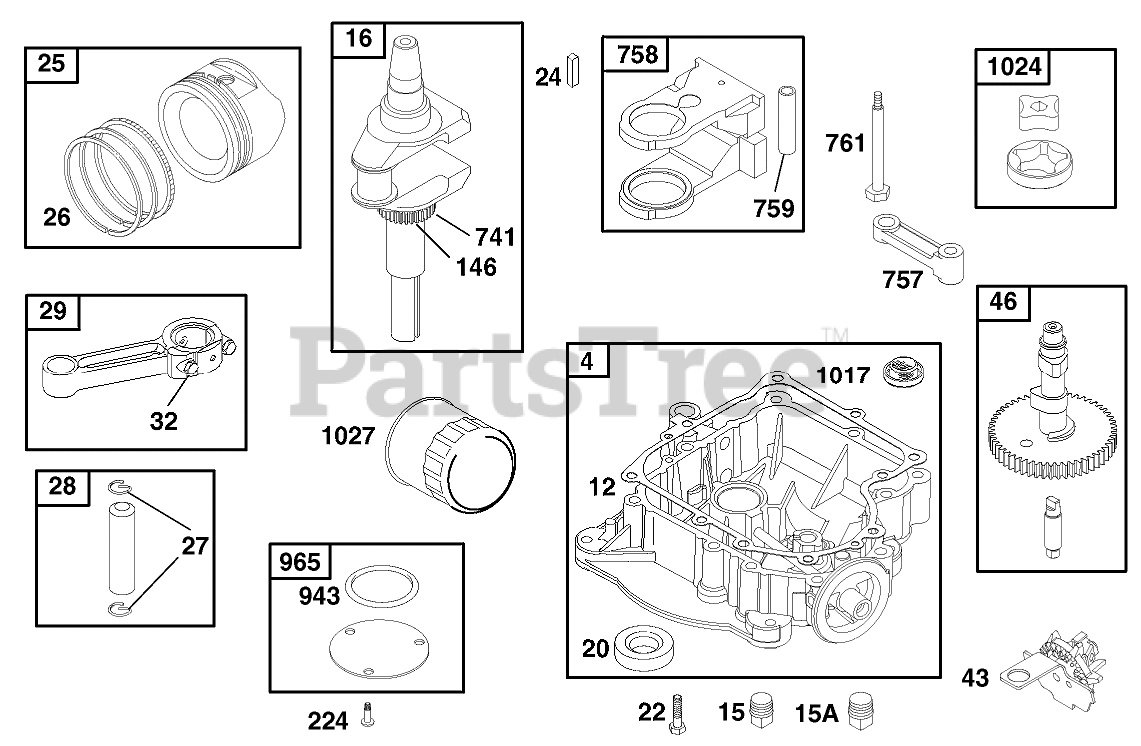

ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

  • Title

4

Briggs & Stratton 693582

EngineSump

$288.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Gasket Set-Part No. 495993.

$6.99

$

In Stock, Qty 5

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Gasket Set-Part No. 495993.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Gasket Set-Part No. 495993.

$6.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

15A

Briggs & Stratton 91488

Plug-Oil
(Superseded to 794903)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 690136

Crankshaft

$

$

Not available

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Gasket Set-Part No. 495993.

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

Screw

$4.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499284

Piston ASM (Std.)

$

$

Not available

Briggs & Stratton 499288

Piston ASM (.010" O.S.)

$

$

Not available

Briggs & Stratton 499292

Piston ASM (.020" O.S.)

$

$

Not available

Briggs & Stratton 499296

Piston ASM (.030" O.

$

$

Not available

26

Briggs & Stratton 495854

Ring Set (Std.)

$79.99

$

In Stock, Qty 5

0

Briggs & Stratton 495852

Ring Set (.010" O.S.)

$

$

Not available

Briggs & Stratton 495851

Ring Set (.020" O.S.)

$64.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 495855

Rind Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 263129

Lock-Piston Pin
(Superseded to 691299)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston (Std.)

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 498320

Pin-Piston (.005 O.S.)

$

$

Not available

29

Briggs & Stratton 692419

Connecting Rod (Std)

$149.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

$4.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton 490815

Gear-Governor
(Superseded to 691968)

$37.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 693450

Camshaft
(Superseded to 793880)

$104.99

$

In Stock, Qty 20+

0

146

Briggs & Stratton 94196

Key-Timing
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

224

Briggs & Stratton 691033

Screw
(Superseded to 790832)

$4.49

$

In Stock, only 2 left!

0

741

Briggs & Stratton 262932

Gear-Elming
(Superseded to 691284)

$

$

Not available

757

Briggs & Stratton 213998

Link-Counteweight
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 499994

Counterweight
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 230787

Pin-Counterweight
(Superseded to 691239)

$8.99

$

In Stock, only 1 left!

0

761

Briggs & Stratton 94593

Screw-HH
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

943

Briggs & Stratton 280801

O-Ring Seal
(Superseded to 690589)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

$13.99

$

In Stock, Qty 8

0

1017

Briggs & Stratton 491722

Screen-Oil Pump
(Superseded to 690770)

$

$

Not available

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

$35.99

$

In Stock, only 1 left!

0

1027

Briggs & Stratton 492932

Filter-Oil
(Superseded to 492932S)

$12.99

$

In Stock, Qty 20+

0
