71220 (14-38 XL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) SHIFTING COMPONENTS Parts Diagram

Lawn Tractor

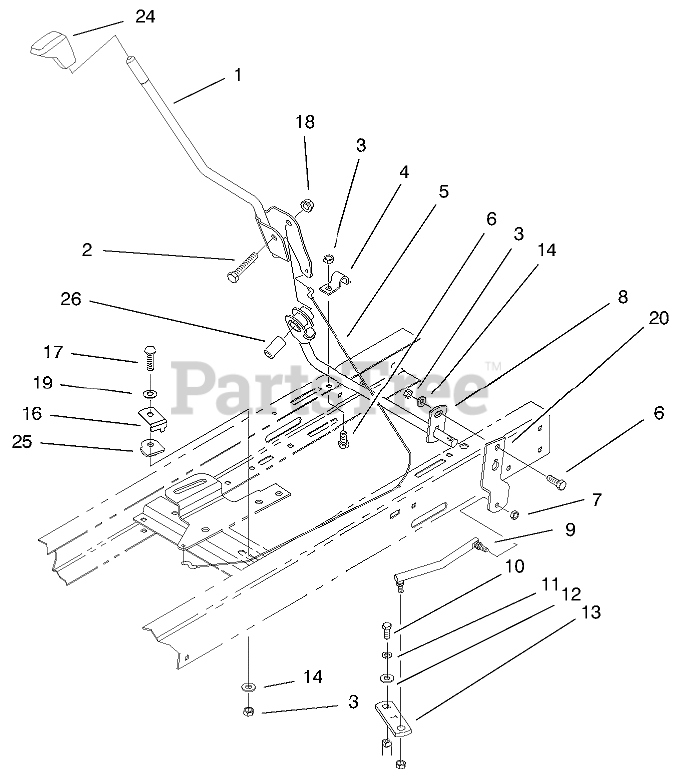

SHIFTING COMPONENTS Parts Diagram

  • Title

1

Toro 94-1991-03

LEVER-SHIFT ASM

$96.99

$

Usually ships in 3-6 days

0

2

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-4810

CLAMP-PIVOT, SHIFT

$3.49

$

Usually ships in 3-6 days

0

5

Toro 55-9321

CABLE-CLUTCH

$12.99

$

Usually ships in 3-6 days

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

7

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

8

Toro 94-1993-10

Wa-Shift Pivot
(Superseded to 94-1993-03)

$85.99

$

Usually ships in 3-6 days

0

9

Toro 94-5431

LINK-SHIFT

$

$

Not available

10

Toro 329-23

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

13

Toro 88-5340

LEVER-SHIFT

$

$

Not available

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 88-5930

KEEPER-CABLE

$6.49

$

Usually ships in 3-6 days

0

17

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

19

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 94-1968

LEVER-PIVOT, SHIFT

$

$

Not available

24

Toro 94-5565

KNOB-SHIFT

$16.99

$

In Stock, only 1 left!

0

25

Toro 84-5610

GUIDE-CABLE

$3.49

$

Usually ships in 3-6 days

0

26

Toro 94-1997

BUSHING-SHIFT, LEVER

$5.99

$

Usually ships in 3-6 days

0
