71220 (14-38 XL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) 5 SPEED TRANSAXLE Parts Diagram

Lawn Tractor

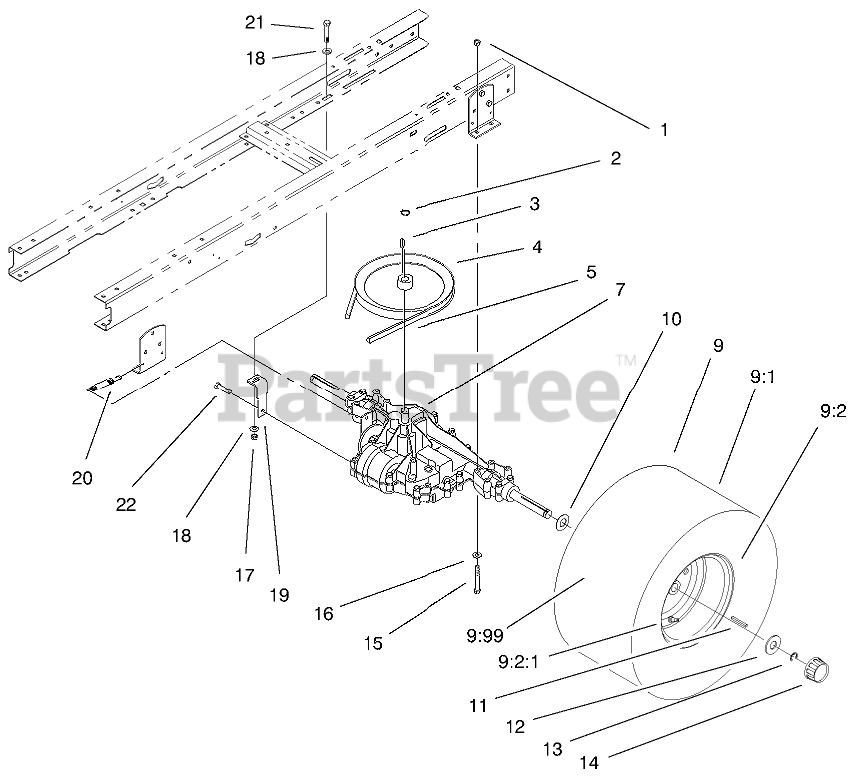

5 SPEED TRANSAXLE Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

3

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

4

Toro 88-4840

PULLEY-TRANSMISSION

$168.99

$

In Stock, only 1 left!

0

5

Toro 88-6270

V-BELT

$56.99

$

In Stock, only 1 left!

0

7

Toro 94-6022

TRANSAXLE ASM

$

$

Not available

9

Wheel& Tire ASM Rear

$

$

Not available

9:1

Toro 88-4090

Tire (Only On: Serial No. 9000001-9005000)

$

$

Not available

9:1

Toro 99-2996

Tire (Only On: Serial No. 9005001 & Up)
(Superseded to 120-6451)

$154.99

$

In Stock, only 1 left!

0

9:2

Toro 88-4390

RIM

$215.99

$

Usually ships in 3-6 days

0

9:2:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

9:99

Toro 231-91

TUBE

$199.99

$

Usually ships in 3-6 days

0

10

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

11

Toro 7-0036

KEY-SQUARE

$

$

Not available

12

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

13

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

14

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 6

0

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 94-1969

STRAP-TORQUE

$6.99

$

Usually ships in 3-6 days

0

20

Toro 26-6701

SPRING-RETURN, BRAKE

$25.99

$

Usually ships in 3-6 days

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0
