71219 (14-38 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) HOOD ASSEMBLY Parts Diagram

Lawn Tractor

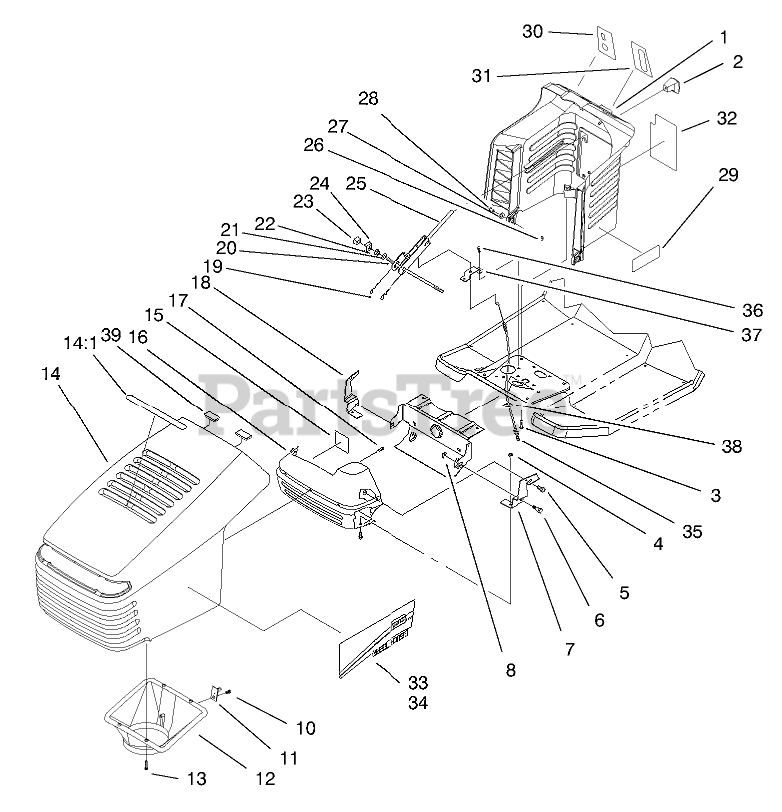

HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 93-0303

Tower-Steering
(Superseded to 99-1947)

$556.99

$

Usually ships in 3-6 days

0

2

Toro 94-5565

KNOB-SHIFT

$16.99

$

In Stock, only 1 left!

0

3

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

5

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

6

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

7

Toro 88-6050-03

BRACKET-PIVOT, LH HOOD

$

$

Not available

8

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

10

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

11

Toro 94-1984

LATCH-PIN

$7.49

$

Usually ships in 3-6 days

0

12

Toro 88-4050

DUCT-AIR

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 92-8650

HOOD ASM

$

$

Not available

14:1

Toro 92-5748

DECAL-AIR DUCT

$35.99

$

In Stock, only 1 left!

0

15

Toro 92-5782

TAPE-FOIL

$0.99

$

Usually ships in 3-6 days

0

16

Toro 93-3864

Shield-Heat
(Superseded to 93-3864-03)

$

$

Not available

17

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

18

Toro 88-6040-03

BRACKET-PIVOT, RH HOOD

$12.99

$

In Stock, only 1 left!

0

19

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

20

Toro 88-4170

ROD-TOWER PIVOT

$

$

Not available

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

22

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

23

Toro 88-4140

NUT-WEDGE

$

$

Not available

24

Toro 88-4160

ROD-CLAMP PIVOT

$

$

Not available

25

Toro 88-5190-03

LEVER-DECK, ENGAGE

$

$

Not available

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

29

Toro 94-3527

DECAL-TOWER 1438 HXL

$

$

Not available

30

Toro 92-5731

DECAL-IGNITION/LIGHTS

$

$

Not available

31

Toro 92-5730

DECAL-THROTTLE/CHOKE

$

$

Not available

32

Toro 93-6673

DECAL-DECK, ENGAGE

$

$

Not available

33

Toro 95-0808

DECAL-HOOD, LEFT

$48.99

$

Usually ships in 3-6 days

0

34

Toro 95-0807

DECAL-HOOD, RIGHT

$

$

Not available

35

Toro 94-4293

Cable-Deck Engage
(Superseded to 99-6837)

$34.99

$

In Stock, only 1 left!

0

36

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

37

Toro 93-3849

BRACKET-CABLE, UPPER

$16.99

$

Usually ships in 3-6 days

0

38

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

39

Toro 94-1980

FOAM-HOOD

$3.99

$

Usually ships in 3-6 days

0
