71219 (14-38 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

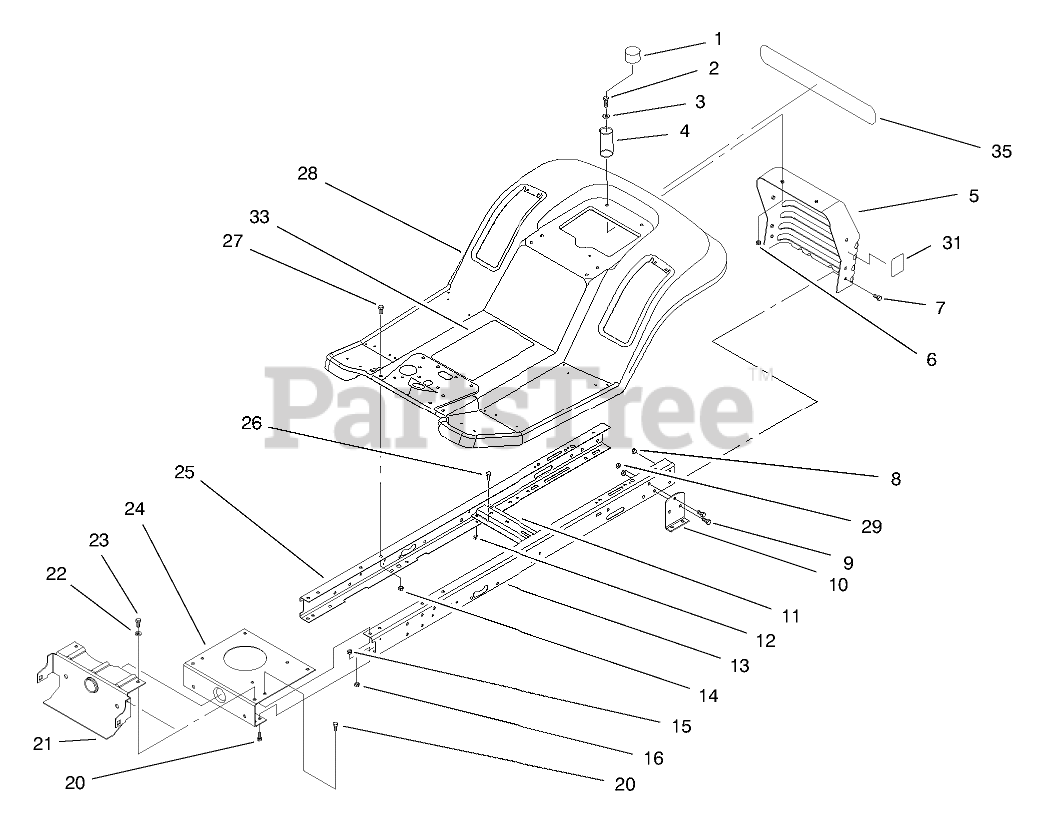

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-6220

SPRING-COMPRESSION

$33.99

$

Usually ships in 3-6 days

0

5

Toro 88-3940-03

Panel-Rear
(Superseded to 99-2957-03)

$183.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 88-5260-03

BRACKET-TRANSAXLE, MOUNTING

$14.99

$

In Stock, only 1 left!

0

11

Toro 88-4620-03

BRACKET-IDLER PIVOT

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 94-1999-03

Frame Rail-LH
(Superseded to 99-2958-03)

$120.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

Toro 98-3575-03

SUPPORT-FRONT, AXLE
(Superseded to 110-8636-03)

$69.99

$

Usually ships in 3-6 days

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

24

Toro 88-4630-03

PLATE-MOUNTING, ENGINE

$

$

Not available

25

Toro 94-1998-03

Frame Rail-RH
(Superseded to 99-2959-03)

$120.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

28

Toro 88-3840

Body-Rear
(Superseded to 88-3840-01)

$768.99

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 93-6678

DECAL - DUMP VALVE

$

$

Not available

33

Toro 93-6676

DECAL-INSTRUCTION

$38.99

$

Usually ships in 3-6 days

0

35

Toro 95-0809

DECAL-REAR, BODY

$

$

Not available
