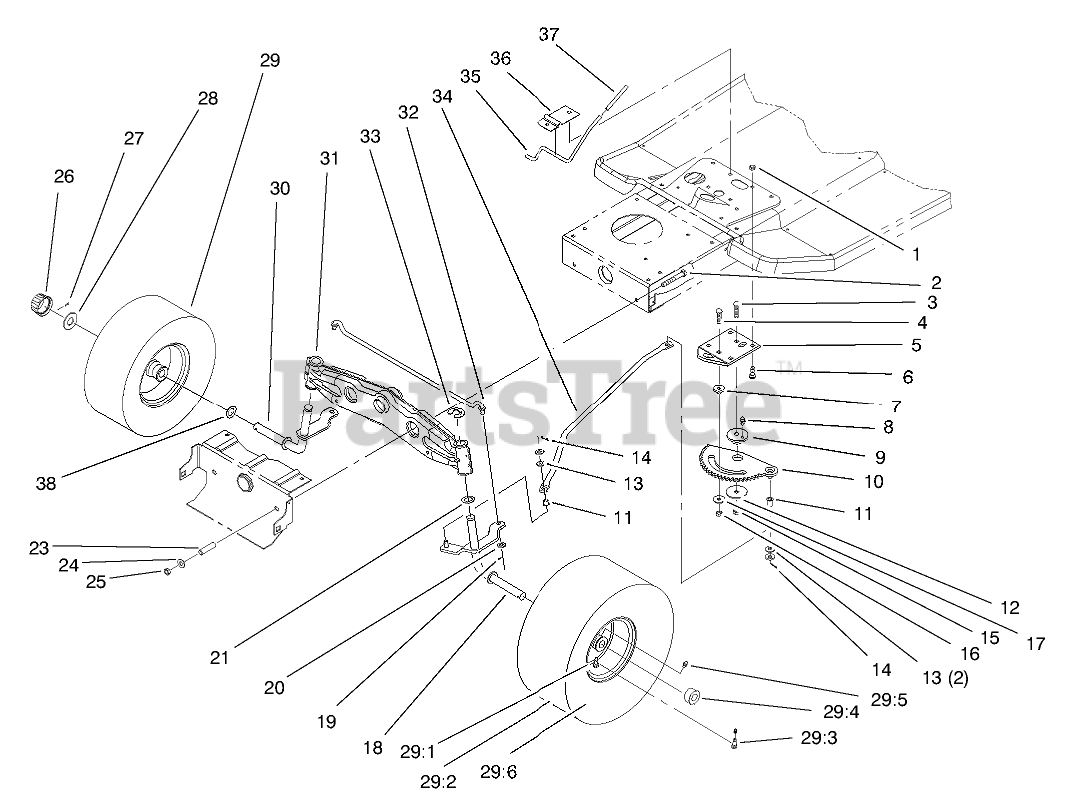

71219 (14-38 HXL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

3

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

4

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 88-5130-03

BRACKET-RACK, STEERING

$55.99

$

In Stock, only 1 left!

0

6

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 88-5010

SPACER-RACK, STEERING

$3.49

$

In Stock, only 1 left!

0

8

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

9

Toro 88-4670

BUSHING-ECCENTRIC

$24.99

$

In Stock, only 1 left!

0

10

Toro 88-5200

RACK-STEERING

$93.99

$

In Stock, only 1 left!

0

11

Toro 52-2891

BUSHING-FLANGED, NYLON

$3.49

$

In Stock, Qty 16

0

12

Toro 111419

WASHER-BEARING

$

$

Not available

13

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

18

Toro 92-7890-03

LH SPINDLE ASM

$199.99

$

Usually ships in 3-6 days

0

19

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

21

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

23

Toro 88-5470

SPACER

$15.99

$

Usually ships in 3-6 days

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

26

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 8

0

27

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

28

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

29:1

Toro 88-4370

RIM ASM

$254.99

$

Usually ships in 3-6 days

0

29:2

Toro 88-4070

TIRE 15 X 6.00 X 6
(Superseded to 99-2988)

$130.99

$

In Stock, only 1 left!

0

29:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

29:4

Toro 88-4400

BEARING-WHEEL
(Superseded to 110513)

$21.99

$

In Stock, only 4 left!

0

29:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

29:6

Toro 232-39

TUBE-INNER

$31.99

$

In Stock, only 1 left!

0

30

Toro 92-7889-03

RH SPINDLE ASM

$147.99

$

Usually ships in 3-6 days

0

31

Toro 94-1962-03

FRONT AXLE ASM

$

$

Not available

32

Toro 88-5380

TIE ROD-STEERING

$

$

Not available

33

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

34

Toro 88-4830

LINK-DRAG

$65.99

$

Usually ships in 3-6 days

0

35

Toro 88-5510

ROD-BRAKE, PARKING

$

$

Not available

36

Toro 88-5520-03

BRACKET-PARKING BRAKE

$10.99

$

Usually ships in 3-6 days

0

37

Toro 88-0890

GRIP-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

38

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0
