71218 (16-44 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-E1 Parts Diagram

Lawn Tractor

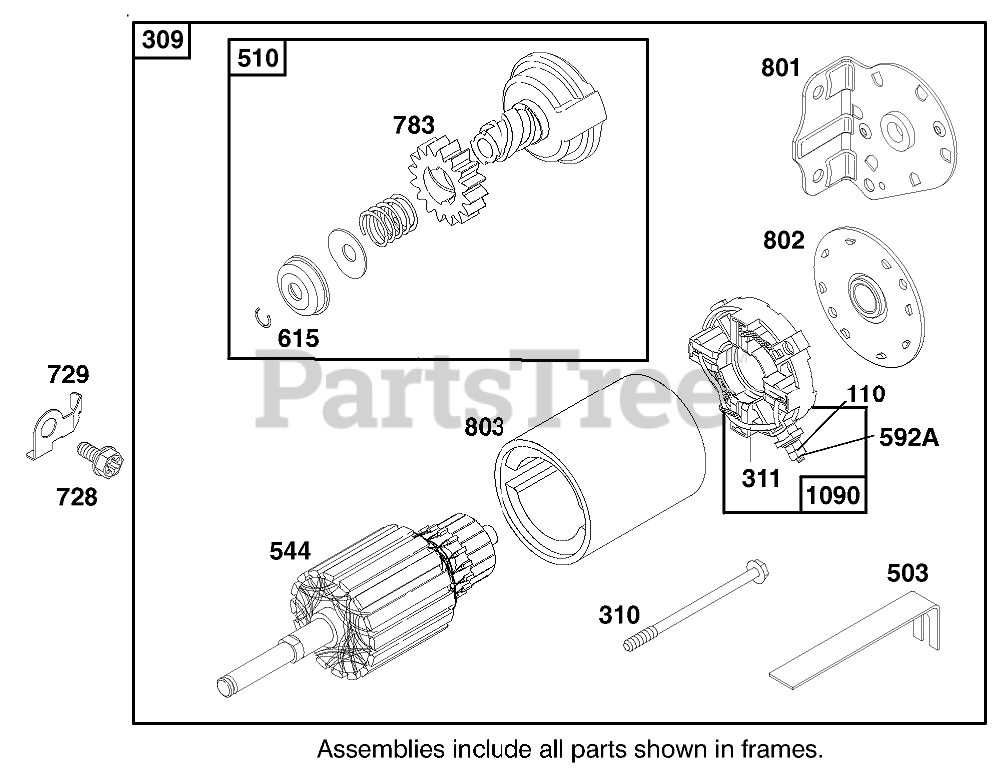

ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-E1 Parts Diagram

  • Title

110

Briggs & Stratton 225137

Washer
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

309

Briggs & Stratton 497595

Motor-Starter

$110.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94003

Bolt
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

503

Briggs & Stratton 806000

Strap-Starter
(Superseded to 691532)

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

$90.99

$

In Stock, only 4 left!

0

544

Briggs & Stratton 497603

Armature-Starter
(Superseded to 692034)

$82.99

$

Usually ships in 2-12 days

0

592A

Briggs & Stratton 92278

Nut-Hex
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 263080

Retainer
(Superseded to 691265)

$5.49

$

In Stock, Qty 7

0

728

Briggs & Stratton 94951

Screw-Torx
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

729

Briggs & Stratton 225170

Clip-Wire
(Superseded to 691224)

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.99

$

In Stock, only 2 left!

0

801

Briggs & Stratton 394856

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497607

Cap-End
(Superseded to 691286)

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 497604

Housing-Starter
(Superseded to 693757)

$25.99

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 497605

Cap-End
(Superseded to 691293)

$29.99

$

In Stock, Qty 5

0
