71218 (16-44 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor

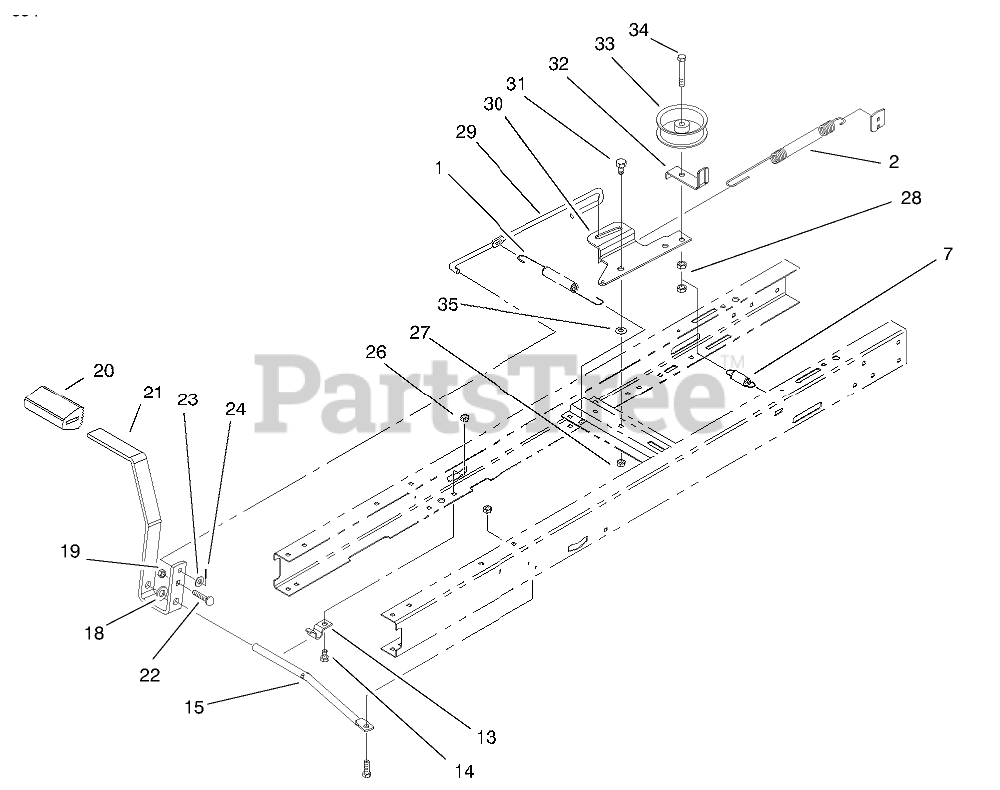

CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 27-8890

SPRING-EXTENSION

$47.99

$

Usually ships in 3-6 days

0

2

Toro 88-6140

BRAKE SPRING

$

$

Not available

7

Toro 88-6330

SPRING-EXTENSION

$9.49

$

Usually ships in 3-6 days

0

13

Toro 88-4810

CLAMP-PIVOT, SHIFT

$3.49

$

Usually ships in 3-6 days

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

15

Toro 88-5500

ROD-PIVOT, PEDAL

$42.99

$

Usually ships in 3-6 days

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 65-2920

PAD-PEDAL

$40.99

$

Usually ships in 3-6 days

0

21

Toro 88-5000-03

PEDAL-CLUTCH/BRAKE, HYDRO

$

$

Not available

22

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

29

Toro 88-5270

ROD-CLUTCH/BRAKE

$

$

Not available

30

Toro 88-6070

ARM-IDLER

$

$

Not available

31

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

32

Toro 88-5560

GUIDE-IDLER, BELT

$15.99

$

Usually ships in 3-6 days

0

33

Toro 88-5680

Idler Pulley
(Superseded to 104-4180)

$87.99

$

In Stock, only 1 left!

0

34

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

35

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0
