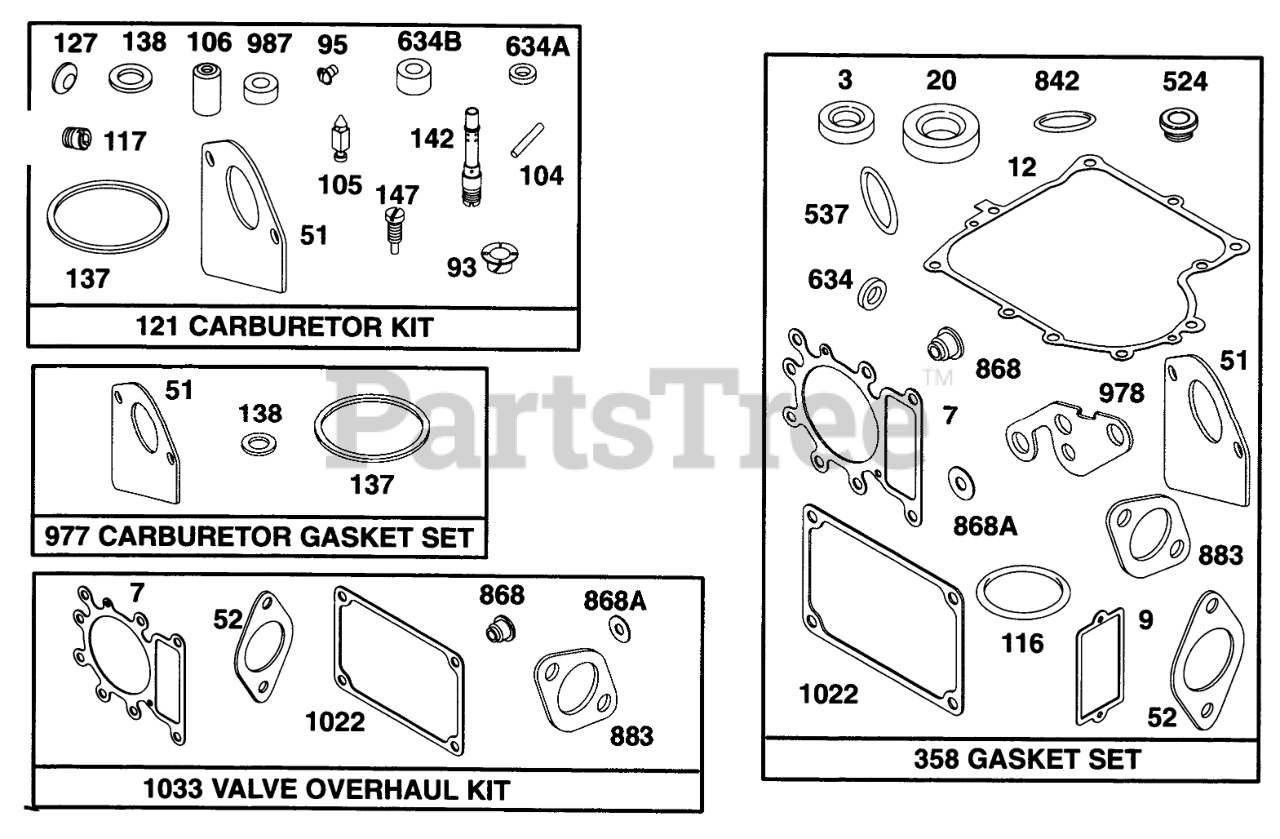

71217 (14-38 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 28N777-0174-01 Parts Diagram

Briggs & Stratton 391086

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 272614

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 272614

Note: Included in Valve Overhaul Kit-Part No 495992.

Briggs & Stratton 27803

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 271916

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 271997

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 271996

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 291675

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 272465

Note: Included in Carburetor Gasket Set-Part No 494385.

Briggs & Stratton 272465

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 272569

Note: Included in Valve Overhaul Kit-Part No 495992.

Briggs & Stratton 272569

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 281346

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 94098

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 231789

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 231855

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 231854

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 281402

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 231858

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 231850

Briggs & Stratton 498116

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 281165

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 281165

Note: Included in Carburetor Gasket Set-Part No 494385.

Briggs & Stratton 281164

Note: Included in Carburetor Gasket Set-Part No 494385.

Briggs & Stratton 281164

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 231990

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 231985

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 495993

Briggs & Stratton 281370

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 281106

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 491323

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 398970

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 281168

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 270920

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 494435

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 494435

Note: Included in Valve Overhaul Kit-Part No 495992.

Briggs & Stratton 272610

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 272610

Note: Included in Valve Overhaul Kit-Part No 495992.

Briggs & Stratton 272293

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 494385

Briggs & Stratton 272888

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 281166

Note: Included in Carburetor Kit-Part No 498116.

Briggs & Stratton 272475

Note: Included in Valve Overhaul Kit-Part No 495992.

Briggs & Stratton 272475

Note: Included in Gasket Set-Part No 495993.

Briggs & Stratton 495992
