71216 (15-44 HXL) - Toro Lawn Tractor (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODEL 28Q777-0168-01 Parts Diagram

Lawn Tractor

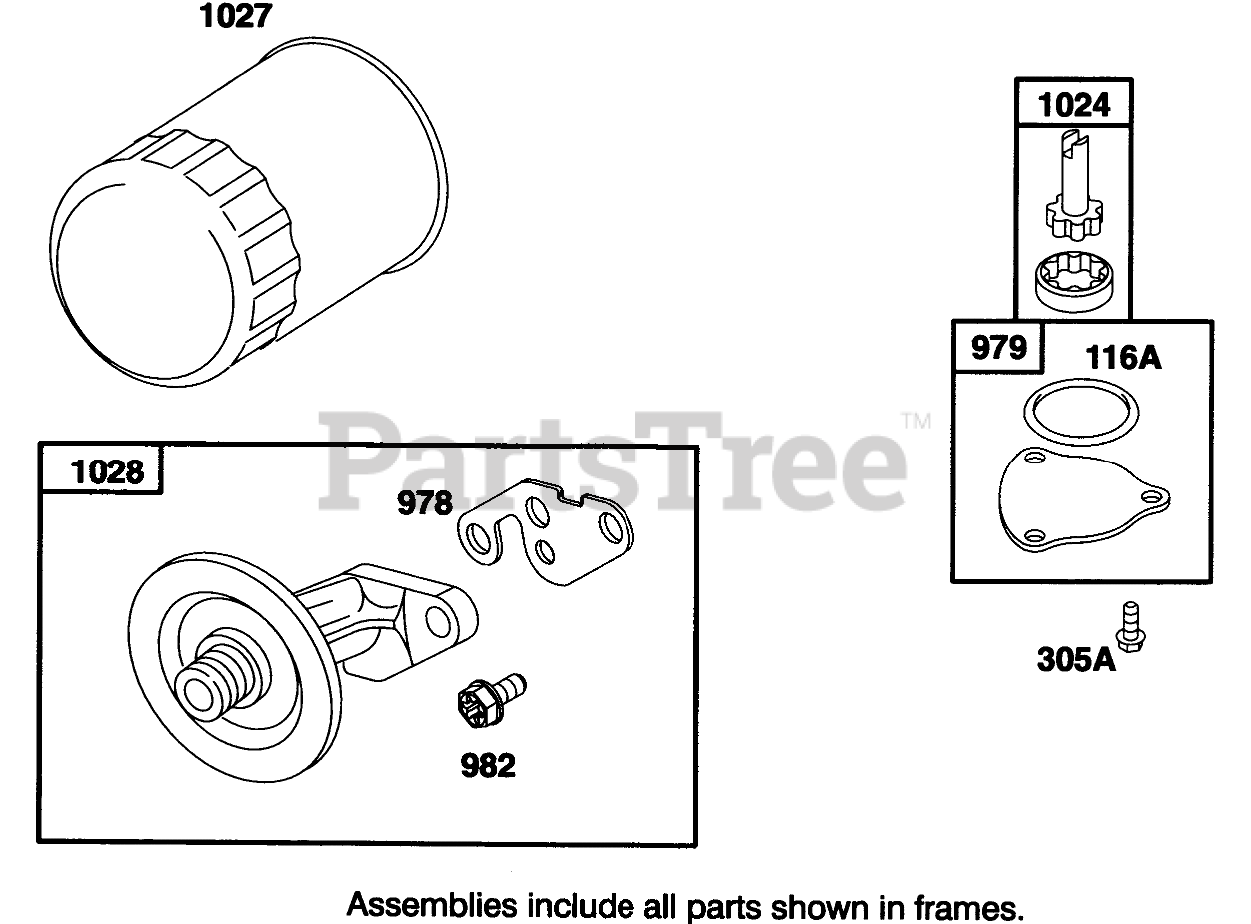

ENGINE BRIGGS & STRATTON MODEL 28Q777-0168-01 Parts Diagram

  • Title

116A

Briggs & Stratton 281402

O-Ring
(Superseded to 690604)

Note: Included in Gasket Set-Part No. 495993.

$4.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 231850

Jet-Main (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 94619

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

332A

Briggs & Stratton 94314

Nut
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 495993

Gasket Set

$86.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 272888

Gasket-Adapter
(Superseded to 691317)

Note: Included in Gasket Set-Part No. 495993.

$4.99

$

In Stock, only 1 left!

0

979

Briggs & Stratton 496745

Cover-Pump

$6.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 94773

Screw-Sem
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

1024

Briggs & Stratton 493884

Pump-Oil

$27.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 491056

Filter-Oil

$9.99

$

In Stock, only 1 left!

0

1028

Briggs & Stratton 496744

Adapter-Filter

$

$

Not available

1172

Toro 31858

Jet-Main

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable
