71215 (14-38 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) SEAT ASSEMBLY Parts Diagram

Lawn Tractor

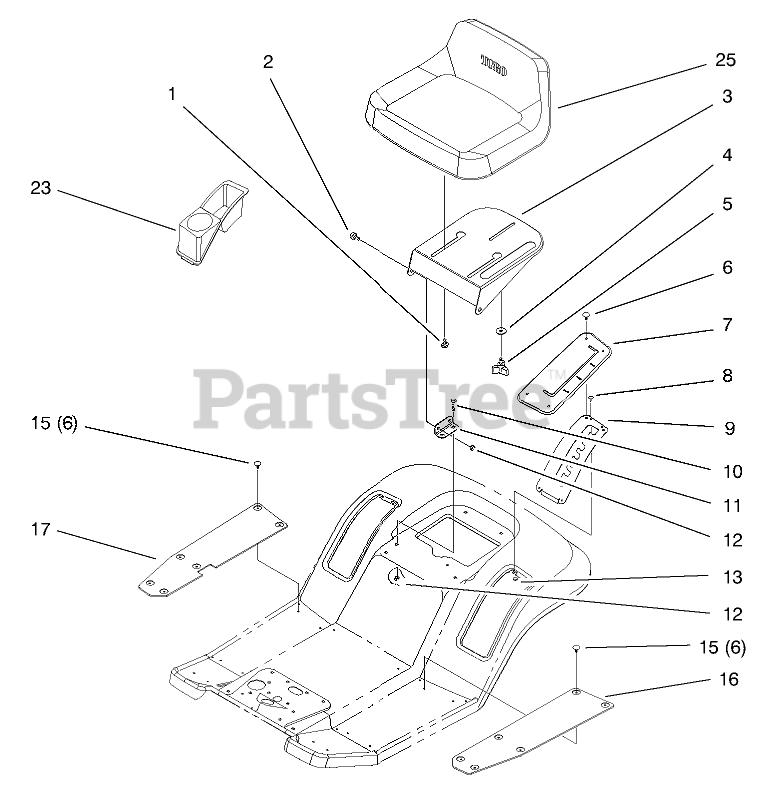

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

2

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

3

Toro 88-4910-03

SEAT SUPPORT (BLACK)

$116.99

$

Usually ships in 3-6 days

0

4

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

5

Toro 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

6

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

7

Toro 88-5170

COVER-HOC

$41.99

$

Usually ships in 3-6 days

0

8

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

9

Toro 88-5030-03

GATE-HOC

$40.99

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 88-4820-03

BRACKET-PIVOT, SEAT

$7.49

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

15

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

16

Toro 88-5240

MAT-FOOT, LH

$

$

Not available

17

Toro 88-5230

MAT-FOOT, RH

$

$

Not available

23

Toro 88-4990

TRAY-FENDER

$42.99

$

Usually ships in 3-6 days

0

25

Toro 88-3950

SEAT
(Superseded to 88-4330)

$

$

Not available
