71215 (14-38 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) REAR WHEEL ASSEMBLY Parts Diagram

Lawn Tractor

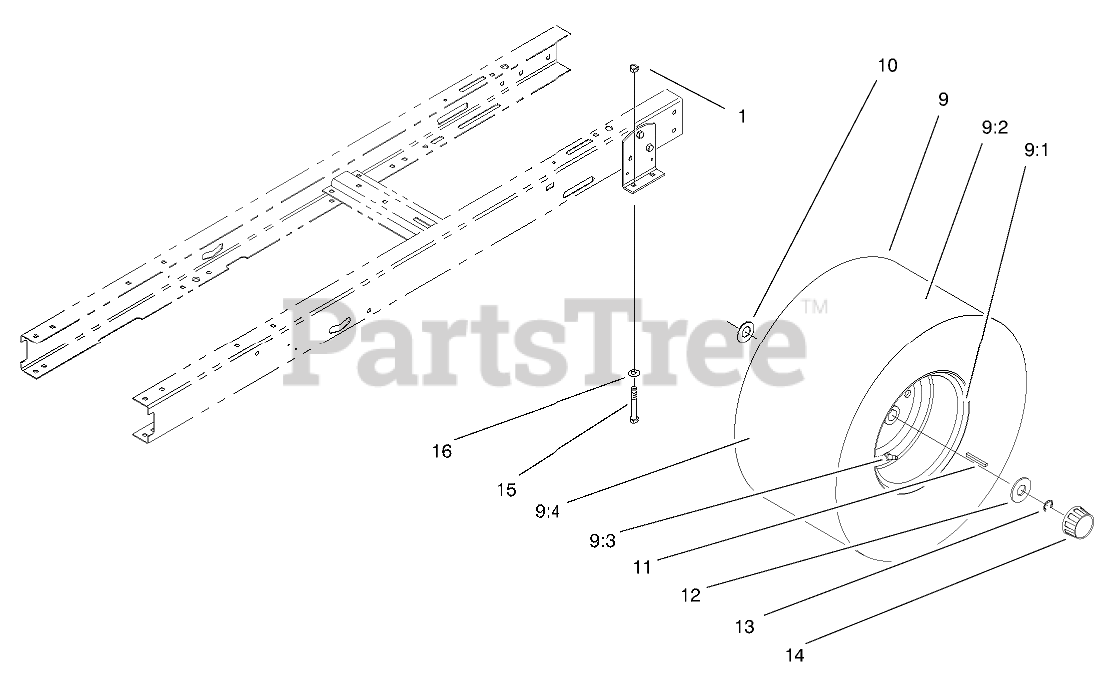

REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 88-4300

Rear Wheel & Tire ASM

$

$

Not available

9:1

Toro 88-4390

RIM

$215.99

$

Usually ships in 3-6 days

0

9:2

Toro 88-4090

TIRE 18 X 9.50 X 8

$

$

Not available

9:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

9:4

Toro 232-41

Tube
(Superseded to 232-37)

$33.99

$

In Stock, only 1 left!

0

10

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

11

Toro 7-0036

KEY-SQUARE

$

$

Not available

12

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 16

0

13

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

14

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
