71215 (14-38 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) DECK ASSEMBLY (38" CUTTING UNIT) Parts Diagram

Lawn Tractor

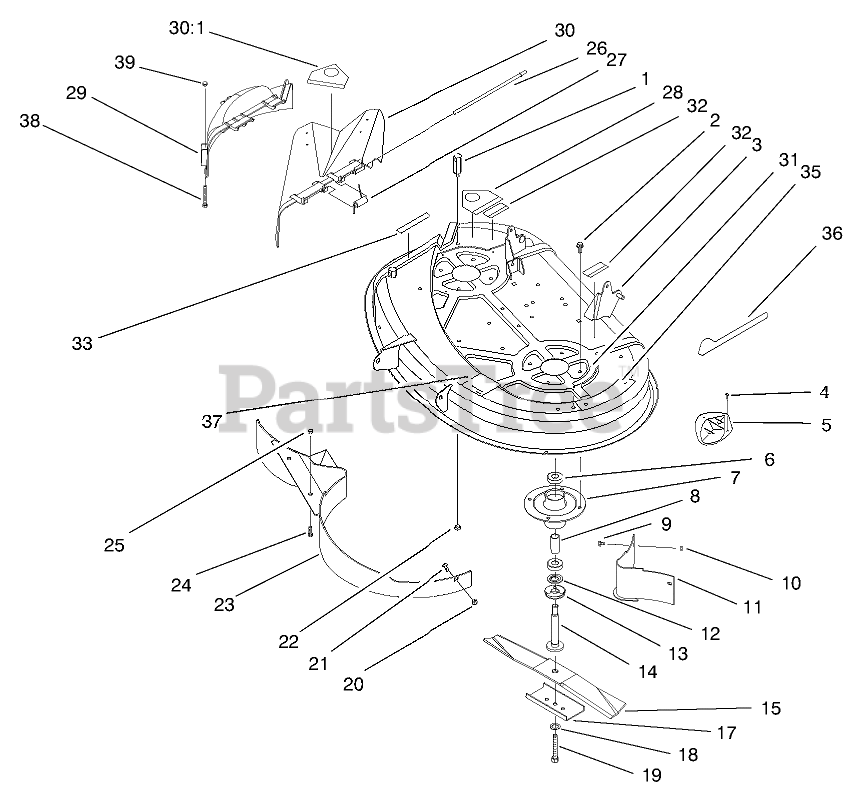

DECK ASSEMBLY (38" CUTTING UNIT) Parts Diagram

  • Title
2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

3

Toro 94-1949-01

Deck Wa-38"

$

$

Currently unavailable

4

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

5

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

6

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

7

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 7

0

8

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

11

Toro 79-1640-03

BAFFLE ASM

$69.99

$

Usually ships in 3-6 days

0

12

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

13

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

14

Toro 80-4341

SHAFT-SPINDLE

$50.99

$

In Stock, only 1 left!

0

15

Toro 79-3061

Blade
(Superseded to 14-7799)

$71.99

$

In Stock, only 3 left!

0

17

Toro 80-0510-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 7

0

18

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 79-1600-03

BAFFLE ASM

$109.99

$

Usually ships in 3-6 days

0

24

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

26

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

27

Toro 57-6950

SPRING

$26.99

$

In Stock, only 1 left!

0

28

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

29

Toro 88-4430

COVER-RECYCLER

$

$

Not available

30

Toro 93-0317

DEFLECTOR ASM

$84.99

$

In Stock, only 1 left!

0

30:1

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

31

Toro 68-3660

DECAL-DANGER, SHIELD

$12.99

$

In Stock, only 1 left!

0

32

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

33

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

34

Toro 98-1447

Decal-Certification

$

$

Not available

35

Toro 79-3140

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

36

Toro 92-9520

DECAL-RECYCLER DECK 38"

$49.99

$

Usually ships in 3-6 days

0

37

Toro 93-6679

DECAL-ROUTING, BELT
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

38

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

39

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0
