71215 (14-38 HXL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

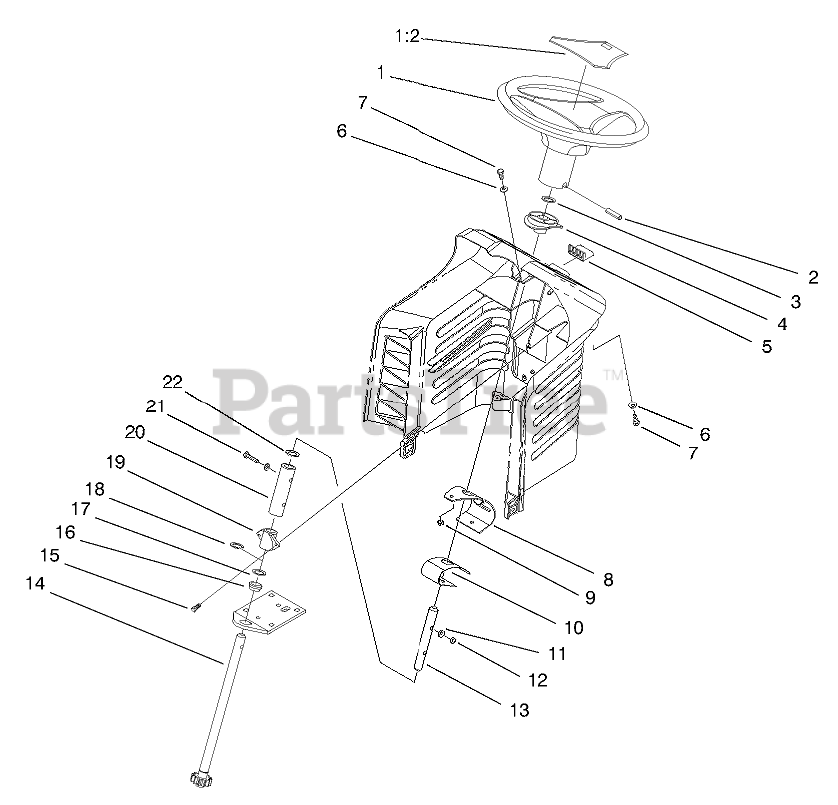

STEERING ASSEMBLY Parts Diagram

  • Title

1

Toro 88-3850

Steering Wheel
(Superseded to 98-1467)

$234.99

$

Usually ships in 3-6 days

0

1:2

Toro 88-3870

COVER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

2

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

3

Toro 32151-81

PUSH-ON RETAINING RING

$

$

Not available

4

Toro 88-4190

BUSHING-SLIDING

$16.99

$

In Stock, only 1 left!

0

5

Toro 88-4180

RELEASE BUTTON

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 88-5180-01

Bracket-Backup

$

$

Currently unavailable

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 88-4890

SPRING LEAF

$26.99

$

Usually ships in 3-6 days

0

11

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 88-6300

UPPER STEERING SHAFT

$36.99

$

Usually ships in 3-6 days

0

14

Toro 88-6370

SHORT STRG SHAFT WA

$

$

Not available

15

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

16

Toro 88-5150

BEARING-FLANGE

$3.49

$

In Stock, Qty 16

0

17

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

18

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

19

Toro 88-4210

BUSHING STATIONARY

$17.99

$

Usually ships in 3-6 days

0

20

Toro 88-6090

COUPLING, STEERING

$135.99

$

Usually ships in 3-6 days

0

21

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

22

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0
