71215 (14-38 HXL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 28N707-0631-A1 Parts Diagram

Lawn Tractor

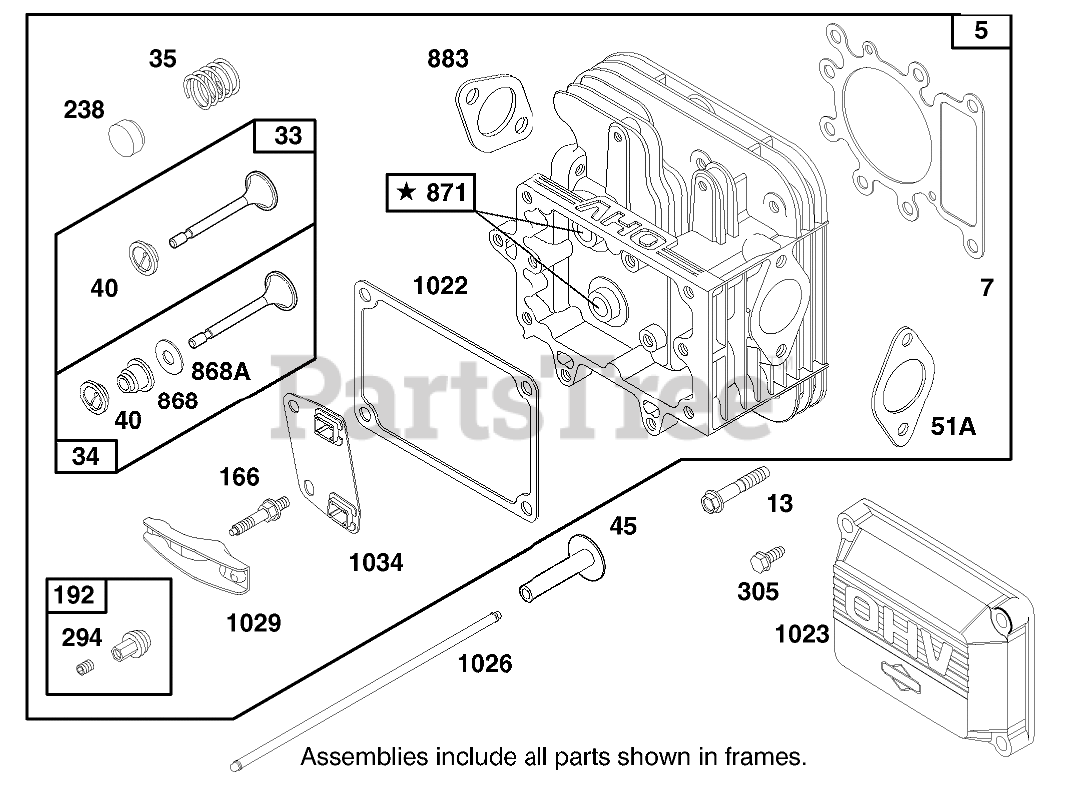

ENGINE BRIGGS & STRATTON MODEL 28N707-0631-A1 Parts Diagram

  • Title

5

Briggs & Stratton 495858

Head-Cylinder
(Superseded to 796026)

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 273280

Gasket-Head, Cylinder
(Superseded to 273280S)

Note: Included in Gasket Set-Part No. 495993.

$10.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 273280

Gasket-Head, Cylinder
(Superseded to 273280S)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$10.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94728

Screw-Cylinder Head
(Superseded to 84001963)

$3.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 495856

Valve-Exhaust
(Superseded to 792868)

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 495857

Valve-Intake
(Superseded to 791935)

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262811

Spring-Valve
(Superseded to 691279)

$5.99

$

In Stock, Qty 10

0

40

Briggs & Stratton 224641

Retainer-Valve
(Superseded to 499586)

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 262411

Tappet-Valve
(Superseded to 690564)

$9.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 272569

Gasket-Intake
(Superseded to 272569S)

Note: Included in Gasket Set-Part No. 495993.

$4.99

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 272569

Gasket-Intake
(Superseded to 272569S)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$4.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Gasket Set-Part No. 495993.

$6.49

$

In Stock, Qty 20+

0

166

Briggs & Stratton 94555

Stud-Rocker Arm
(Superseded to 691095)

$7.99

$

In Stock, Qty 20+

0

192

Briggs & Stratton 492160

Adjuster-Valve
(Superseded to 691986)

$11.99

$

In Stock, Qty 20+

0

238

Briggs & Stratton 262836

Cap-Valve
(Superseded to 691843)

$8.49

$

In Stock, Qty 20+

0

294

Briggs & Stratton 810068

Screw-Set
(Superseded to 691986)

$11.99

$

In Stock, Qty 20+

0

305

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

616

Briggs & Stratton 495157

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

868

Briggs & Stratton 494435

Seal-Valve
(Superseded to 690968)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 494435

Seal-Valve
(Superseded to 690968)

Note: Included in Gasket Set-Part No. 495993.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 272610

Seal Valve
(Superseded to 690968)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 272610

Seal Valve
(Superseded to 690968)

Note: Included in Gasket Set-Part No. 495993.

$10.99

$

In Stock, Qty 20+

0

871

Toro 262835

Bushing-Guide (Intake and Exhaust)

$

$

Currently unavailable

883

Briggs & Stratton 272293

Exhaust Gasket
(Superseded to 692236)

Note: Included in Gasket Set-Part No. 495993.

$5.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 272293

Exhaust Gasket
(Superseded to 692236)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$5.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 224552

Cover-Rocker
(Superseded to 691192)

$

$

Not available

1026

Briggs & Stratton 494432

Guide-Push Rod
(Superseded to 692003)

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 224554

Arm-Rocker
(Superseded to 691751)

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 494432

Guide-Push Rod
(Superseded to 692003)

$7.99

$

In Stock, Qty 20+

0
