71213 (13-38 HXL) - Toro Lawn Tractor (SN: 059010001 - 059999999) (1995) SPEED CONTROL & REAR WHEEL ASSEMBLY Parts Diagram

Lawn Tractor

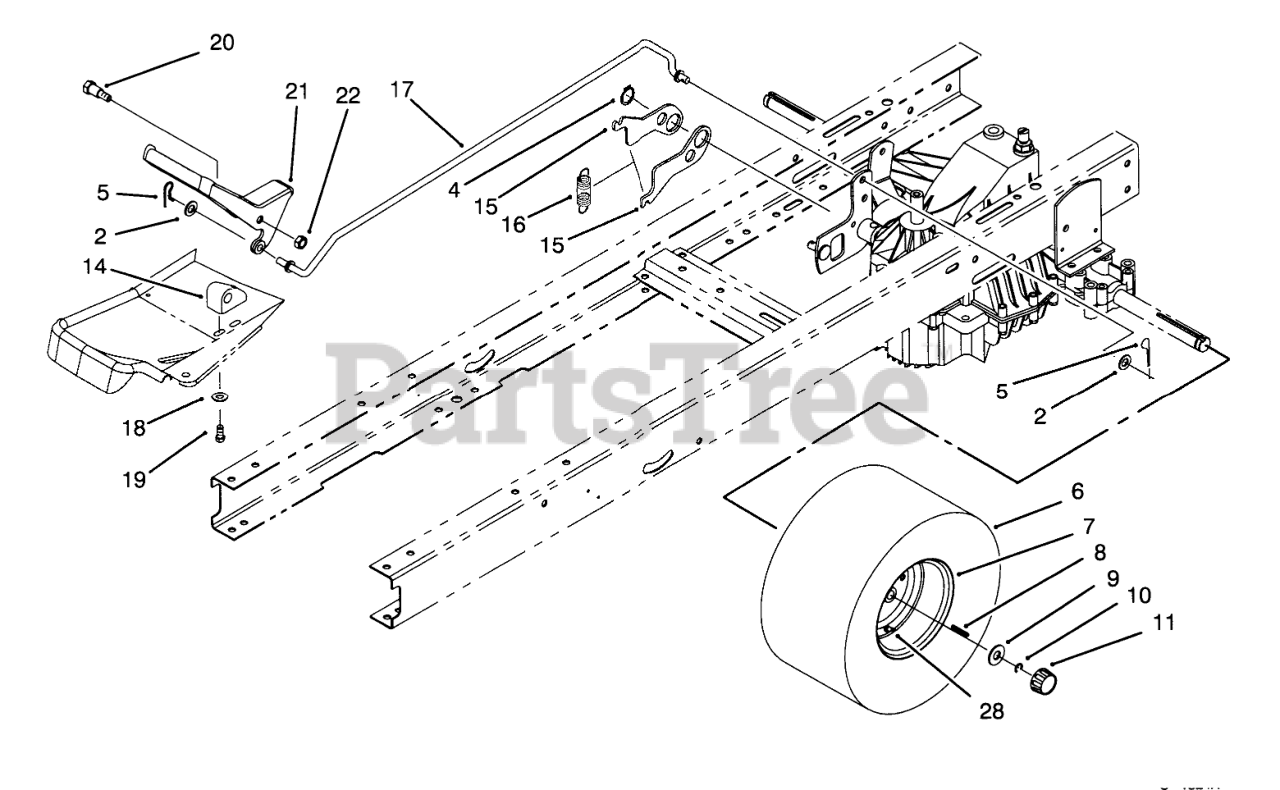

SPEED CONTROL & REAR WHEEL ASSEMBLY Parts Diagram

  • Title

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32151-83

RING-SNAP

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

6

Toro 88-4090

TIRE 18 X 9.50 X 8

$

$

Not available

7

Toro 83-4390

Rim

$

$

Not available

8

Toro 7-0036

KEY-SQUARE

$

$

Not available

9

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 16

0

10

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

11

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

14

Toro 88-4690

BLOCK-PIVOT

$16.99

$

In Stock, only 3 left!

0

15

Toro 88-5610

NEUTRAL RETURN LEVER

$

$

Not available

16

Toro 92-7305

SPRING-EXTENSION

$10.99

$

In Stock, only 3 left!

0

17

Toro 92-9793

SPEED CONTROL ROD

$

$

Not available

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

20

Toro 23-0310

SCREW-SHOULDER, HH

$28.99

$

Usually ships in 3-6 days

0

21

Toro 93-3812

PEDAL SPEED CONTROL

$38.99

$

Usually ships in 3-6 days

0

22

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

28

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

Toro 232-41

Tube
(Superseded to 232-37)

Note: Not illustrated

$33.99

$

In Stock, only 1 left!

0

Toro 88-4300

Wheel & Tire Assembly (Incl. Ref. #6 & 7)

Note: Not illustrated

$

$

Not available
