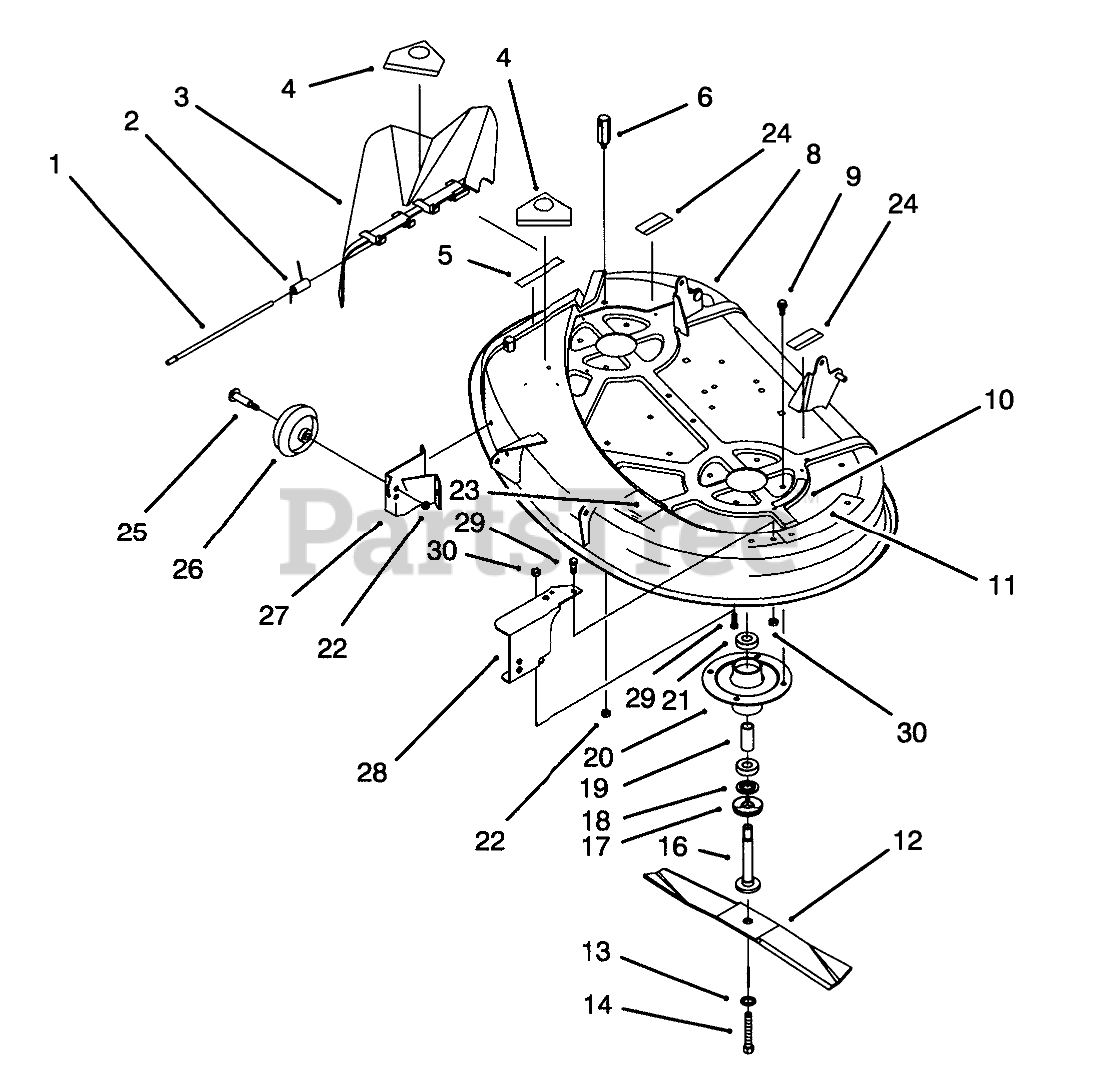

71213 (13-38 HXL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) HOUSING & SPINDLE ASSEMBLY (38" CUTTING UNIT) (MODEL NO. 71213 ONLY) Parts Diagram

Lawn Tractor

HOUSING & SPINDLE ASSEMBLY (38" CUTTING UNIT) (MODEL NO. 71213 ONLY) Parts Diagram

  • Title
1

Toro 57-4380

ROD-HINGE DEFLECTOR

$38.99

$

In Stock, only 2 left!

0

2

Toro 57-6950

SPRING

$27.99

$

In Stock, only 1 left!

0

3

Toro 93-0317

Deflector Assembly (Incl. Ref. #4)

$84.99

$

In Stock, only 3 left!

0

4

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

5

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

6

Toro 57-4360

REAR PIVOT POST (PLTD)

$

$

Not available

8

Toro 88-5780-01

Deck-38"
(Superseded to 16-9469)

$1040.99

$

Usually ships in 3-6 days

0

9

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Toro 68-3660

DECAL-DANGER, SHIELD

$12.99

$

In Stock, only 1 left!

0

11

Toro 79-3140

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

12

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$42.99

$

Usually ships in 3-6 days

0

13

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

16

Toro 80-4341

SHAFT-SPINDLE

$50.99

$

In Stock, Qty 5

0

17

Toro 80-4360

SHIELD-BEARING

$20.99

$

In Stock, Qty 19

0

18

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 20+

0

19

Toro 62-3661

SPACER

$16.99

$

In Stock, Qty 15

0

20

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 14

0

21

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

24

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

25

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

26

Toro 701756

WHEEL-GAGE

$8.49

$

In Stock, Qty 13

0

27

Toro 88-5740

Bracket-R.H.
(Superseded to 88-5740-03)

$45.99

$

Usually ships in 3-6 days

0

28

Toro 88-5750

LH WHEEL DECK BRKT
(Superseded to 88-5750-03)

$

$

Not available

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
