71213 (13-38 HXL) - Toro Lawn Tractor (SN: 049000001 - 049999999) (1994) TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

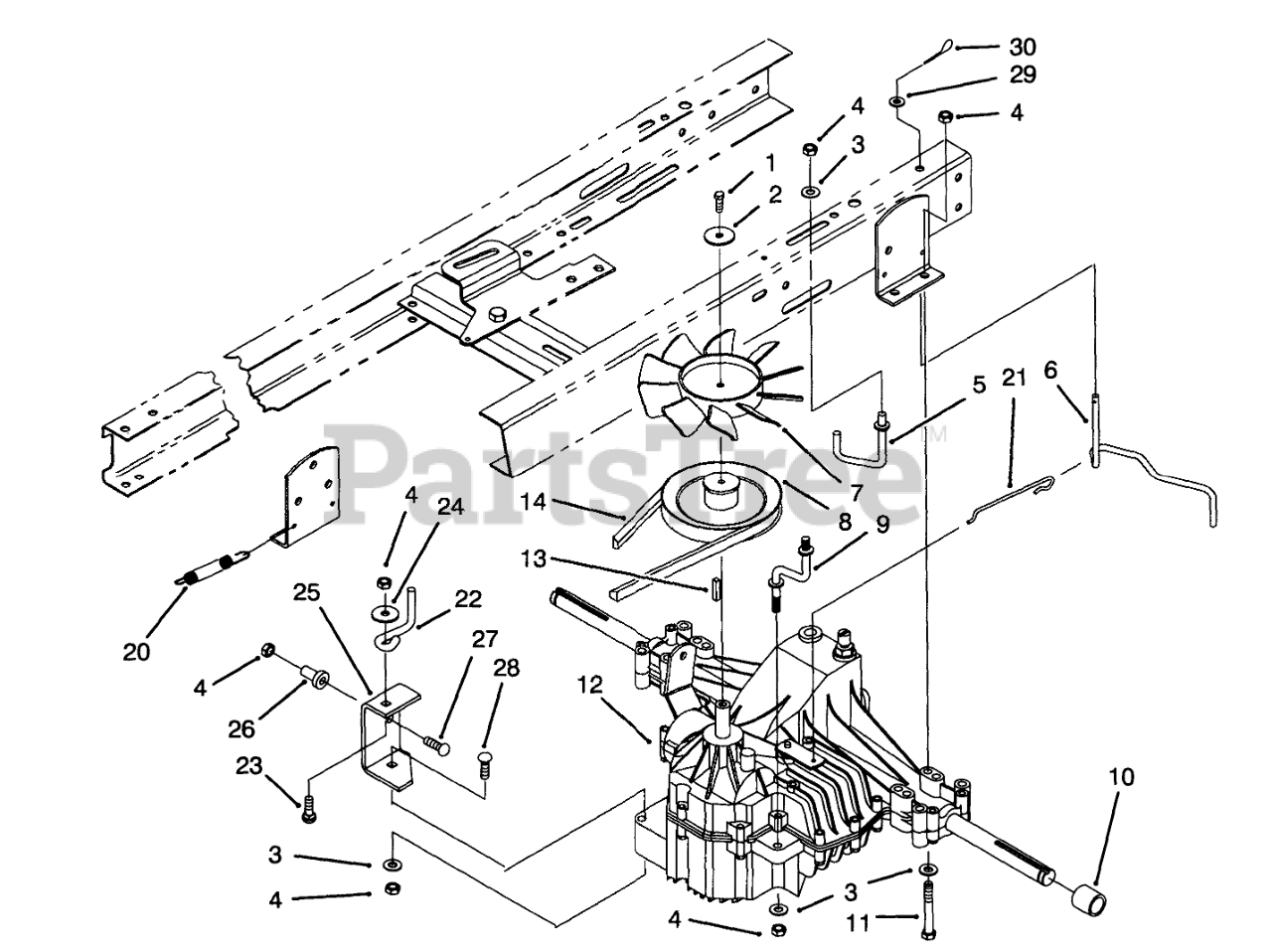

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 48-7620

SCREW-HH
(Superseded to 33113-016)

$0.99

$

Usually ships in 3-6 days

0

2

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 88-5960

GUIDE-TRANS BELT, LH

$

$

Not available

6

Toro 92-8857

LEVER - BYPASS

$

$

Not available

7

Toro 115271

FAN-7"

$36.99

$

In Stock, Qty 5

0

8

Toro 88-6180

HYDRO TRANS PULLEY

$

$

Not available

9

Toro 88-5620

TORQUE STRAP

$50.99

$

Usually ships in 3-6 days

0

10

Toro 88-5360

SPACER

$10.99

$

In Stock, only 3 left!

0

11

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

12

Toro 92-8783

Transaxle
(Superseded to 94-6775)

$5504.99

$

Usually ships in 3-6 days

0

13

Toro 80-6090

KEY-PUMP

$9.99

$

Usually ships in 3-6 days

0

14

Toro 88-6280

V-BELT

$47.99

$

Usually ships in 3-6 days

0

20

Toro 26-6701

SPRING-RETURN, BRAKE

$25.99

$

Usually ships in 3-6 days

0

21

Toro 92-8856

WIRE - BYPASS

$

$

Not available

22

Toro 88-5460

TRANS BELT GUIDE

$14.99

$

Usually ships in 3-6 days

0

23

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

24

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

25

Toro 92-6013

Bracket-Speed Control
(Superseded to 92-6013-03)

$23.99

$

Usually ships in 3-6 days

0

26

Toro 65-5080

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

27

Toro 3230-5

SCREW-CARR

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0
