71213 (13-38 HXL) - Toro Lawn Tractor (SN: 049000001 - 049999999) (1994) HYDROGEAR TRANSAXLE MODEL NO. 316-0500 Parts Diagram

Lawn Tractor

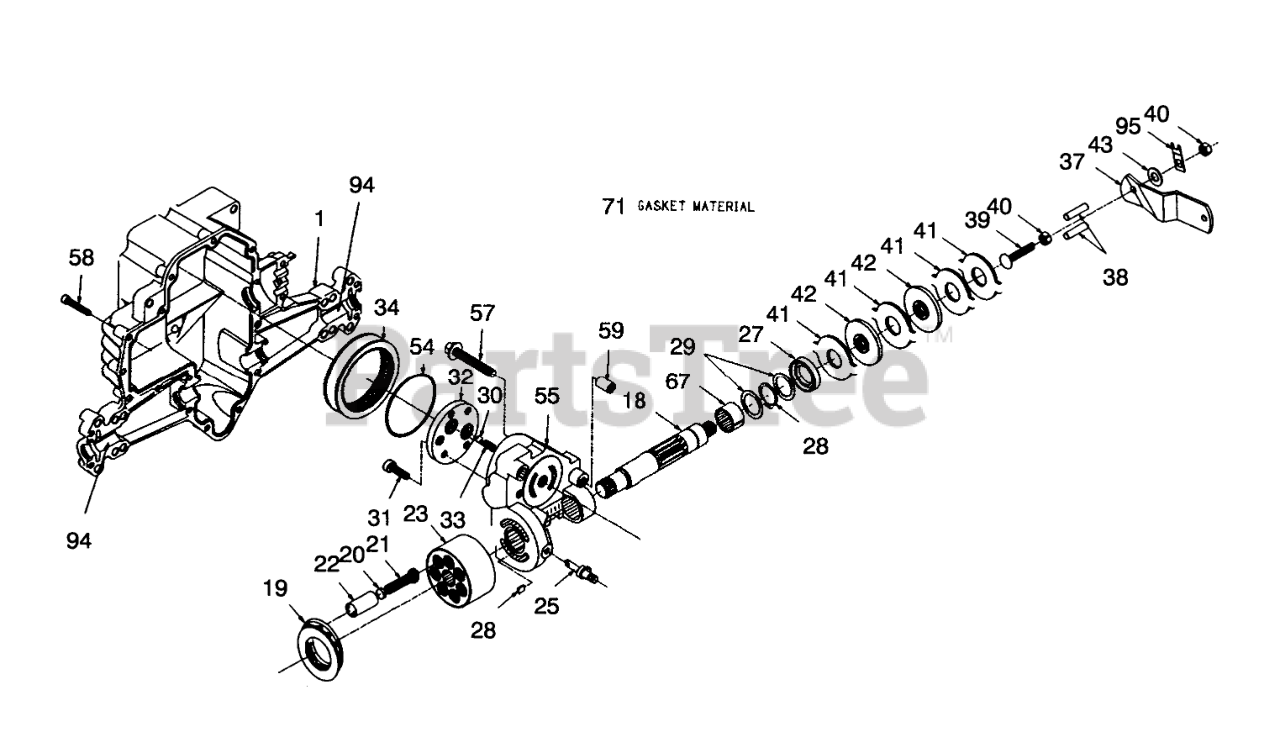

HYDROGEAR TRANSAXLE MODEL NO. 316-0500 Parts Diagram

  • Title

1

Housing-Lower

$

$

Not available

18

Shaft-Motor

$

$

Not available

20

Seat-Piston Spring

$

$

Not available

21

Spring-Piston

$

$

Not available

23

Block-Cylinder (Motor)

$

$

Not available

25

Actuator-Bypass

$

$

Not available

26

Plate-Bypass

$

$

Not available

27

Seal-Lip

$

$

Not available

29

Washer

$

$

Not available

30

Ball

$

$

Not available

31

Spring-Check Valve

$

$

Not available

32

Plate-Check Valve

$

$

Not available

33

Socket Hd. Cap Screw

$

$

Not available

34

Oil Filter Element

$

$

Not available

37

Toro 88-6230

Lever-Brake
(Superseded to 93-3861)

$

$

Not available

38

Toro 92-6549

PIN - ACTUATING

$7.99

$

Usually ships in 3-6 days

0

39

Bolt

$

$

Not available

40

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

41

Stator-Brake

$

$

Not available

42

Rotor-Brake

$

$

Not available

43

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

54

O Ring

$

$

Not available

55

Center-Section

$

$

Not available

57

Bolt

$

$

Not available

58

Bolt

$

$

Not available

67

Du Bearing

$

$

Not available

71

Gasket Material

$

$

Not available

94

Grease Durina "O"

$

$

Not available

95

Toro 92-7300

STRAP - LOCKING

$

$

Not available
