71209 (XL 320) - Toro Lawn Tractor (SN: 270000001 - 270999999) (2007) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 21A907-0169-E1 Parts Diagram

Lawn Tractor

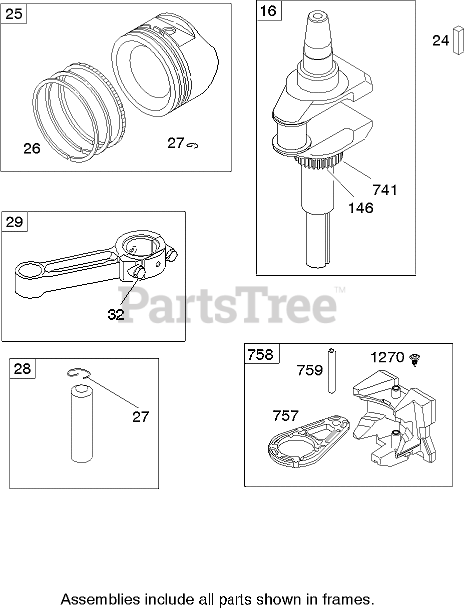

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 21A907-0169-E1 Parts Diagram

  • Title
16

Briggs & Stratton 697390

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$365.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 698371

Piston ASM (Standard)
(Superseded to 792307)

Note: Obtain parts from www.briggsandstratton.com

$172.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 698373

Piston ASM (.020in Oversize)
(Superseded to 792728)

Note: Obtain parts from www.briggsandstratton.com

$278.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 698375

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$57.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 698377

Ring Set (.020in Oversize)
(Superseded to 697120)

Note: Obtain parts from www.briggsandstratton.com

$255.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 698469

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 13

0

28

Briggs & Stratton 697099

Pin-Piston (Std)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 697364

Rod-Connecting (Standard)
(Superseded to 791633)

Note: Obtain parts from www.briggsandstratton.com

$79.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 692852

Screw (Connecting Rod)
(Superseded to 791118)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

146

Briggs & Stratton 691639

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 697128

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, only 1 left!

0

757

Briggs & Stratton 697607

Link-Counterweight
(Superseded to 793242)

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 697391

Counterweight

Note: Obtain parts from www.briggsandstratton.com

$161.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

Pin-Counterweight

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

1270

Briggs & Stratton 697156

Plug-Counterweight, AVS
(Superseded to 793243)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0
