71209 (XL 320) - Toro Lawn Tractor (SN: 270000001 - 270999999) (2007) 32 INCH DECK ASSEMBLY Parts Diagram

Lawn Tractor

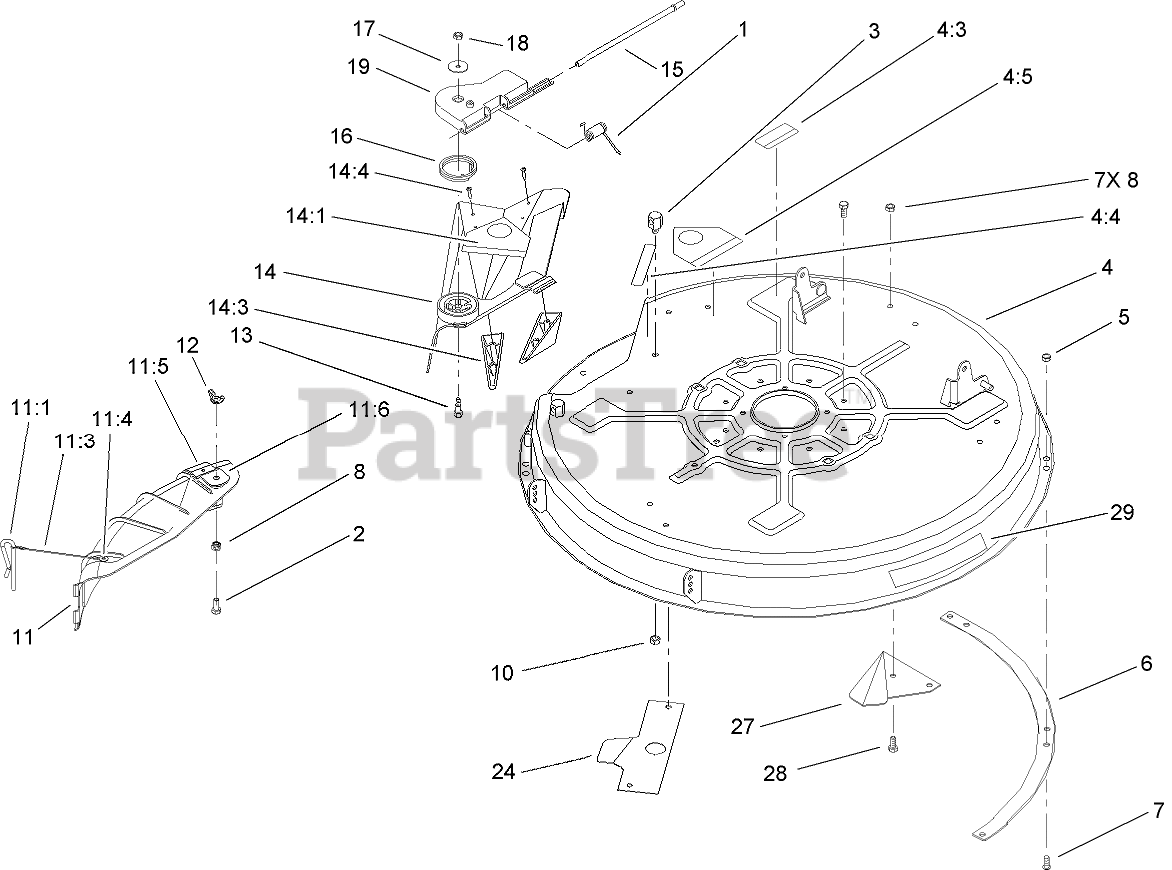

32 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 92-2493

SPRING-TORSION

$11.99

$

In Stock, only 2 left!

0

2

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

3

Toro 28-7350

POST-PIVOT

$33.99

$

Usually ships in 3-6 days

0

4

Toro 95-7483

DECK ASM

$1195.99

$

Usually ships in 3-6 days

0

4:3

Toro 93-6674

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

4:4

Toro 93-7009

DECAL-DANGER

$6.49

$

In Stock, only 1 left!

0

4:5

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

6

Toro 80-4490-03

RING-DECK

$19.99

$

Usually ships in 3-6 days

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

10

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

11

Toro 82-6151

DISCHARGE COVER ASM

$118.99

$

In Stock, only 2 left!

0

11:1

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

11:3

Toro 28-8070

LANYARD

$15.99

$

Usually ships in 3-6 days

0

11:4

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

11:5

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

11:6

Toro 83-7010-03

BRACE

$26.99

$

Usually ships in 3-6 days

0

12

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

13

Toro 92-8916

BOLT-SHOULDER

$15.99

$

In Stock, only 1 left!

0

14

Toro 93-7694

32 INCH DEFLECTOR ASM

$117.99

$

Usually ships in 3-6 days

0

14:1

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

14:3

Toro 93-7696

KICKER

$14.99

$

In Stock, only 3 left!

0

14:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

15

Toro 88-6150

ROD-HINGE, DEFLECTOR

$

$

Not available

16

Toro 88-6160

SPRING-TORSION

$34.99

$

In Stock, only 1 left!

0

17

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 88-4540

PIVOT-HINGE, DEFLECTOR

$21.99

$

In Stock, only 2 left!

0

24

Toro 92-2494-03

RAMP-DEFLECTOR

$24.99

$

Usually ships in 3-6 days

0

27

Toro 80-2630-03

KICKER

$31.99

$

In Stock, only 4 left!

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 106-6406

DECAL-RECYCLER

$

$

Not available
