71209 (13-32 XLE) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) ENGINE SYSTEM COMPONENT ASSEMBLY Parts Diagram

Lawn Tractor

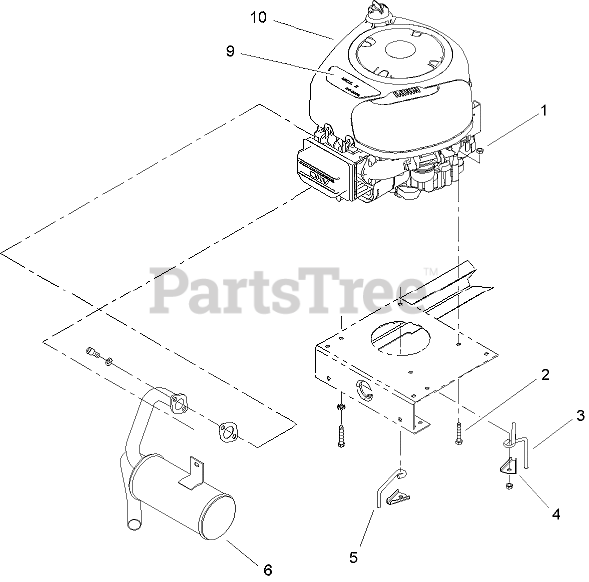

ENGINE SYSTEM COMPONENT ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Toro 88-6060

GUIDE-BELT, LH

$23.99

$

Usually ships in 3-6 days

0

4

Toro 76-3820

ANCHOR-GUIDE, BELT

$2.49

$

Usually ships in 3-6 days

0

5

Toro 88-5490

GUIDE-BELT, RH

$19.99

$

Usually ships in 3-6 days

0

6

Toro 105-2461

MUFFLER-EXHAUST

$

$

Not available

9

Toro 105-2466

DECAL-ENGINE, 13HP

$

$

Not available

10

ENGINE-13 HP BRIGGS AND STRATTON MODEL NO. 21A907-0169-E1

Note: Not serviced separately

$

$

Not available
