71209 (13-32 XLE) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON MODEL 21A907-0169-E1 Parts Diagram

Lawn Tractor

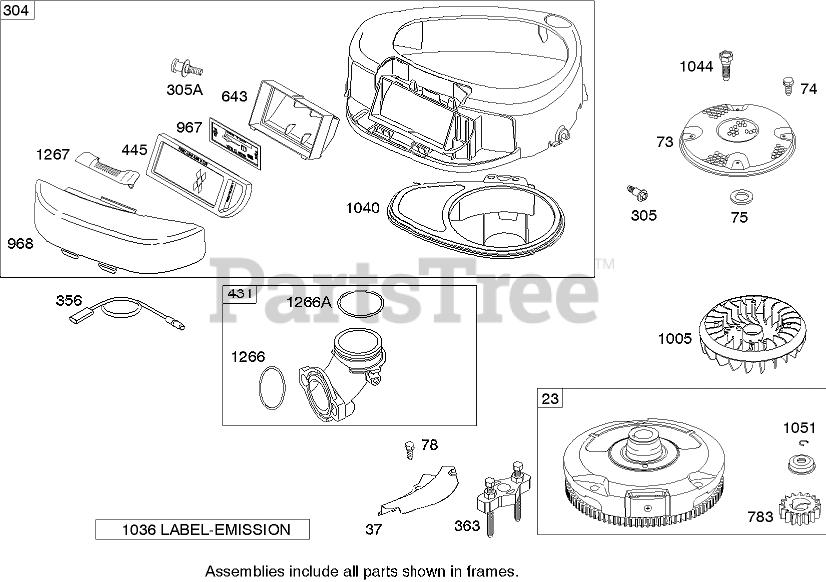

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON MODEL 21A907-0169-E1 Parts Diagram

  • Title

23

Briggs & Stratton 698281

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

37

Briggs & Stratton 697352

Guard-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 2 left!

0

73

Briggs & Stratton 697133

Screen-Rotating

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

74

Briggs & Stratton 697897

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 690582

Washer-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 691003

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

304

Briggs & Stratton 697137

Housing-Blower
(Superseded to 698804)

Note: Obtain parts from www.briggsandstratton.com

$126.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

305A

Briggs & Stratton 697103

Screw
(Superseded to 799370)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

356

Briggs & Stratton 690807

Wire-Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

431

Briggs & Stratton 697122

Elbow-Intake

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 697014

Filter-Air Cleaner Cartridge
(Superseded to 794422)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, Qty 20+

0

643

Briggs & Stratton 698413

Retainer-Air Filter
(Superseded to 794421)

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, Qty 20+

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

967

Briggs & Stratton 697292

Filter-Pre Cleaner

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

968

Briggs & Stratton 697420

Cover-Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$41.99

$

In Stock, only 2 left!

0

1005

Briggs & Stratton 699044

Fan-Flywheel
(Superseded to 796200)

Note: Obtain parts from www.briggsandstratton.com

$42.99

$

In Stock, only 2 left!

0

1036

Briggs & Stratton 697221

Decal-Emission

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

1040

Briggs & Stratton 698368

Plate-Trim

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

1044

Briggs & Stratton 698139

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

1267

Briggs & Stratton 697419

Latch-Housing, Blower

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0
