71209 (13-32 XLE) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) GASKET ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1125-E1 Parts Diagram

Lawn Tractor

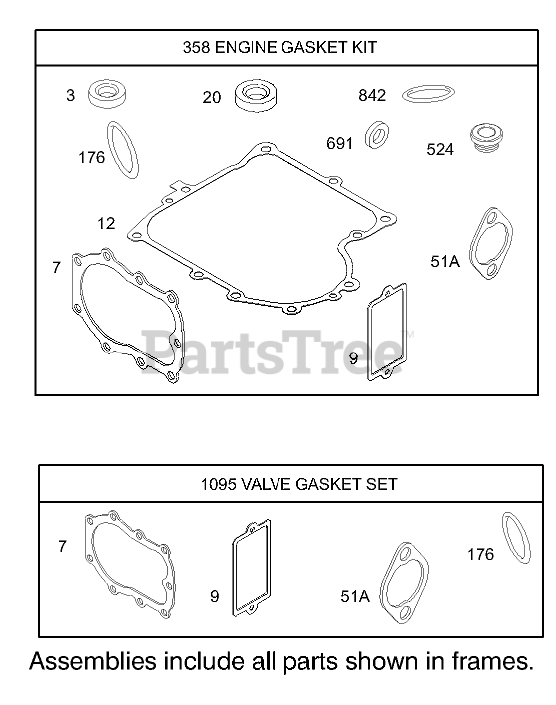

GASKET ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1125-E1 Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Engine Gasket Set-Ref. 358.

$9.49

$

In Stock, only 3 left!

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Valve Gasket Set-Ref. 1095.

$9.49

$

In Stock, only 3 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 692226

Crankcase Gasket (.015 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 2 left!

0

Briggs & Stratton 692406

Crankcase Gasket (.005 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 692405

Crankcase Gasket (.009 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, only 1 left!

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

In Stock, Qty 5

0

51A

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 5

0

176

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 20+

0

176

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 494241

Gasket Set

$39.99

$

In Stock, Qty 8

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 8

0

842

Briggs & Stratton 691870

O Ring Seal (Dipstick Tube)

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 498539

Valve Gasket Set

$38.99

$

Usually ships in 2-12 days

0
