71209 (13-32 XLE) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) CRANKCASE ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1125-E1 Parts Diagram

Lawn Tractor

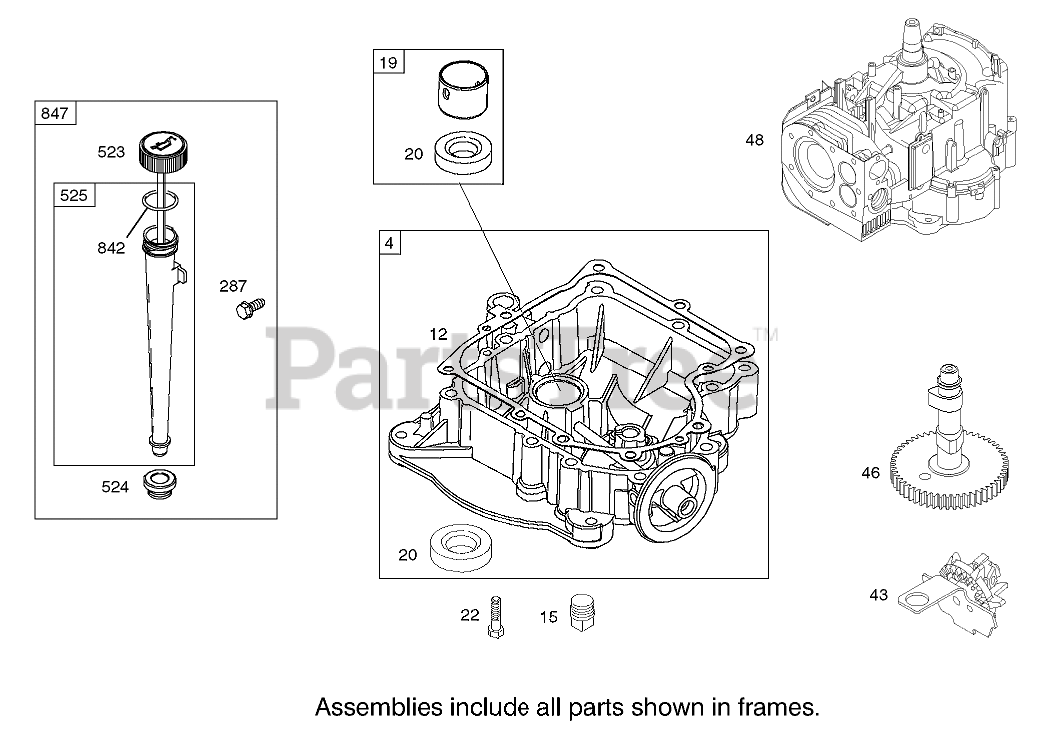

CRANKCASE ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1125-E1 Parts Diagram

  • Title

4

Briggs & Stratton 494238

Base-Engine

$

$

Not available

12

Briggs & Stratton 692226

Crankcase Gasket (.015 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 2 left!

0

Briggs & Stratton 692406

Crankcase Gasket (.005 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 692405

Crankcase Gasket (.009 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

$5.99

$

In Stock, Qty 14

0

19

Briggs & Stratton 490666

Bushing-Sump

$40.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

Screw

$4.99

$

In Stock, only 4 left!

0

43

Briggs & Stratton 691968

Slinger-Governor, Oil

$37.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 692123

Camshaft
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

48

Short Block(Not Available at thistime)

$

$

Not available

287

Briggs & Stratton 691002

Screw (Dipstick Tube)

$8.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 692014

Dipstick

$25.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 691398

Dipstick Tube
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691870

O Ring Seal (Dipstick Tube)

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 496415

Fill Group-Oil
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0
