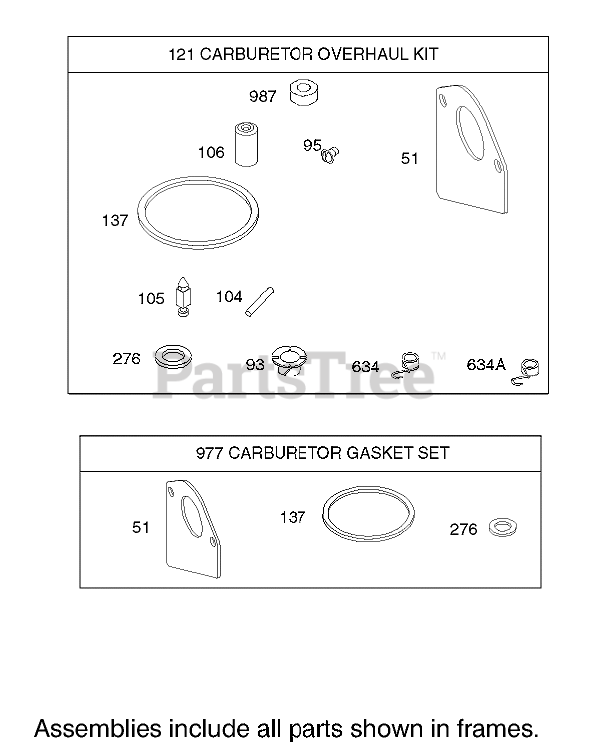

71209 (13-32 XLE) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1125-E1 Parts Diagram

Briggs & Stratton 692284

Note: Included in Carburetor Gasket Set-Ref. 977.

Briggs & Stratton 692284

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 690602

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 691636

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 690525

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 231855

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 690577

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 499220

Briggs & Stratton 695005

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 281165

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 281165

Note: Included in Carburetor Gasket Set-Ref. 977.

Briggs & Stratton 692255

Note: Included in Carburetor Gasket Set-Ref. 977.

Briggs & Stratton 692255

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 690801

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 690802

Note: Included in Carburetor Overhaul Kit-Ref. 121.

Briggs & Stratton 494385

Briggs & Stratton 691326

Note: Included in Carburetor Overhaul Kit-Ref. 121.
