71209 (13-32 XLE) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) FRAME & BODY ASSEMBLY Parts Diagram

Lawn Tractor

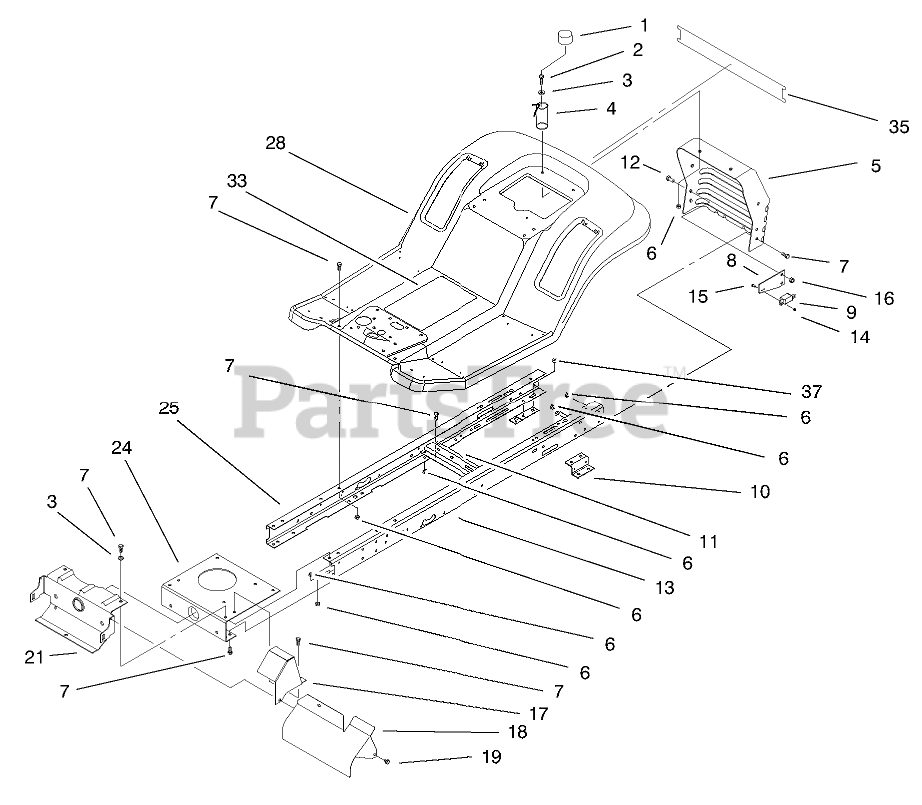

FRAME & BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-6220

SPRING-COMPRESSION

$33.99

$

Usually ships in 3-6 days

0

5

Toro 99-2957-03

SUPPORT-SEAT/REAR HITCH

$183.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 99-2953-03

PLATE-SWITCH

$

$

Not available

9

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

10

Toro 94-1967-03

BRACKET-MOUNTING, TRANSMISSION

$15.99

$

Usually ships in 3-6 days

0

11

Toro 88-4620-03

BRACKET-IDLER PIVOT

$

$

Not available

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

13

Toro 99-2958-03

RAIL-FRAME, LH

$120.99

$

Usually ships in 3-6 days

0

14

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

15

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 88-4960-03

SHIELD-EXHAUST PIPE

$

$

Not available

18

Toro 88-6290-03

SHIELD-MUFFLER

$55.99

$

Usually ships in 3-6 days

0

19

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 98-3575-03

SUPPORT-FRONT, AXLE
(Superseded to 110-8636-03)

$69.99

$

Usually ships in 3-6 days

0

24

Toro 88-4630-03

PLATE-MOUNTING, ENGINE

$

$

Not available

25

Toro 99-2959-03

RAIL-FRAME, RH

$120.99

$

Usually ships in 3-6 days

0

28

Toro 99-2971

REAR BODY ASM

$843.99

$

Usually ships in 3-6 days

0

33

Toro 93-6675

DECAL-GEAR

$

$

Not available

35

Toro 95-0809

DECAL-REAR, BODY

$

$

Not available

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
