71209 (13-32 XLE) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

Lawn Tractor

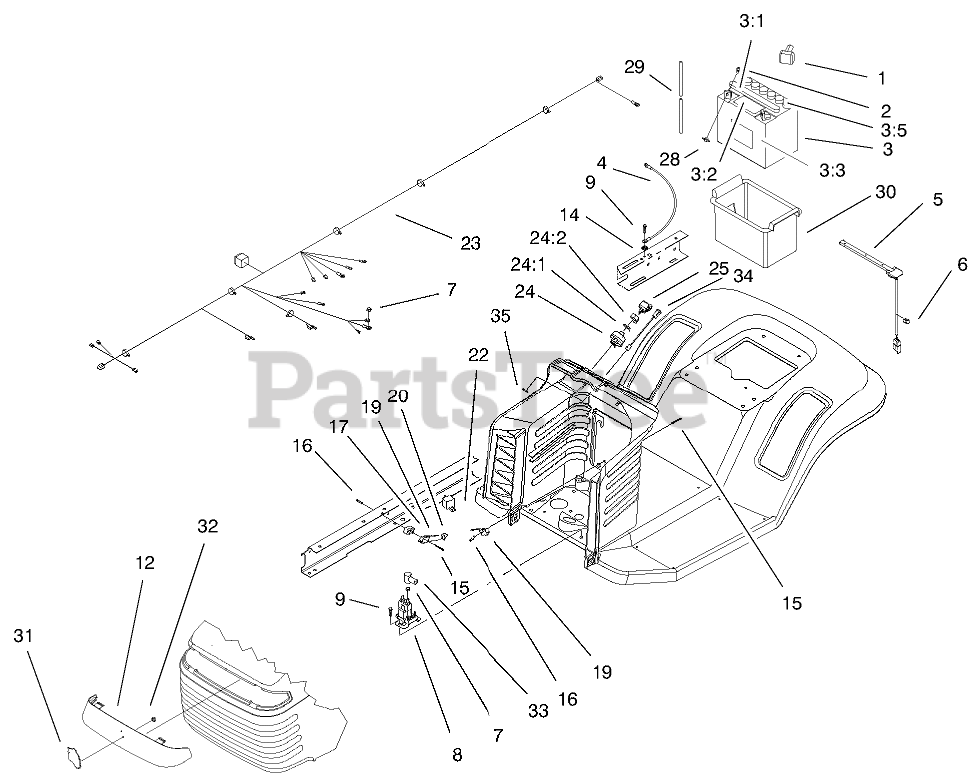

ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

  • Title
1

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 80-2600

Battery
(Superseded to 105-1692)

$

$

Not available

3:1

Toro 93-9354

DECAL - DANGER

$

$

Not available

3:2

Toro 93-7276

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

3:3

Toro 93-6668

DECAL-BATTERY

$20.99

$

Usually ships in 3-6 days

0

3:5

Toro 218-560

CAP-BATTERY

$

$

Not available

4

Toro 44-8110

WIRE ASM

$32.99

$

Usually ships in 3-6 days

0

5

Toro 38-1420

SWITCH-SEAT

$

$

Not available

6

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

7

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

8

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

9

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

12

Toro 88-3960

LENS-HEADLIGHT

$78.99

$

In Stock, only 1 left!

0

14

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

15

Toro 93-0539

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

16

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

17

Toro 88-4880

SPACER

$

$

Not available

19

Toro 88-9932

SWITCH-MICRO

$37.99

$

In Stock, only 2 left!

0

20

Toro 93-3240

PLUNGER-SEAL

$

$

Not available

22

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

23

Toro 99-2978

HARNESS-WIRE

$440.99

$

Usually ships in 3-6 days

0

24

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 6

0

24:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

24:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

25

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

28

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

29

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

30

Toro 88-4040

BOX-BATTERY

$42.99

$

Usually ships in 3-6 days

0

31

Toro 80-2240

EMBLEM-GRILLE WHEELHORSE

$

$

Not available

32

$

$

Not available

33

Toro 94-5362

BOOT-TERMINAL INSULATOR

$4.49

$

In Stock, only 1 left!

0

34

Toro 95-7652

LIGHT-INDICATOR

$49.99

$

Usually ships in 3-6 days

0

35

Toro 99-6059

CLIP-RETAINER
(Superseded to 32151-80)

$1.49

$

In Stock, Qty 7

0
