71208 (13-38 XL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 28M707-0127-01 Parts Diagram

Lawn Tractor

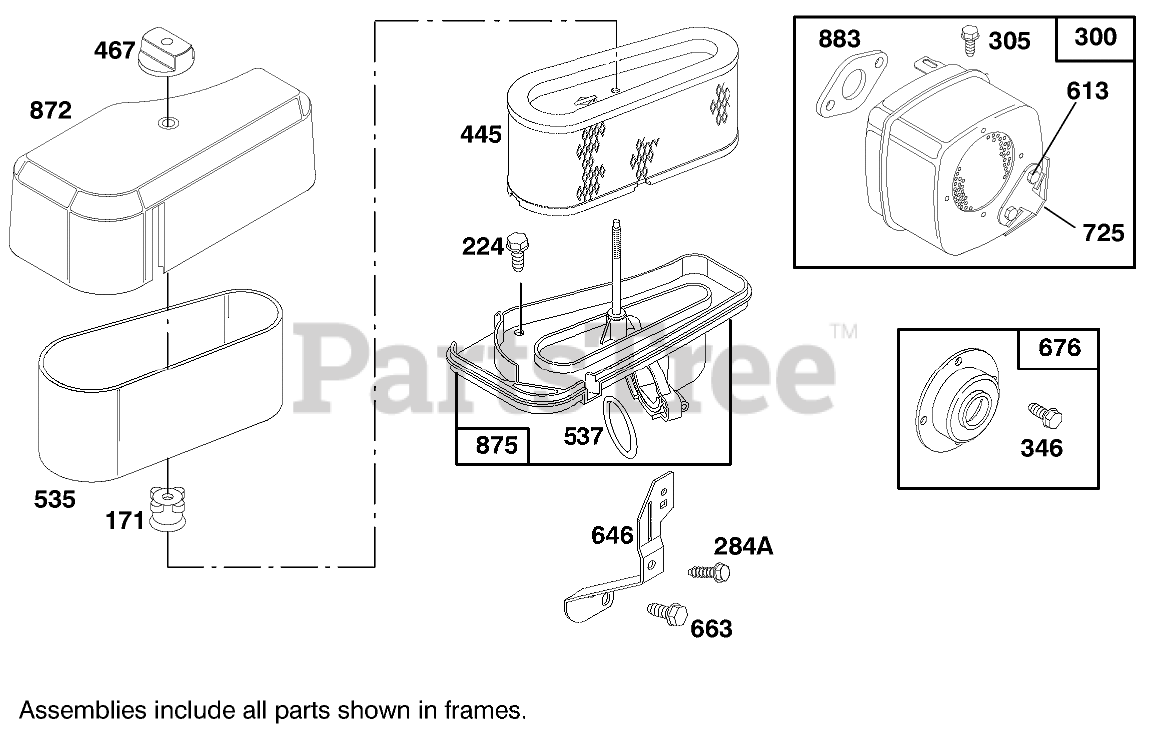

ENGINE BRIGGS & STRATTON MODEL 28M707-0127-01 Parts Diagram

  • Title
121

Briggs & Stratton 495799

Carburetor Kit
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

171

Briggs & Stratton 281051

Nut
(Superseded to 692297)

$10.99

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 94729

Screw-Sem
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

284A

Briggs & Stratton 94704

Screw
(Superseded to 690703)

$3.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 491413

Muffler
(Superseded to 691874)

$57.99

$

In Stock, only 3 left!

0

305

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

445

Briggs & Stratton 496894

Filter-Air
(Superseded to 496894S)

$19.99

$

In Stock, only 3 left!

0

467

Briggs & Stratton 493903

Knob
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

535

Briggs & Stratton 272403

Filter-Air
(Superseded to 272403S)

$3.99

$

In Stock, Qty 18

0

537

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 93927

Screw
(Superseded to 691416)

$11.99

$

In Stock, Qty 14

0

634B

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

Note: Included in Carburetor Kit-Part No. 497535.

$3.99

$

In Stock, only 3 left!

0

646

Briggs & Stratton 224546

Brace-Air Cleaner

$

$

Not available

663

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 9

0

676

Briggs & Stratton 396903

Deflector-Exhaust

$14.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 223023

Shield-Heat
(Superseded to 690420)

$18.99

$

Usually ships in 2-12 days

0

872

Briggs & Stratton 281361

Cover-Air Cleaner
(Superseded to 691332)

$

$

Not available

875

Briggs & Stratton 494237

Base-Air Cleaner
(Superseded to 696129)

$

$

Not available

883

Briggs & Stratton 272293

Exhaust Gasket
(Superseded to 692236)

Note: Included in Gasket Set-Part No. 494241.

$5.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0
