71205 (13-38 XL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor

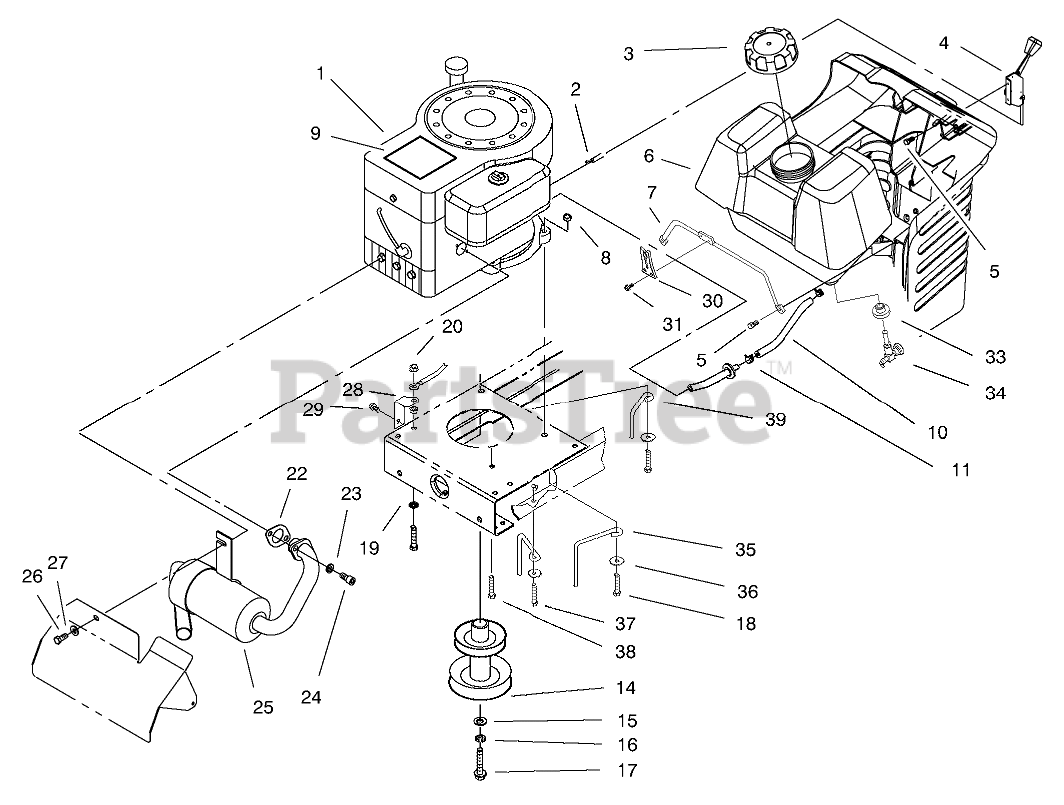

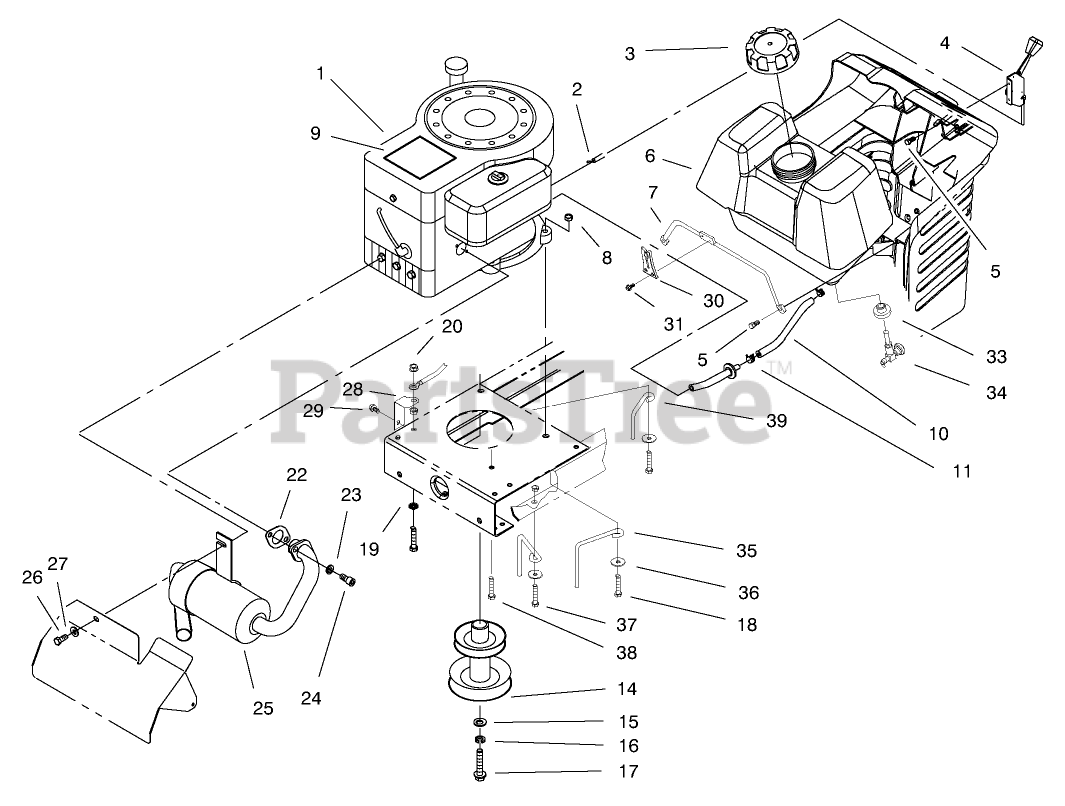

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Engine-13 H.R

$

$

Not available

2

Toro 88-4350

THROTTLE CABLE ASM

$29.99

$

In Stock, only 2 left!

0

3

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

4

Toro 88-4340

THROTTLE CONTROL ASM

$42.99

$

Usually ships in 3-6 days

0

5

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

6

Toro 88-3880

GAS TANK ASM

$224.99

$

In Stock, only 1 left!

0

7

Toro 92-1952

RR OIL SEAL

$93.99

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 92-8757

DECAL - ENGINE

$

$

Not available

10

Toro 47-2963

HOSE-FUEL
(Superseded to 107-9297)

$7.99

$

In Stock, only 2 left!

0

11

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

14

Toro 94-1963

PULLEY-ENGINE ASM

$190.99

$

Usually ships in 3-6 days

0

15

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

17

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

18

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

19

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

20

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

22

Toro 88-4410

GASKET-EXHAUST

$19.99

$

In Stock, Qty 6

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

25

Toro 88-6480

MUFFLER

$386.99

$

Usually ships in 3-6 days

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 93-3809

BRACKET-GROUND

$

$

Not available

29

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

30

Toro 94-1951

LATCH-HOOD

$8.99

$

Usually ships in 3-6 days

0

31

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

33

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

34

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

35

Toro 93-3854

GUIDE-BELT, ENGINE

$15.99

$

Usually ships in 3-6 days

0

36

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

37

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

39

Toro 93-3855

GUIDE-BELT, RH

$15.99

$

Usually ships in 3-6 days

0
