71205 (13-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059999999) (1995) HOUSING & SPINDLE ASSEMBLY (38" CUTTING UNIT) Parts Diagram

Lawn Tractor

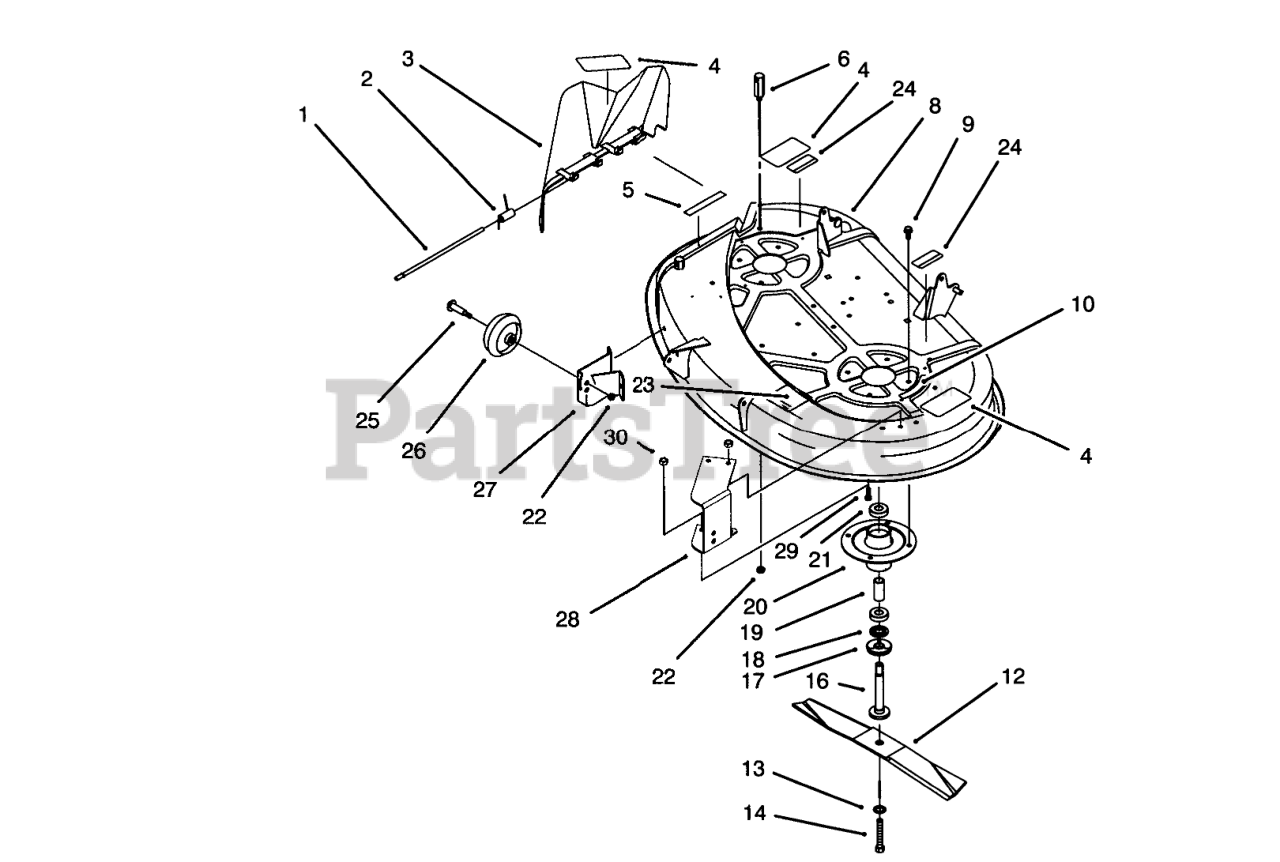

HOUSING & SPINDLE ASSEMBLY (38" CUTTING UNIT) Parts Diagram

  • Title

1

Toro 57-4380

ROD-HINGE DEFLECTOR

$38.99

$

In Stock, only 2 left!

0

2

Toro 57-6950

SPRING

$25.99

$

In Stock, only 1 left!

0

3

Toro 93-7695

Deflector Ass-y (Incl. Ref. #4)

$82.99

$

In Stock, only 2 left!

0

4

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

5

Toro 93-7009

DECAL-DANGER

$6.49

$

In Stock, only 1 left!

0

6

Toro 57-4360

REAR PIVOT POST (PLTD)

$

$

Not available

8

Toro 93-3158-01

Deck-38"
(Superseded to 16-9469)

$964.99

$

Usually ships in 3-6 days

0

9

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Toro 93-6677

DECAL-DANGER, SHIELD

$

$

Not available

12

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$37.99

$

In Stock, only 2 left!

0

13

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

16

Toro 80-4341

SHAFT-SPINDLE

$47.99

$

In Stock, only 1 left!

0

17

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

18

Toro 80-4380

SPACER

$6.49

$

In Stock, Qty 12

0

19

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

20

Toro 88-4510

HOUSING-SPINDLE

$91.99

$

In Stock, Qty 7

0

21

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 93-6679

DECAL-ROUTING, BELT
(Superseded to 117-0033)

$6.49

$

Usually ships in 3-6 days

0

24

Toro 93-6674

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

25

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

26

Toro 701756

WHEEL-GAGE

$7.99

$

In Stock, Qty 14

0

27

Toro 88-5740

Bracket-R.H.
(Superseded to 88-5740-03)

$39.99

$

Usually ships in 3-6 days

0

28

Toro 93-3896

Bracket-L.H.
(Superseded to 93-3896-03)

$58.99

$

Usually ships in 3-6 days

0

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
