71202 (12-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

Lawn Tractor

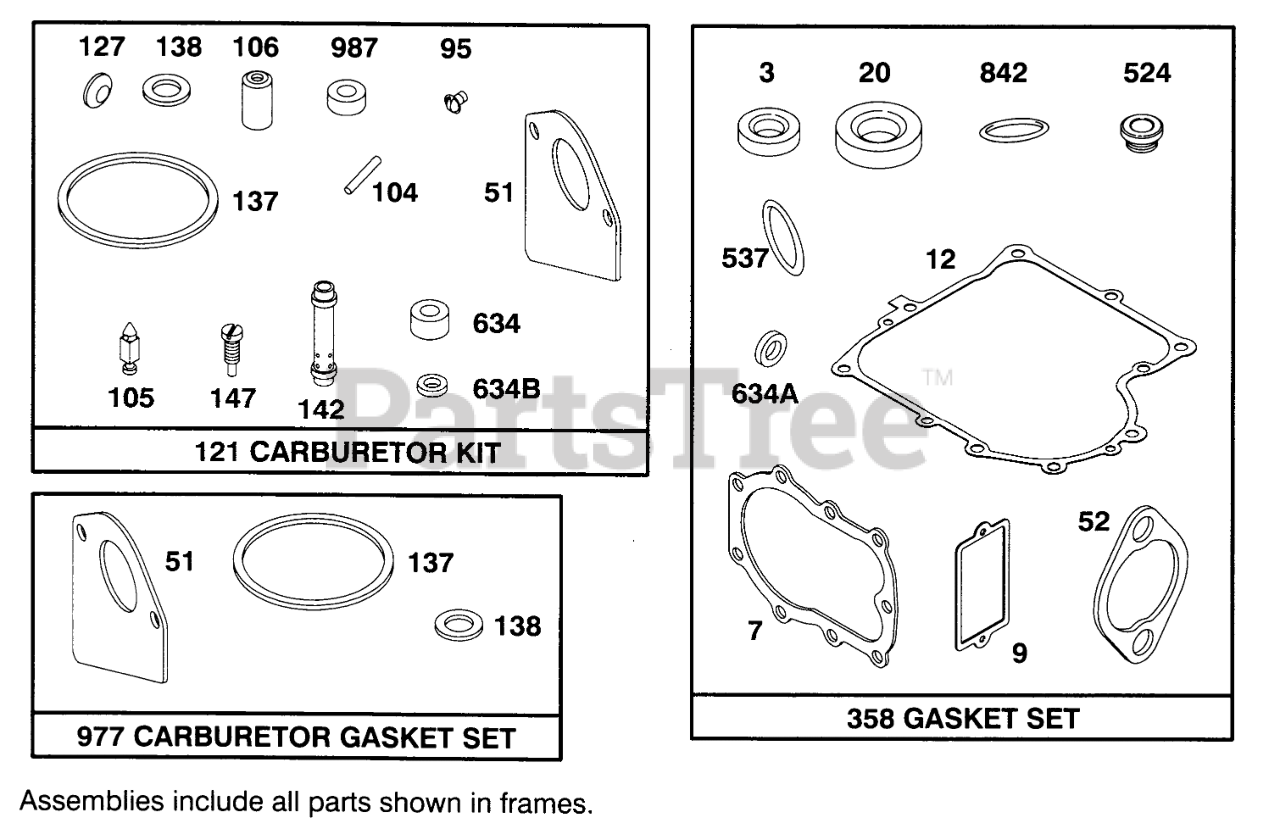

ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 494241.

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Gasket Set-Part No. 494241.

$9.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Gasket Set-Part No. 494241.

$6.99

$

In Stock, only 4 left!

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Gasket Set-Part No. 494241.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Gasket Set-Part No. 494241.

$6.49

$

In Stock, only 1 left!

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Gasket Set-Part No. 494241.

$6.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$4.99

$

In Stock, only 3 left!

0

52

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Gasket Set-Part No. 494241.

$5.49

$

In Stock, only 4 left!

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$3.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$7.99

$

In Stock, Qty 6

0

121

Briggs & Stratton 495799

Carburetor Kit
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 495799.

$

$

Not available

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$5.49

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$5.49

$

In Stock, Qty 20+

0

142

Briggs & Stratton 494537

Noale-Carburetor
(Superseded to 691425)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$29.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231794

Pilot-Jet
(Superseded to 497472)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$22.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 494241

Gasket Set

$39.99

$

In Stock, Qty 8

0

524

Briggs & Stratton 68838

Seal-Fill Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 494241.

$8.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$6.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 494241.

$7.99

$

In Stock, Qty 8

0

634B

Briggs & Stratton 394970

Trigger Coil

Note: Included in Carburetor Gasket Set-Part No. 495799.

$

$

Not available

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 494358

Tank Assembly-Fuel
(Superseded to 497218)

$

$

Not available

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Gasket Set-Part No. 495799.

$5.49

$

Usually ships in 2-12 days
