71202 (12-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059999999) (1995) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

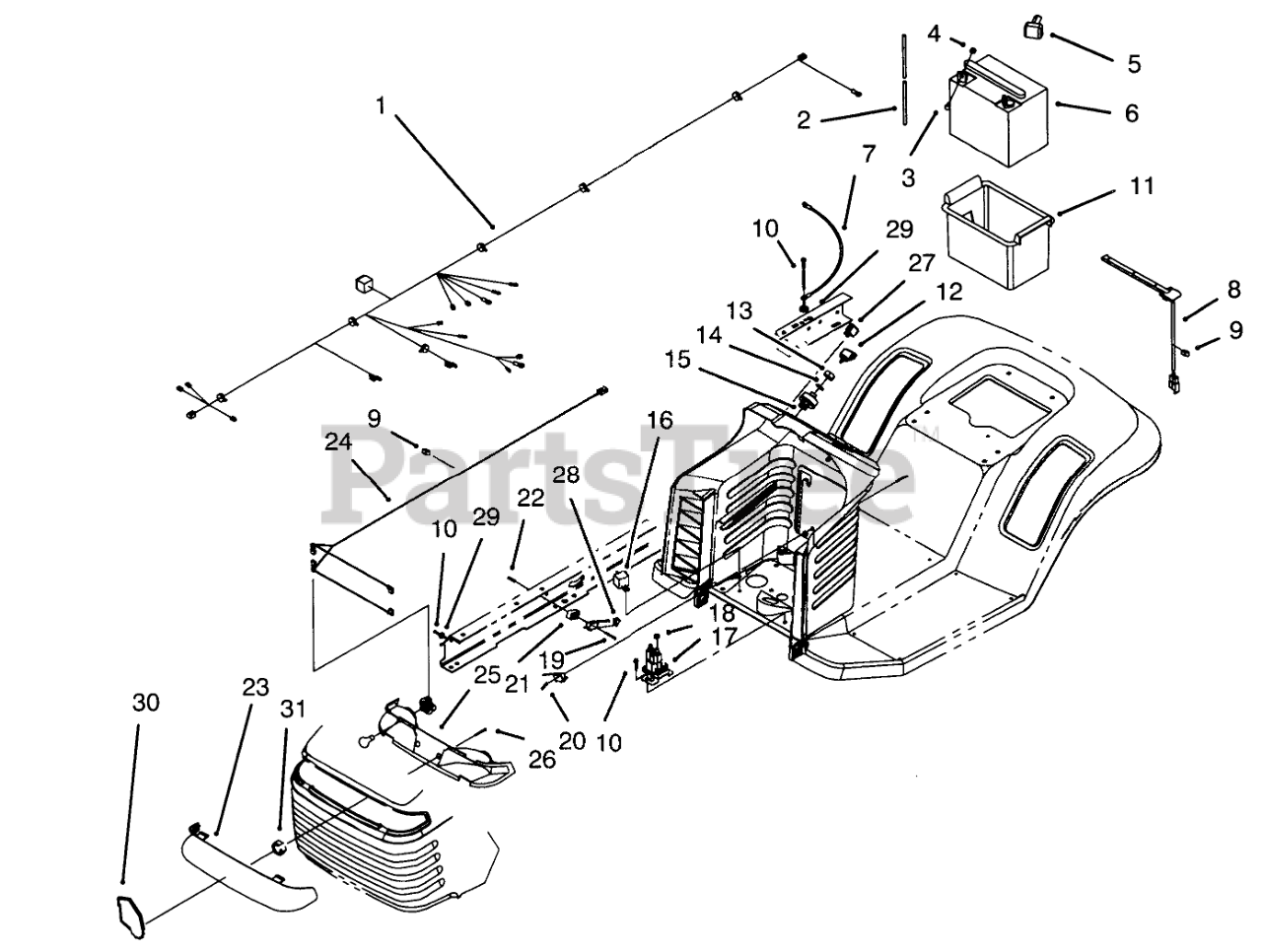

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro 88-4310

Harness-Wire
(Superseded to 93-3810)

$

$

Not available

2

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

5

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

6

Toro 80-2600

Battery
(Superseded to 105-1692)

$

$

Not available

7

Toro 44-8110

WIRE ASM

$32.99

$

Usually ships in 3-6 days

0

8

Toro 38-1420

SWITCH-SEAT

$

$

Not available

9

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 88-4040

BOX-BATTERY

$42.99

$

Usually ships in 3-6 days

0

12

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

13

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

14

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

15

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 6

0

16

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

17

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

18

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

19

Toro 910478

Screw
(Superseded to 9104784)

$1.99

$

Usually ships in 3-6 days

0

20

Toro 88-9932

SWITCH-MICRO

$37.99

$

In Stock, only 2 left!

0

21

Toro 88-4880

SPACER

$

$

Not available

22

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

23

Toro 88-3960

LENS-HEADLIGHT

$78.99

$

In Stock, only 1 left!

0

24

Toro 88-4320

HARNESS-WIRE, LIGHTS

$76.99

$

Usually ships in 3-6 days

0

25

Toro 88-3970

HEADLIGHT REFLECTOR ASM

$179.99

$

Usually ships in 3-6 days

0

26

$2.99

$

Usually ships in 3-6 days

0

27

Toro 92-8875

SWITCH-ROCKER

$17.99

$

In Stock, only 1 left!

0

28

Toro 93-3240

PLUNGER-SEAL

$

$

Not available

29

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

30

Toro 80-2240

EMBLEM-GRILLE WHEELHORSE

$

$

Not available

31

$

$

Not available
