71202 (12-38 XL) - Toro Lawn Tractor (SN: 039000001 - 039999999) (1993) TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

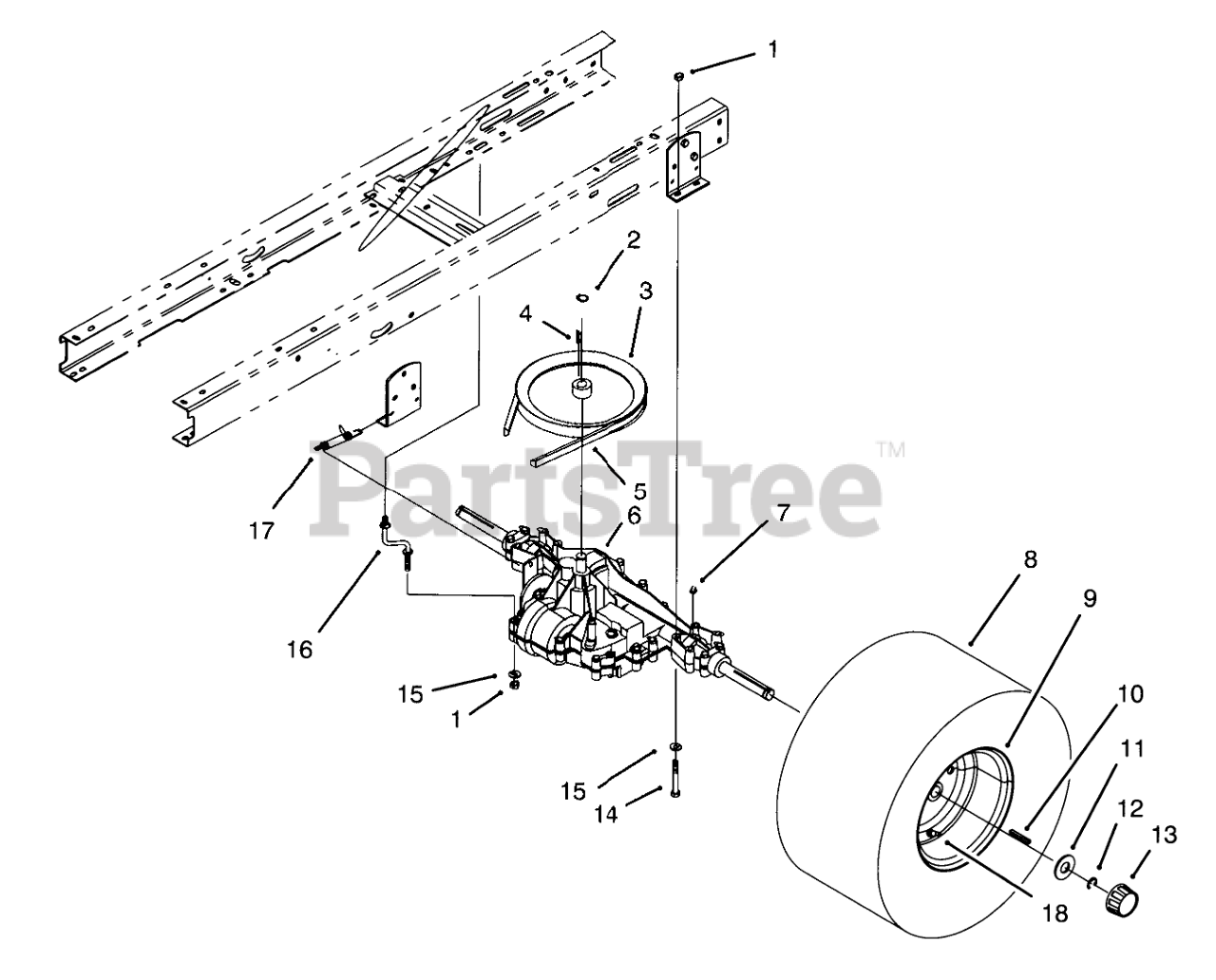

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

3

Toro 88-4840

PULLEY-TRANSMISSION

$168.99

$

In Stock, only 1 left!

0

4

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

5

Toro 88-6240

V-BELT

$81.99

$

Usually ships in 3-6 days

0

6

Toro 88-6450

Transaxle

$

$

Not available

7

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

8

Toro 88-4090

TIRE 18 X 9.50 X 8

$

$

Not available

9

Toro 88-4390

RIM

$215.99

$

Usually ships in 3-6 days

0

10

Toro 7-0036

KEY-SQUARE

$

$

Not available

11

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

12

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

13

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

14

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 88-5350

TORQUE STRAP

$49.99

$

Usually ships in 3-6 days

0

17

Toro 26-6701

SPRING-RETURN, BRAKE

$25.99

$

Usually ships in 3-6 days

0

18

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

Toro 232-41

Tube
(Superseded to 232-37)

Note: Not illustrated

$33.99

$

In Stock, only 1 left!

0

Toro 88-4300

Wheel & Tire Assembly (Incl. Ref. #8 & 9)

Note: Not illustrated

$

$

Not available
