71202 (12-38 XL) - Toro Lawn Tractor (SN: 039000001 - 039999999) (1993) HEIGHT OF CUT ASSEMBLY Parts Diagram

Lawn Tractor

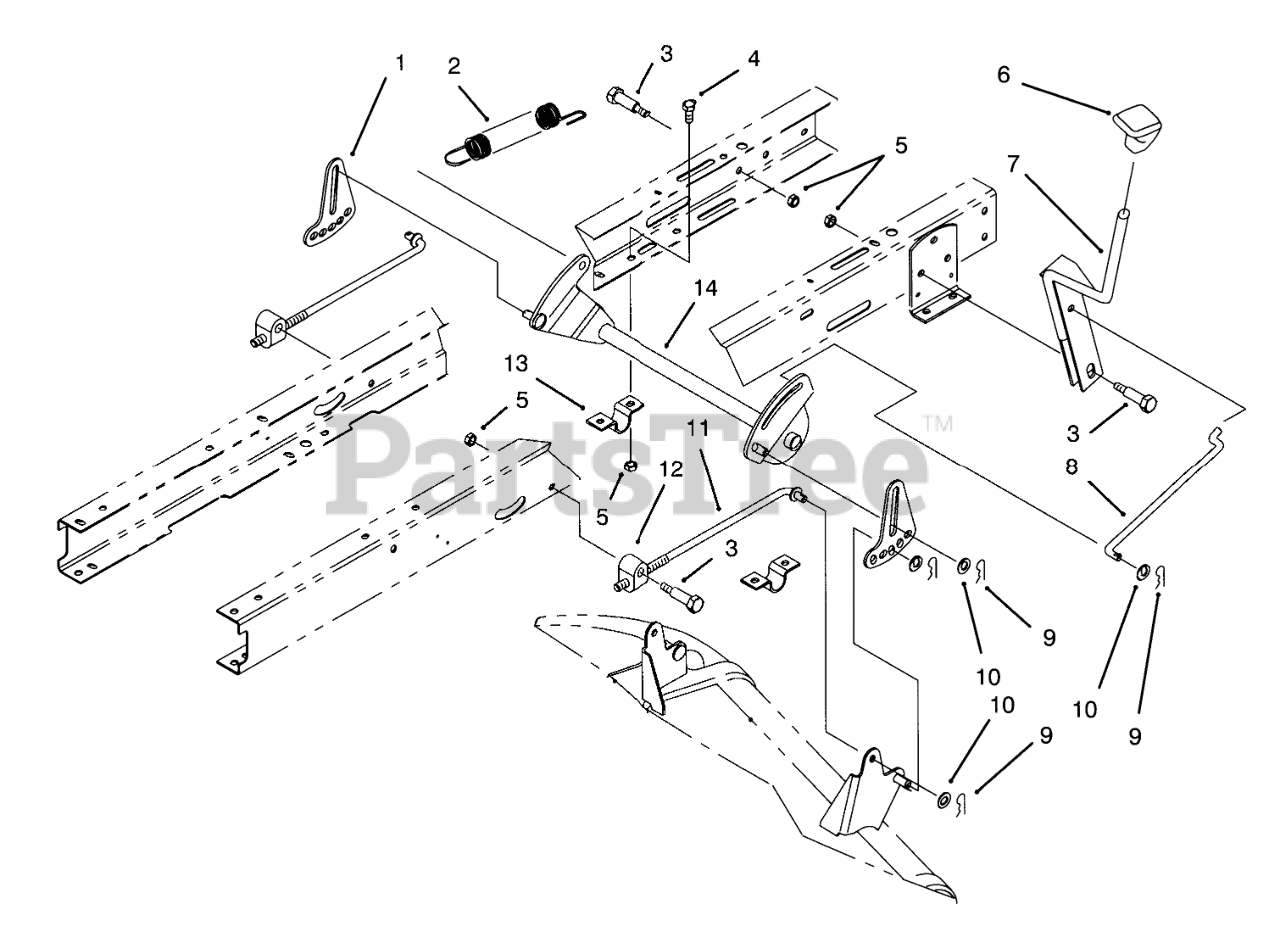

HEIGHT OF CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 88-5570

Link-Adjusting H.O.C
(Superseded to 88-5570-03)

$15.99

$

Usually ships in 3-6 days

0

2

Toro 88-6460

SPRING-EXTENSION

$55.99

$

Usually ships in 3-6 days

0

3

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 62-1292

SHIFT KNOB

$

$

Not available

7

Toro 88-5310

Lever-H.O.C.
(Superseded to 99-5817)

$

$

Not available

8

Toro 88-5900

LINK-HOC

$

$

Not available

9

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 88-5450

ROD-HANGER, REAR

$59.99

$

In Stock, only 1 left!

0

12

Toro 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

13

Toro 88-4730

CLAMP-PIVOT, HOC

$5.99

$

Usually ships in 3-6 days

0

14

Toro 88-5110

Pivot-H.O.C.
(Superseded to 88-5110-03)

$155.99

$

Usually ships in 3-6 days

0
