71202 (12-38 XL) - Toro Lawn Tractor (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 283707-0156-01 Parts Diagram

Lawn Tractor

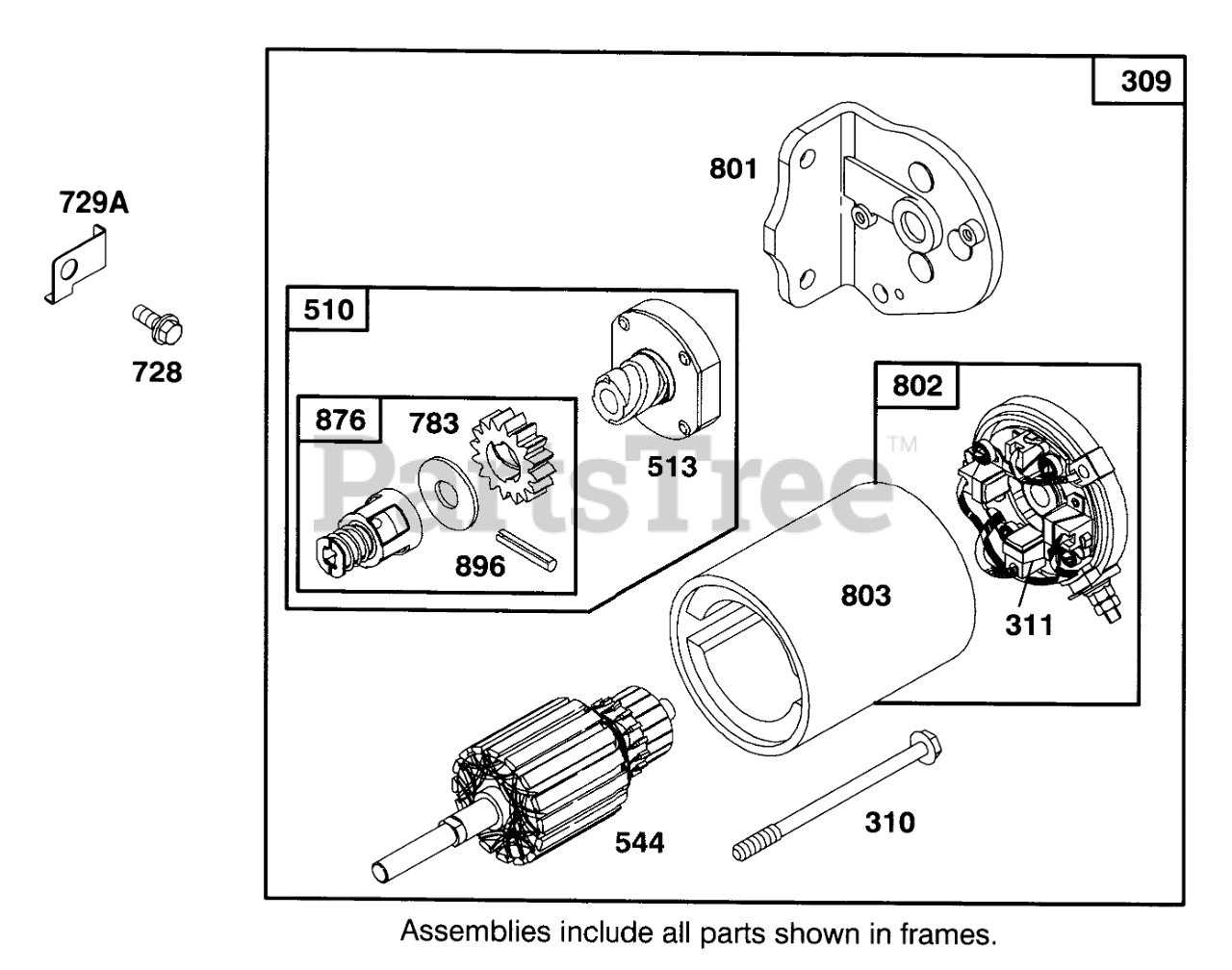

ENGINE BRIGGS & STRATTON MODEL 283707-0156-01 Parts Diagram

  • Title

5

Toro 1272465

Gasket-Carburetor (Carb to Elbow)

Note: Included in Carburetor Gasket Set-Part No.494385.

$

$

Currently unavailable

309

Briggs & Stratton 394805

Motor-Starter
(Superseded to 497595)

$110.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94003

Bolt
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 395538

Brush Set

$24.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 490421

Drive Assy.
(Superseded to 696540)

$29.99

$

In Stock, Qty 19

0

513

Briggs & Stratton 398003

Clutch ASM
(Superseded to 692024)

$21.99

$

In Stock, only 3 left!

0

544

Briggs & Stratton 390837

Armature-Starter

$159.99

$

In Stock, only 1 left!

0

728

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

729A

Briggs & Stratton 224723

Retainer-Wire

$5.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.99

$

In Stock, only 4 left!

0

801

Briggs & Stratton 394856

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 395537

Cap-End

$54.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 398159

Housing-Starter

$80.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 490467

Gear Kit
(Superseded to 696540)

$29.99

$

In Stock, Qty 19

0

896

Briggs & Stratton 94288

Gear
(Superseded to 691641)

$4.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0
