71202 (12-38 XL) - Toro Lawn Tractor (SN: 039000001 - 039999999) (1993) BRAKE ASSEMBLY (38" CUTTING UNIT) Parts Diagram

Lawn Tractor

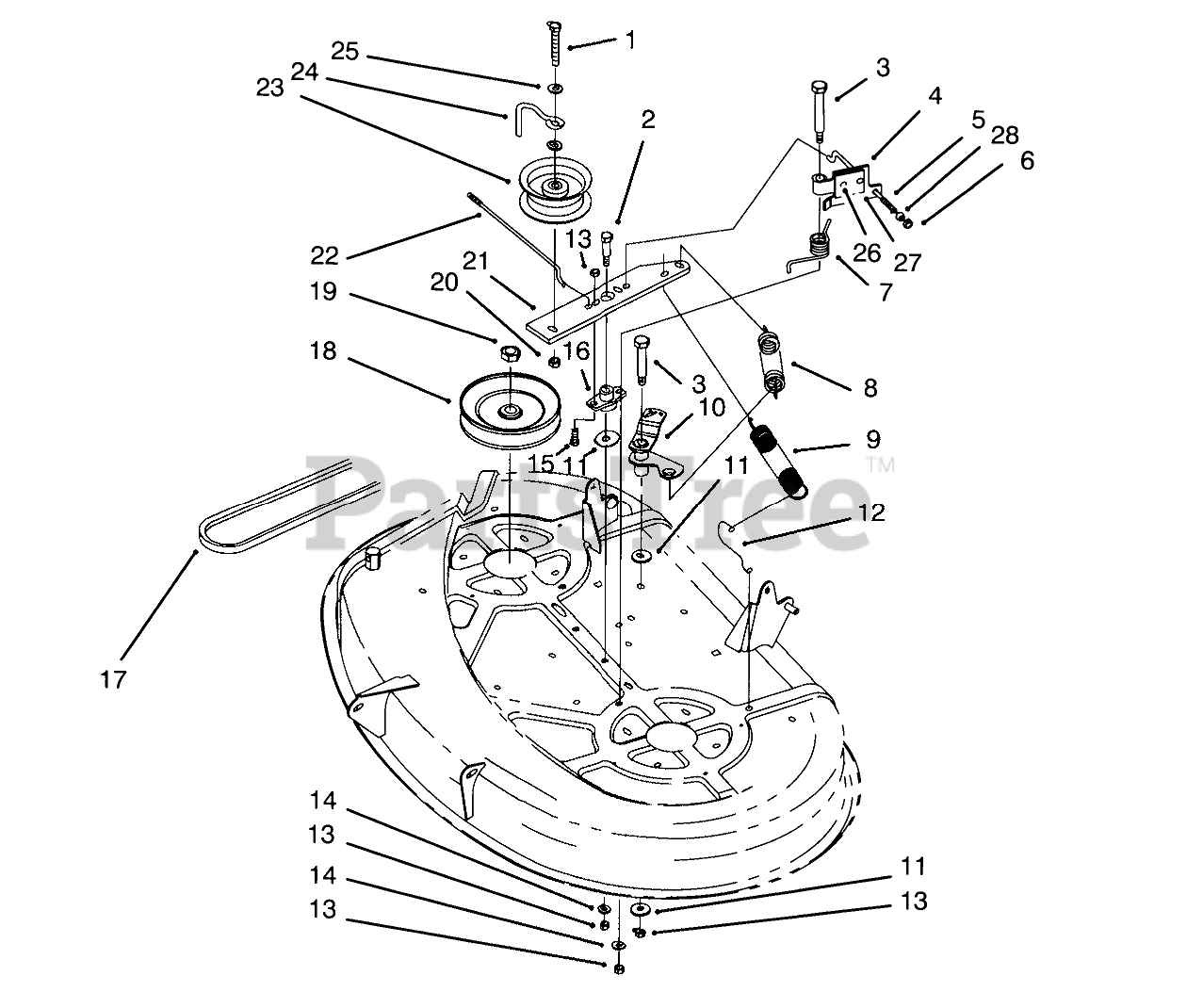

BRAKE ASSEMBLY (38" CUTTING UNIT) Parts Diagram

  • Title
1

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

2

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

3

Toro 88-4590

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

4

Toro 88-6100

Brake-Deck (Incl. Ref. #26 & 27)

$64.99

$

In Stock, only 3 left!

0

5

Toro 88-5550

ROD-BRAKE, DECK LH

$19.99

$

Usually ships in 3-6 days

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

7

Toro 88-5910

SPRING-TORSION

$33.99

$

Usually ships in 3-6 days

0

8

Toro 88-6130

SPRING-DECK, ENGAGEMENT

$13.99

$

In Stock, only 1 left!

0

9

Toro 88-6330

SPRING-EXTENSION

$9.49

$

Usually ships in 3-6 days

0

10

Toro 88-5390

Bellcrank
(Superseded to 88-5390-03)

$138.99

$

Usually ships in 3-6 days

0

11

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

12

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 8

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 88-4980

BUSHING-ARM, IDLER

$16.99

$

In Stock, only 4 left!

0

17

Toro 88-6250

BELT-V

$51.99

$

In Stock, only 4 left!

0

18

Toro 88-5330

PULLEY

$122.99

$

In Stock, only 2 left!

0

19

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

21

Toro 88-4870

Arm-Idler
(Superseded to 88-4870-03)

$58.99

$

Usually ships in 3-6 days

0

22

Toro 88-5540

ROD-BRAKE, DECK RH

$19.99

$

Usually ships in 3-6 days

0

23

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 1 left!

0

24

Toro 88-5070

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 5

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

26

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

27

Toro 56-9830

PAD-BRAKE

$33.99

$

Usually ships in 3-6 days

0

28

Toro 67-0710

BALL-SWIVEL, STOP

$4.49

$

In Stock, only 2 left!

0
