71201 (12-32 XL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram
Lawn Tractor

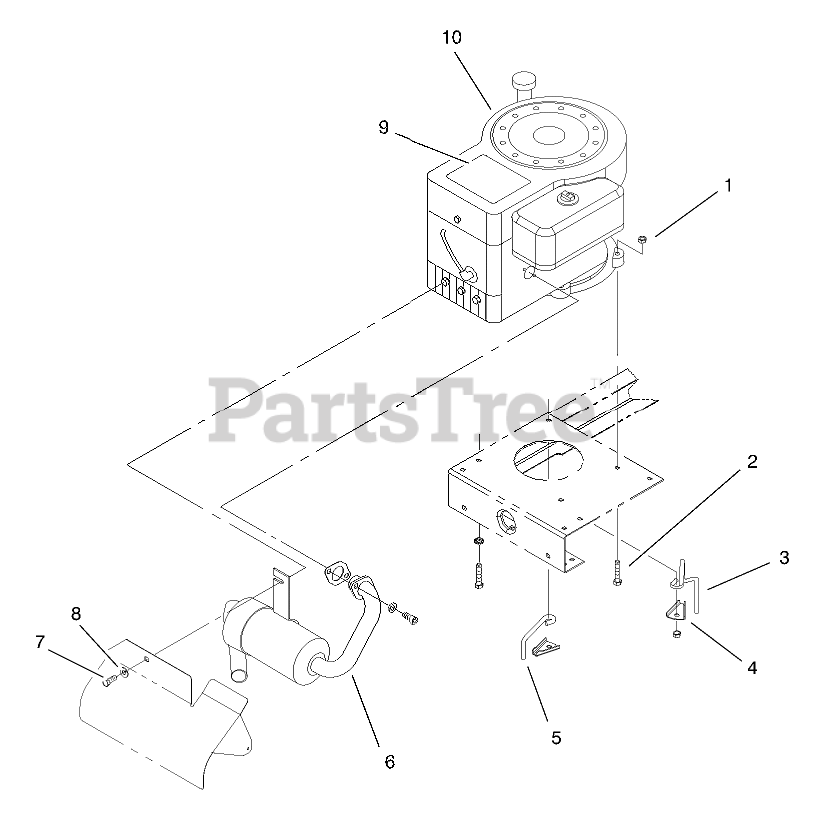

ENGINE ASSEMBLY Parts Diagram
Toro 3296-29
NUT-LOCK, NI
$2.49
$
In Stock, Qty 20+
Toro 322-9
SCREW-HH
$3.49
$
In Stock, only 3 left!
Toro 88-6060
GUIDE-BELT, LH
$23.99
$
Usually ships in 3-6 days
Toro 76-3820
ANCHOR-GUIDE, BELT
$2.49
$
Usually ships in 3-6 days
Toro 88-5490
GUIDE-BELT, RH
$19.99
$
Usually ships in 3-6 days
Toro 88-6480
MUFFLER
$386.99
$
Usually ships in 3-6 days
Toro 321-4
SCREW-HH
$1.49
$
In Stock, Qty 20+
Toro 3253-3
WASHER-LOCK
$0.99
$
In Stock, Qty 20+
Toro 92-2482
DECAL - ENGINE
$
$
Not available
10
Engine-12 Hp B&S I/C
$
$
Not available
